EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
I
mage shown may differ from your TV.
1. How to connect
1

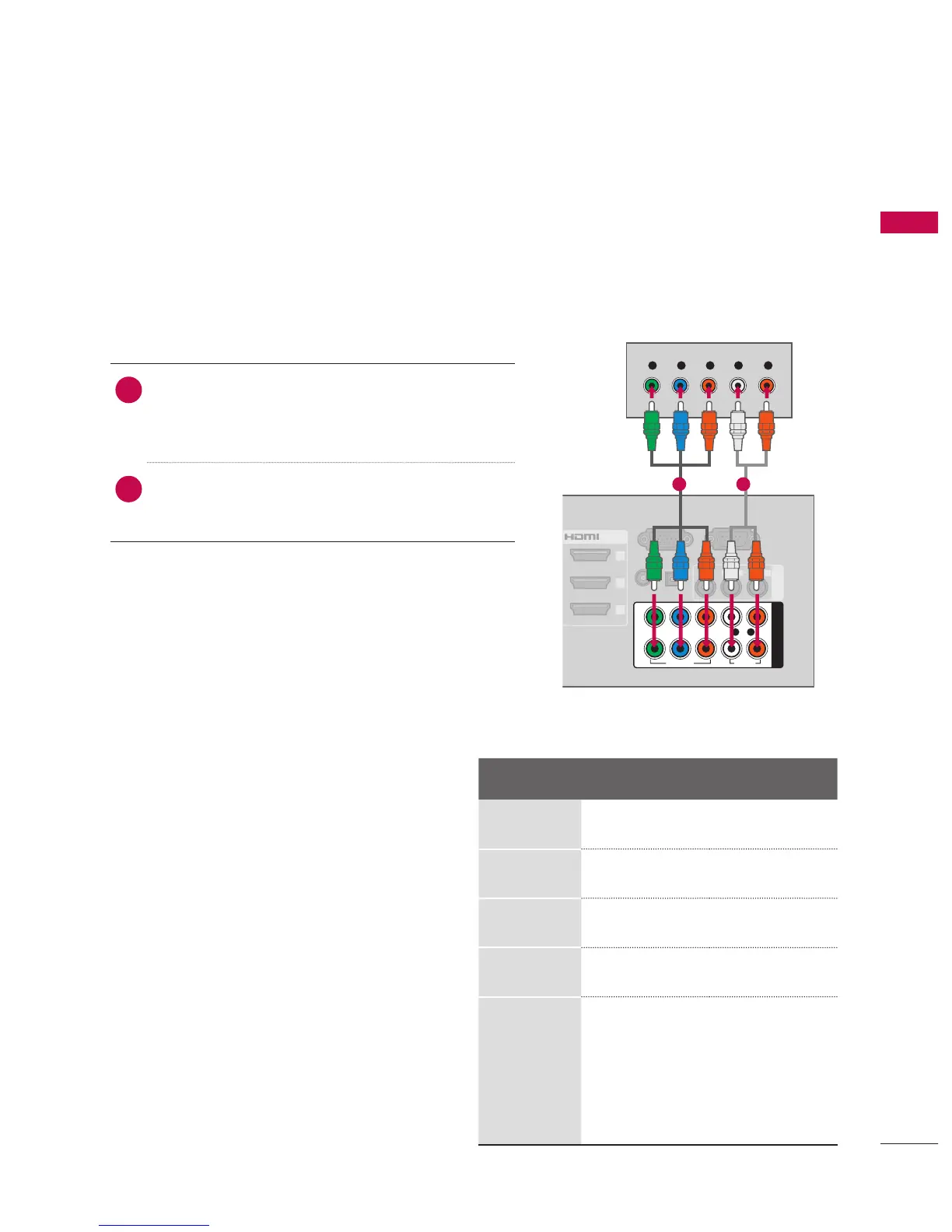

Connect the video outputs
(
Y, PB, PR
)
of the
digital set-top box to the COMPONENT IN
VIDEO 1, 2, or 3* jacks on the TV. Match the
jack colors (Y = green, PB = blue, and PR = red).
2
Connect the audio output of the digital set-top
box to the COMPONENT IN AUDIO 1, 2, or 3*
jacks on the TV.
2. How to use
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box operation.
)
Select the Component1, Component2, or
Component3 input source on the TV using the
INPUT button on the remote control.
Component Connection
This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.
However, if you do receive digital signals from a digital set-top box or other digital external device.
