EXTERNAL EQUIPMENT SETUP
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player
to the component input ports as shown below.

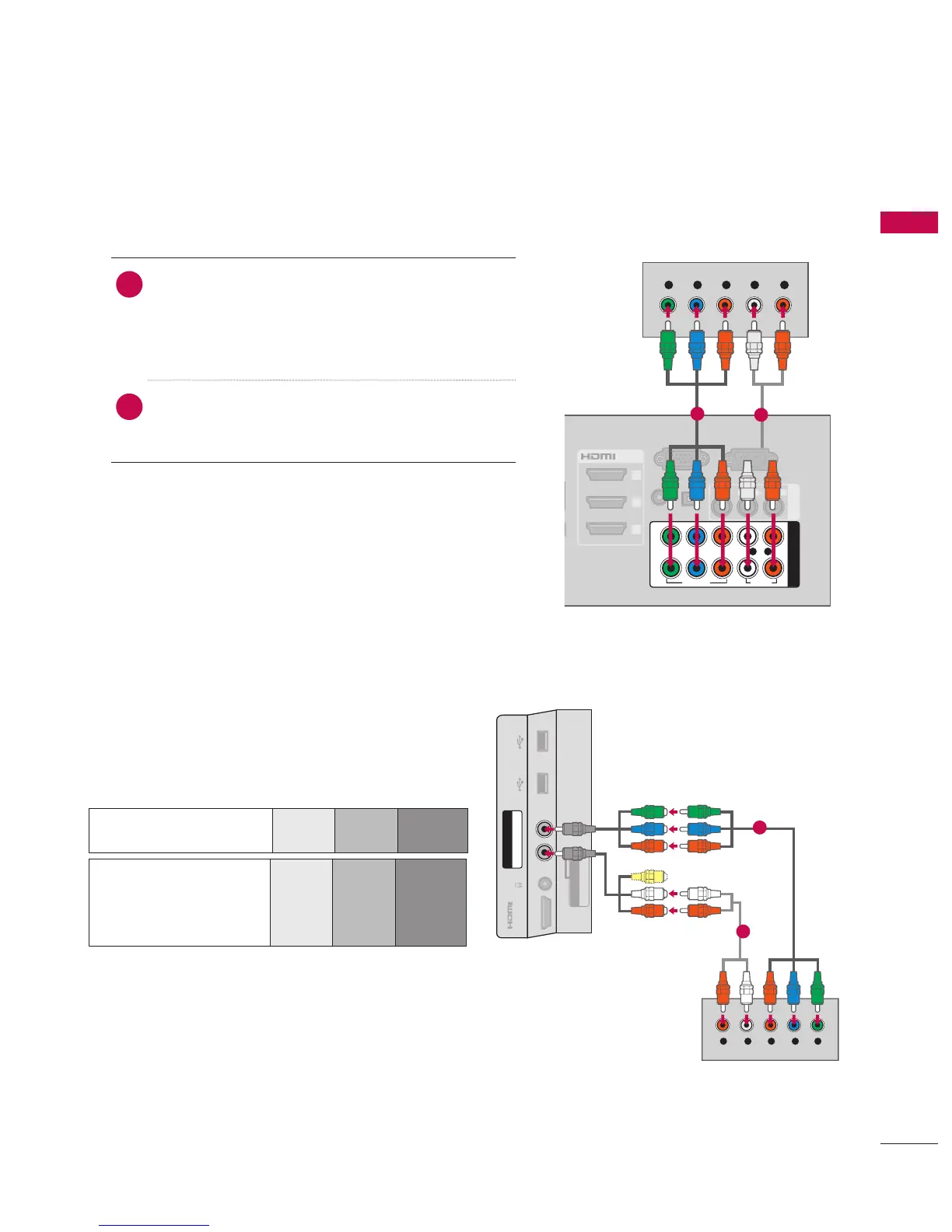

1. How to connect
1
Connect the video outputs
(
Y, PB, PR
)
of the
DVD to the COMPONENT IN VIDEO 1, 2, or 3*
jacks on the TV.
Match the jack colors
(
Y = green, PB = blue, and
PR = red
)
.
2
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO 1, 2, or 3* jacks on the
TV.
2. How to use
Turn on the DVD player, insert a DVD.
Select the Component1, Component2, or
Component3 input source on the TV using the
INPUT button on the remote control.
Refer to the DVD player’s manual for operating
instructions.
