Reference: External Stereo Speaker Specications
The SPEAKER OUT 3.5 mm stereo jack on the EU960H rear panel provides stereo speaker signal outputs
(xed speaker, variable speaker, or xed line level [amplier]) for external audio equipment. Set Installer
Menu item 097 AUDIO OUTPUT as required in accordance with external audio equipment connected to
the TV. Also, refer to the following diagram for pinout details.
Caution: Do NOT insert a mono plug, as this may damage the TV.

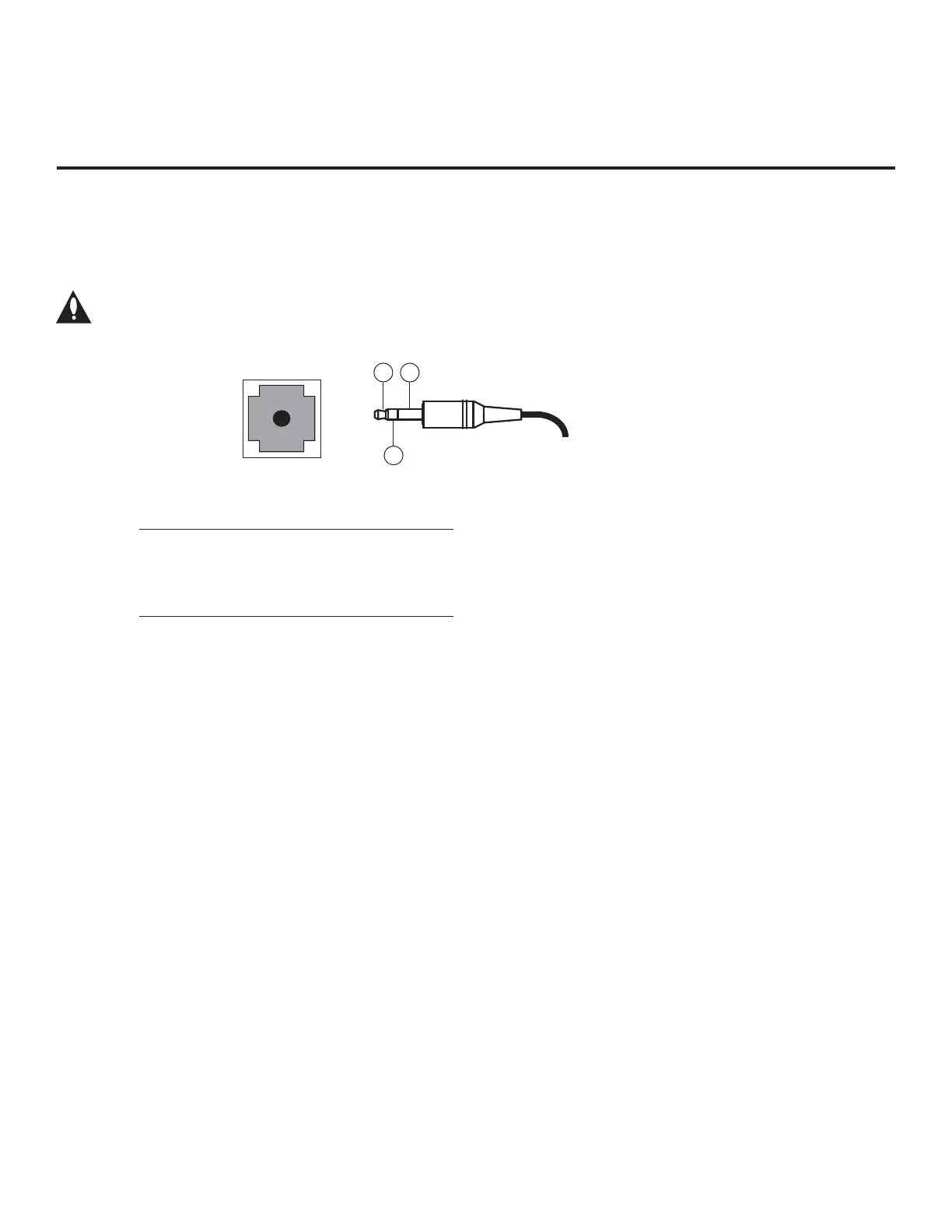

1 LEFT (Tip)
2 RIGHT (Ring)
3 GROUND (Sleeve)
SPEAKER OUT
LINE OUT
1
3
2
