CONNECTING EXTERNAL DEVICES
Connecting PC
The projector supports Plug &
Play. Your PC will automatically
detect the projector and requires
no driver installation.

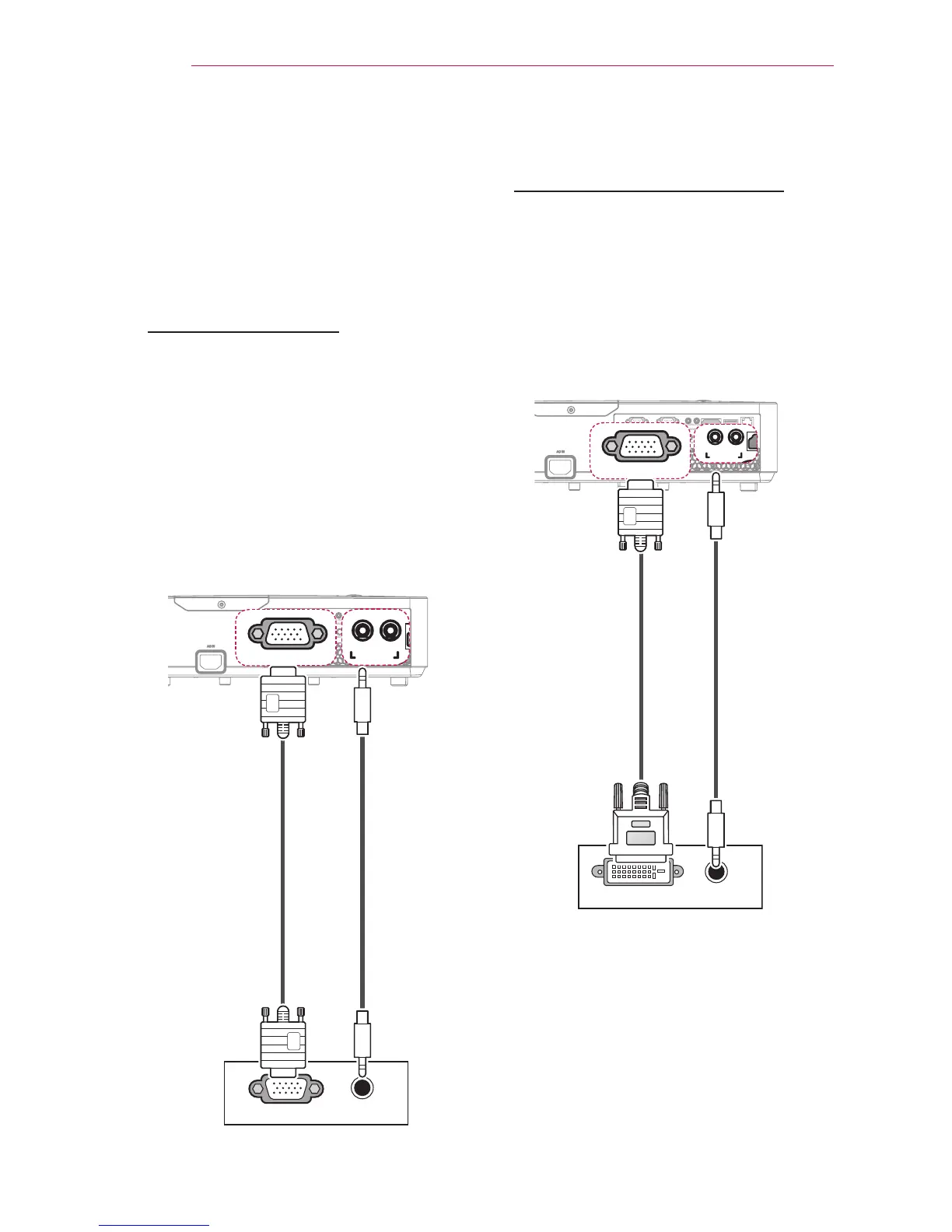

RGB Connection
Connect the PC output and the PC
video input port of the projector with
the RGB cable.
Connect the RGB IN 1 connector or
RGB IN 2 connector of a projector to
the RBG output connector.
To output the audio, connect the PC
to the projector using an optional
audio cable.
RGB IN 1
RGB IN 2
RGB OUT
RS 232C
LAN
USB
AUDIO OUT
VIDEOR-AUDIO-L
(PC1/DVI) (PC2)
AUDIO IN
HDMI/DVI
RGB IN 1
RGB IN 2
RGB OUT
RS 232C
LAN
USB
AUDIO OUT
VIDEOR-AUDIO-L
(PC1/DVI) (PC2)
AUDIO IN
HDMI/DVI
$8',22875*%2873&
RGB IN 1
RGB IN 2
RGB OUT
RS 232C
LAN
USB
AUDIO OUT
VIDEOR-AUDIO-L
(PC1/DVI) (PC2)
AUDIO IN
HDMI/DVI
RGB to DVI Connection
Connect the RGB IN 1 connector
or RGB IN 2 connector of a projec-
tor to the DVI output connector.
To output the audio, connect the
PC to the projector using an op-
tional audio cable.
