ONE POINT REPAIR GUIDE

3. NO BOOTING WHEN POWER ON THE SET

The set doesn’t work when press the power button on the FRONT board or the remote control.

3-1. IC501

3-1-1. Solution

Replace IC501 on MAIN board.

3-1-2. How to troubleshoot (Countermeasure)

1) Check the 5.6 VA (CN106) and DVCC 3.3 V (IC505) in standby mode.

 If there is no 5.6 VA, check the SMPS and if doesn’t appear 3.3 V, check IC505.

2) Check 5.6 VA, +12 V, DVCC_5 and VCC_3.3V when power on the set.

 If the set doesn’t work regardless of what the KEY1 changes HIGH to LOW.

while pressing the power button. X500 and X501 work normally but, if you can not power on the set,

replace the IC501 with a new one on the MAIN board.

3-1-3. Service hint (Any picture/ Remark)

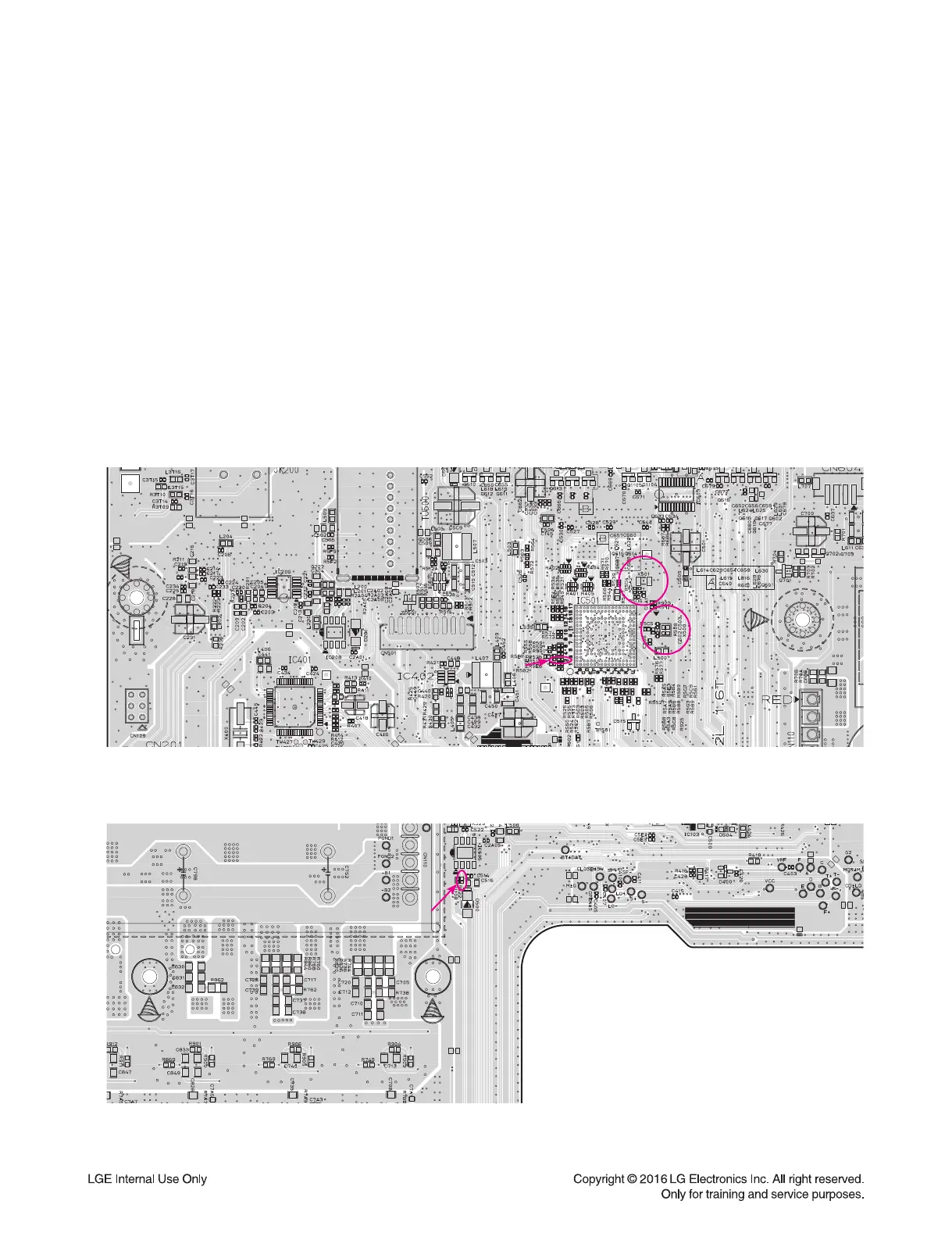

< MAIN board top view >

< MAIN board bottom view >

X500

(24 MHz)

X501

(32.768 kHz)

KEY2

(R526)

PWR_CTRL

R522
