3-8

ONE POINT REPAIR GUIDE

7. SPEAKER NO AUDIO

Speaker no audio.

7-1. AMP IC (IC700, IC701, IC705)

7-1-1. Solution

Replace IC700, IC701, IC705 on MAIN board.

7-1-2. How to troubleshoot (Countermeasure)

1) Check supply voltage of AMP (CN110) & PWM signal.

Normal supply voltage and signal  Check AMP IC.

Poor supply voltage  Check SMPS.

Poor signal  Check PWM IC.

2) Check CSD of FET driver IC (IRS2092 : EAN60778301).

CSD has about 5 V on normal state.

When AMP has problem, CSD is LOW state or keep change LOW to HIGH.

7-1-3. Service hint (Any picture/ Remark)

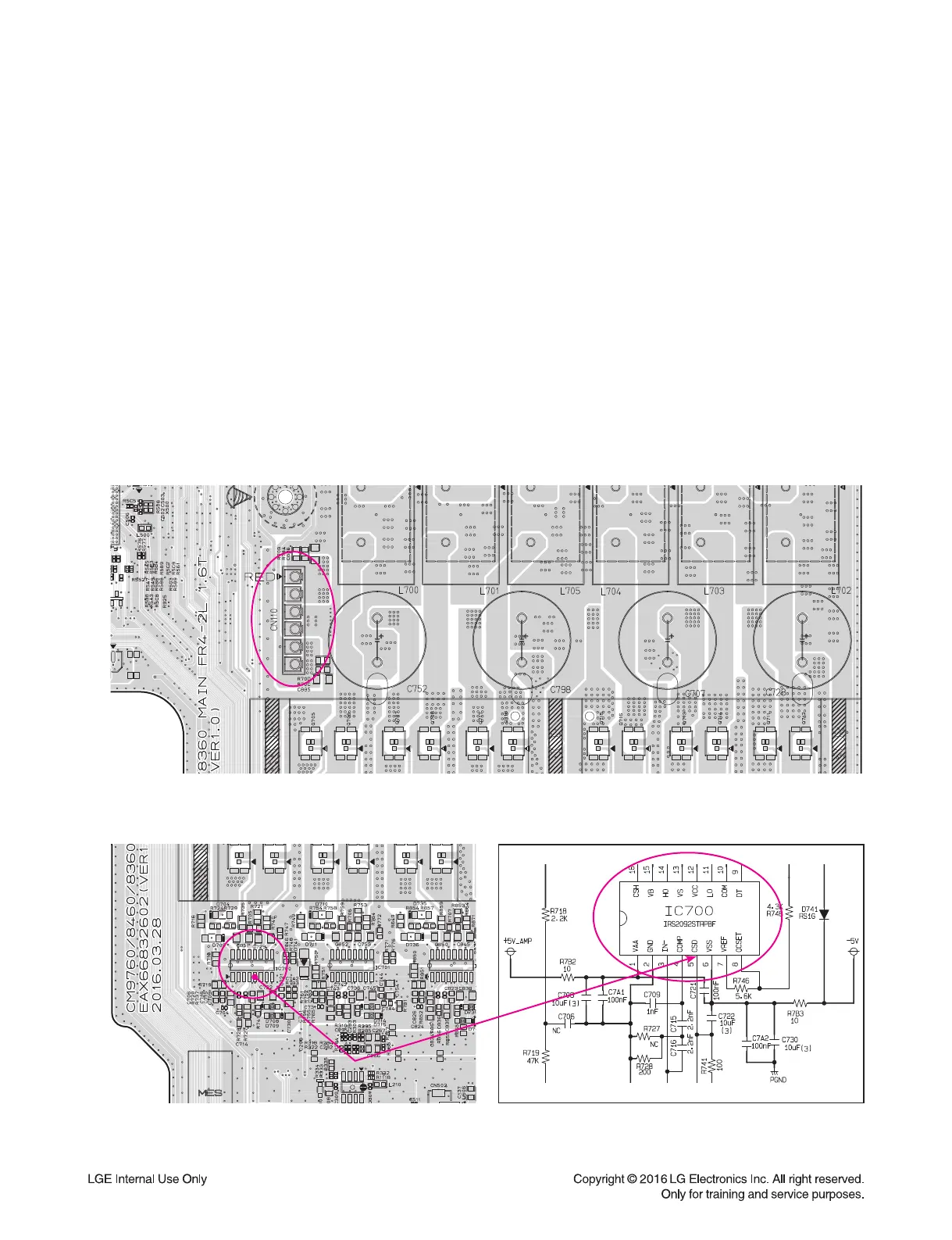

< MAIN board top view >

< MAIN board top view > < MAIN - AMP circuit >

CN110

pin1, 2 : +66 V

pin3, 4 : PGND

pin5, 6 : -66 V

pin5 of IC700



CSD
