ONE POINT REPAIR GUIDE
10. NO SOUND
There is no sound output in the USB function, repair the set according to the following
guide.
10-1. USB FUNCTION
10-1-1. Solution
Replace IC501 on MAIN board, ICA201 on FRONT board.
10-1-2. How to troubleshoot (Countermeasure)
1) Check +5 VU to FRONT board.
If +5.6 VA to pin1 of ICA201 (LDO) doesn’t come out, check pin7, pin8 of CN106.
If +5.6 VA is normal & +5 VU of ICA201 pin3 doesn’t come out, then replace ICA201.
2) Check “Digital audio AMP block”.
10-1-3. Service hint (Any picture/ Remark)
D
D-
USB D-/ D+ (CN502 pin5, pin6, pin8, pin9)

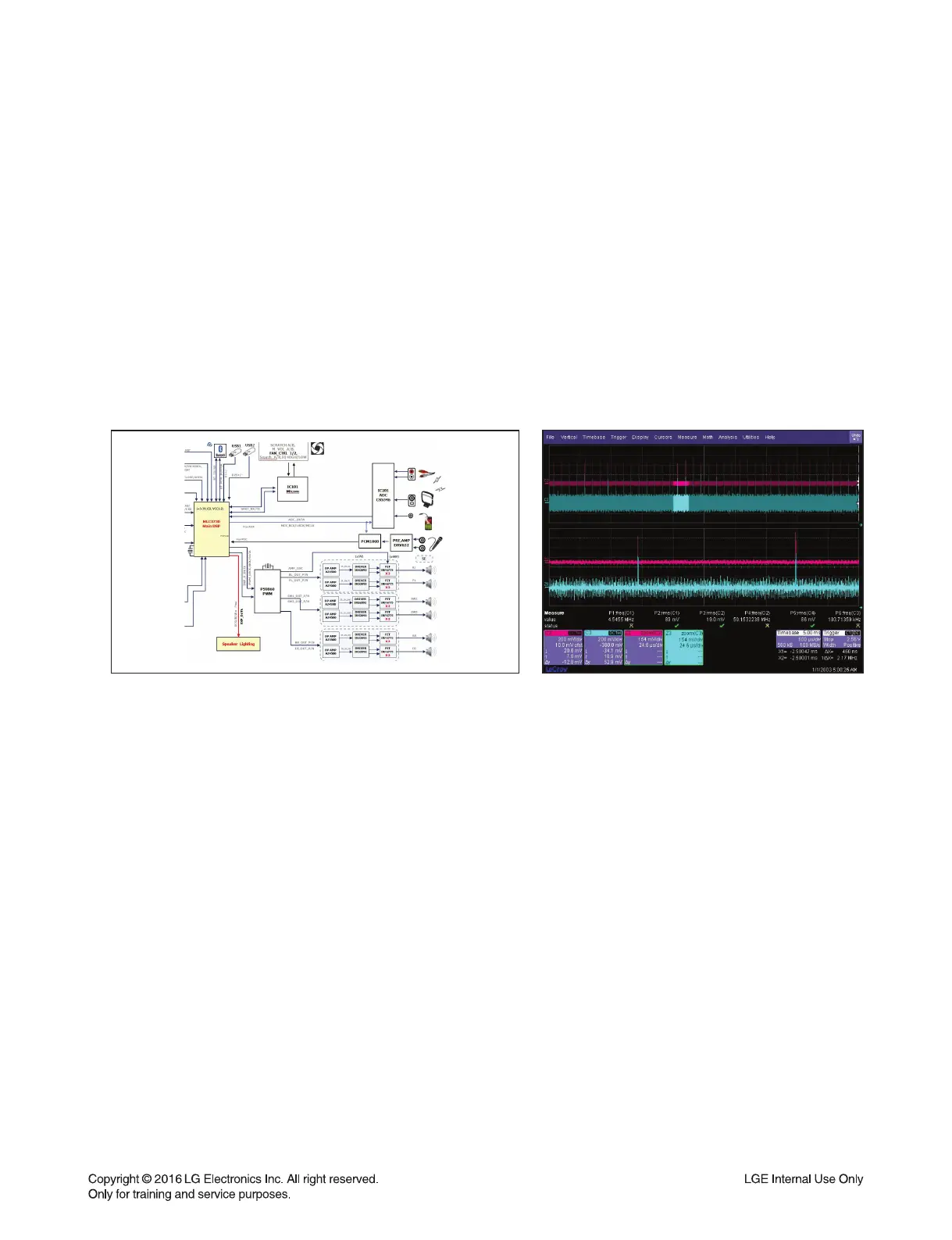

< Waveform of USB D± signal >
< USB function signal fl ow diagram >
To Next Page
