3-2

ONE POINT REPAIR GUIDE

1. NO POWER

If the unit doesn’t work by no power problem, repair the set according to the following

guide.

1-1. FUSE / BRIDGE DIODE / THERMISTOR

1-1-1. Solution

Please check and replace F901, BD901, TH900, TH901, TH902 on SMPS board.

1-1-2. How to troubleshoot (Countermeasure)

1) Check if the fuse F901 is open or short-circuit.

2) Check if the bridge diode BD901 is short-circuit by over current with a digital multi meter.

3) Check if the NTC thermistor TH900 ~ TH902 is normal or open.

1-1-3. Service hint (Any picture / Remark)

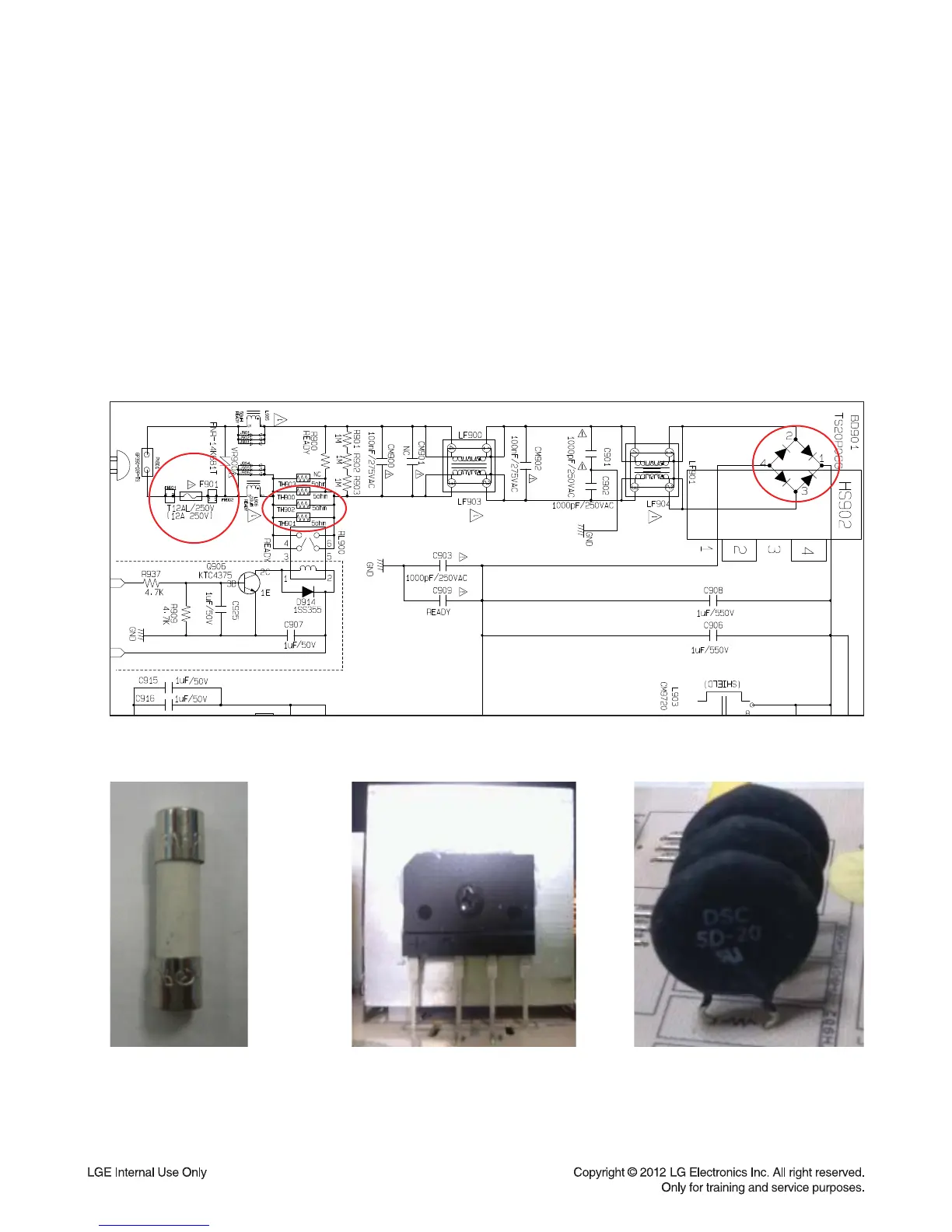

< F901 >

If F901 is not short-circuit,

replace it with a same

speciﬁ cations one.

< TH900 ~ TH902 >

If TH900 ~ TH902 is open,

replace it with a new one.

< BD901 >

If BD901 is short-circuit,

replace it with a new one.
