3-23

ONE POINT REPAIR GUIDE

7. AUDIO OUTPUT IS SMALL OR NO AUDIO OUTPUT

Audio signal output is small or not. when you power on the Middle Power Mini

System.

7-1. IC700 ~ IC706 & IC708

7-1-1. Solution

Please check and replace IC700 ~ IC706 & IC708 on MAIN board.

7-1-2. How to troubleshoot (Countermeasure)

1) Please check if this system is on bass blast mode.

 C, RL and RR make sound only on bass blast mode.

2) Check the IC700 ~ IC706 & IC708 on your eyes.

3) Check the audio signal output check (Pin13 of IC700 ~ IC706 & IC708).

First, check the PWM Data input (Pin3 pin of IC700 ~ IC706 & IC708).

4) If the audio signal output has no output, try to change IC which has no output.

5) Lastly, check Speaker Terminal (CN702, CN703).

7-1-3. Service hint (Any picture / Remark)

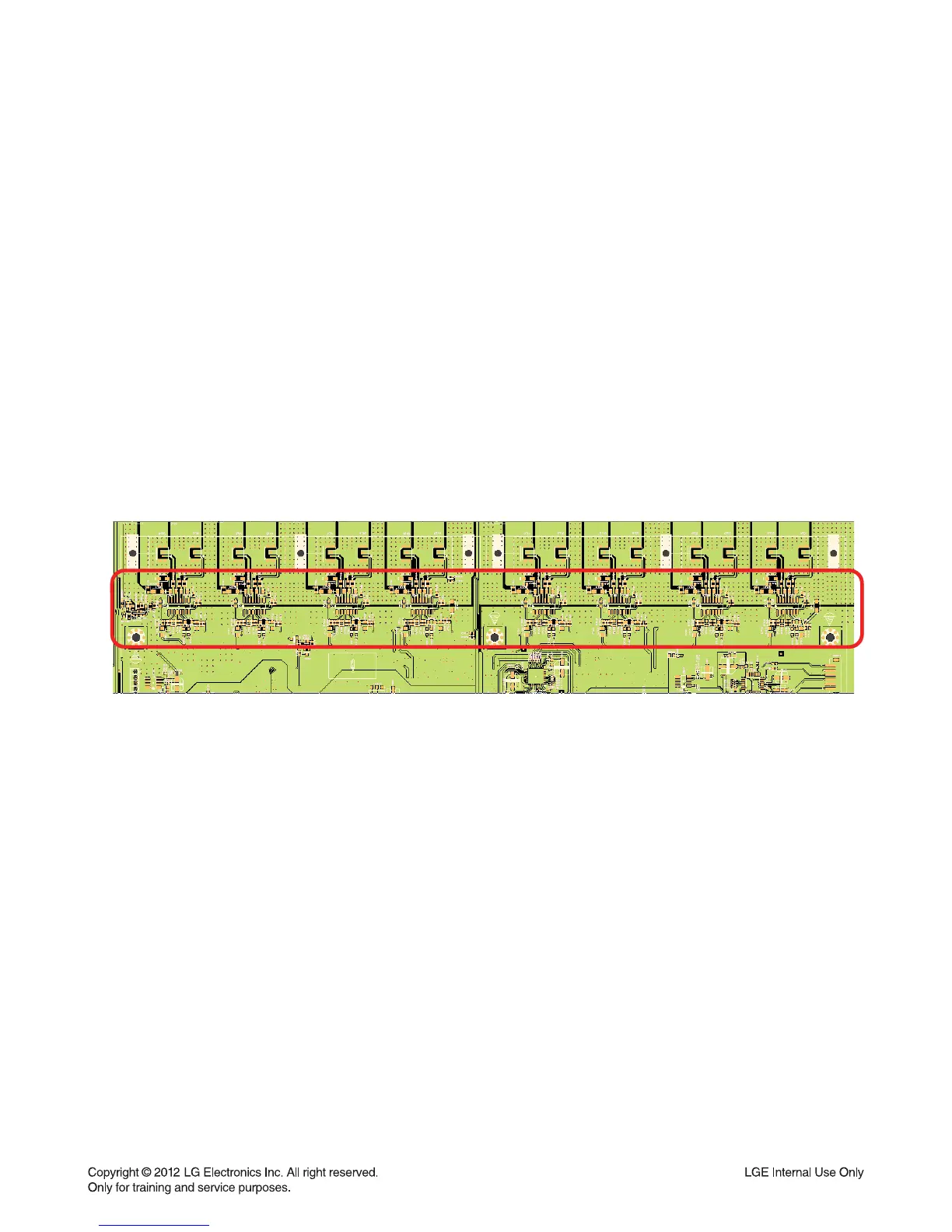

< MAIN board top view >
