3-17

ONE POINT REPAIR GUIDE

NO SOUND

There is no sound output in the USB FUNCTION, repair the set according to the fol-

lowing guide.

6-2. IN THE USB FUNCTION

6-2-1. Solution

Please check and replace IC501, IC504 on MAIN board & IC3U01 on USB board.

6-2-2. How to troubleshoot (Countermeasure)

1) Check +5VU to USB board.

 If +5.6 VA to pin2 of IC3U01(LDO) doesn’t come out, check pin4, 5 of CN502.

 If +5.6 VA is normal & +5VU of IC3U01 pin3 doesn’t come out, then replace IC3U01.

2) Check USB D± from main board to USB board.

a. Check USB_HUB_DN/DP signals to IC501(pin16, 18)

b. Check USB1/2_DN/DP signals from IC501 to CN502 (pin1, 2, 9 & 10)

 If there is any trouble, check the power for each IC. The power is normal but, if the signal waveform to

the IC is distorted or no signal, replace it with a new one.

3) Check if “Digital audio AMP block”.

6-2-3. Service hint (Any picture / Remark)

jkGkzwG

tsjZ^WW

jvkljGW

jvkljGX

tjrVsyjrVijr

wz`_\[

w~tGpj

jz\Z[]

hkjGpj

hr\Z\_

hkjGpj

mGtpj

hkjkh{h

tpjkp

khjkh{h

IR AMP

IRS2092+IRF6775

USB

Board

IC504

USB2512B

USB1_D+/-

USB2_D+/-

USB_D+/-

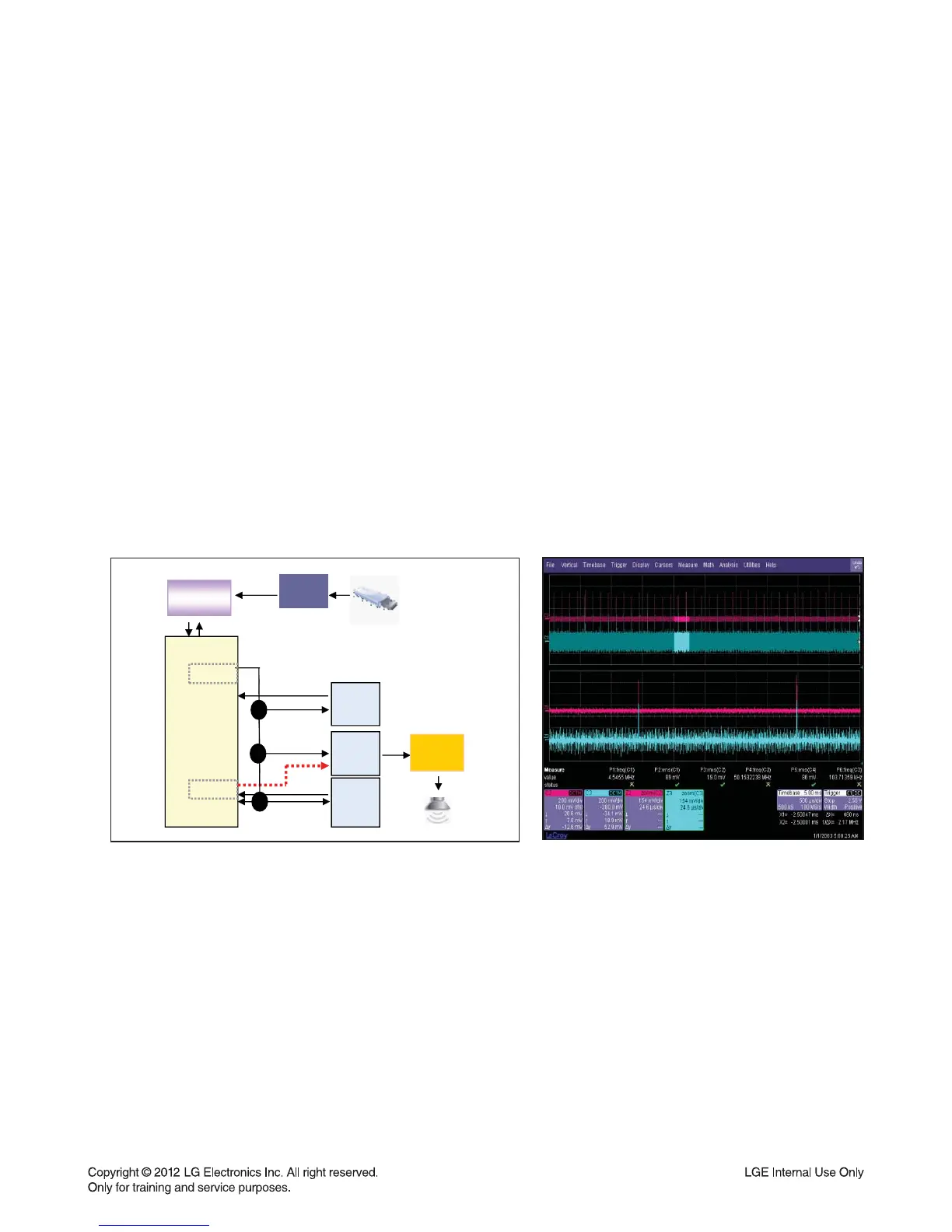

< Waveform of USB D± signal >

USB D+ / D- (CN502 Pin1, 2 & 9, 10)

< USB function signal ﬂ ow >
