LG CM9730 Service Manual

3-49 3-50
CIRCUIT DIAGRAMS

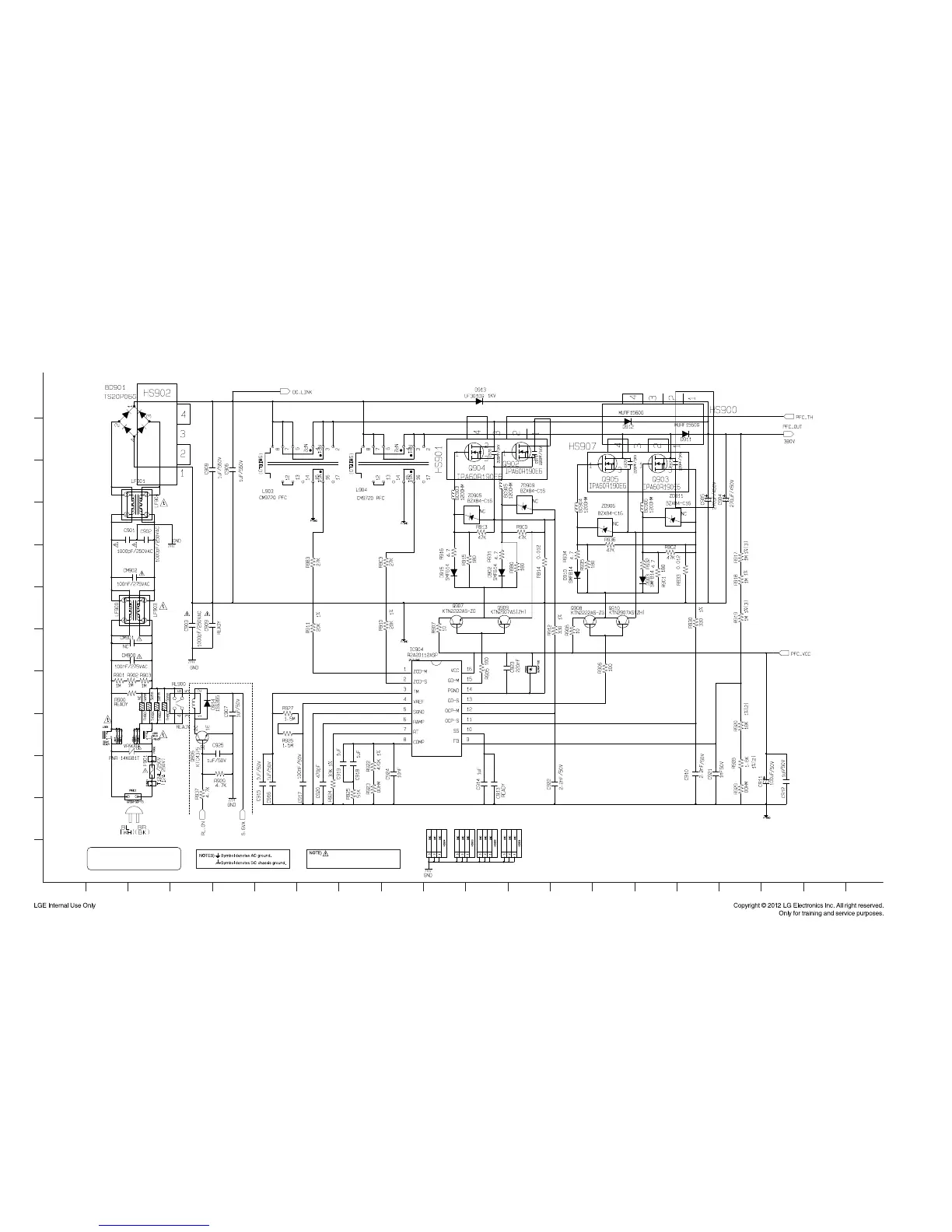

1. SMPS #1 CIRCUIT DIAGRAM
WHEN SERVICING THIS CHASSIS, UNDER NO
CIRCUMSTANCES SHOULD THE ORIGINAL DESIGN
BE MODIFIED OR ALTERED WITHOUT PERMISSION
FROM THE LG CORPORATION. ALL COMPONENTS
SHOULD BE REPLACED ONLY WITH TYPES
IDENTICAL TO THOSE IN THE ORIGINAL CIRCUIT.
SPECIAL COMPONENTS ARE SHADED ON THE
SCHEMATIC FOR EASY IDENTIFICATION. THIS
CIRCUIT DIAGRAM MAY OCCASIONALLY DIFFER
FROM THE ACTUAL CIRCUIT USED. THIS WAY,
IMPLEMENTATION OF THE LATEST SAFETY AND
PERFORMANCE IMPROVEMENT CHANGES INTO
THE SET IS NOT DELAYED UNTIL THE NEW SERVICE
LITERATURE IS PRINTED.
IMPORTANT SAFETY
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
SMPS #1
EAX64780401-SD_9.1.7
2012. 09. 12
CAUTION:
Danger if fuse is incorrectly replaced.
Replace only with the type identical to fuse rating
and(or) model name described in main label.
Warning
Parts that are shaded are critical with
respect to risk of fire or electrical shock.

LG CM9730 Specifications

General

Type	-
Cassette deck	No
Product color	Black
Disc loading type	Tray
Optical disc player	Yes
Impedance	75 Ω
RMS rated power	2300 W
Number of speakers	2
Power source	AC
Input voltage	220-230 V
Input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	180 W
Playback disc formats	CD audio
Audio formats supported	MP3, WMA
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, MW
Preset stations quantity	50
Display type	LCD
Speaker depth	500 mm
Speaker width	520 mm
Speaker height	720 mm
Apple docking compatibility	Not supported
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Main unit dimensions (WxDxH)	542 x 421 x 310 mm
