3-24

ONE POINT REPAIR GUIDE

8. NO POWER ON (STANDBY LED IS BLINKING)

It doesn’t turn on, and blinks standby LED(Red).

8-1. AMP FETs

8-1-1. Solution

Please check and replace Q700 ~ Q705, Q708, Q709, Q714, Q716, Q719 ~ Q724 on MAIN board.

8-1-2. How to troubleshoot (Countermeasure)

1) This symptom occurs, when DC protection is detected. Main reasons are like below.

- When Some of AMP FETs dead.

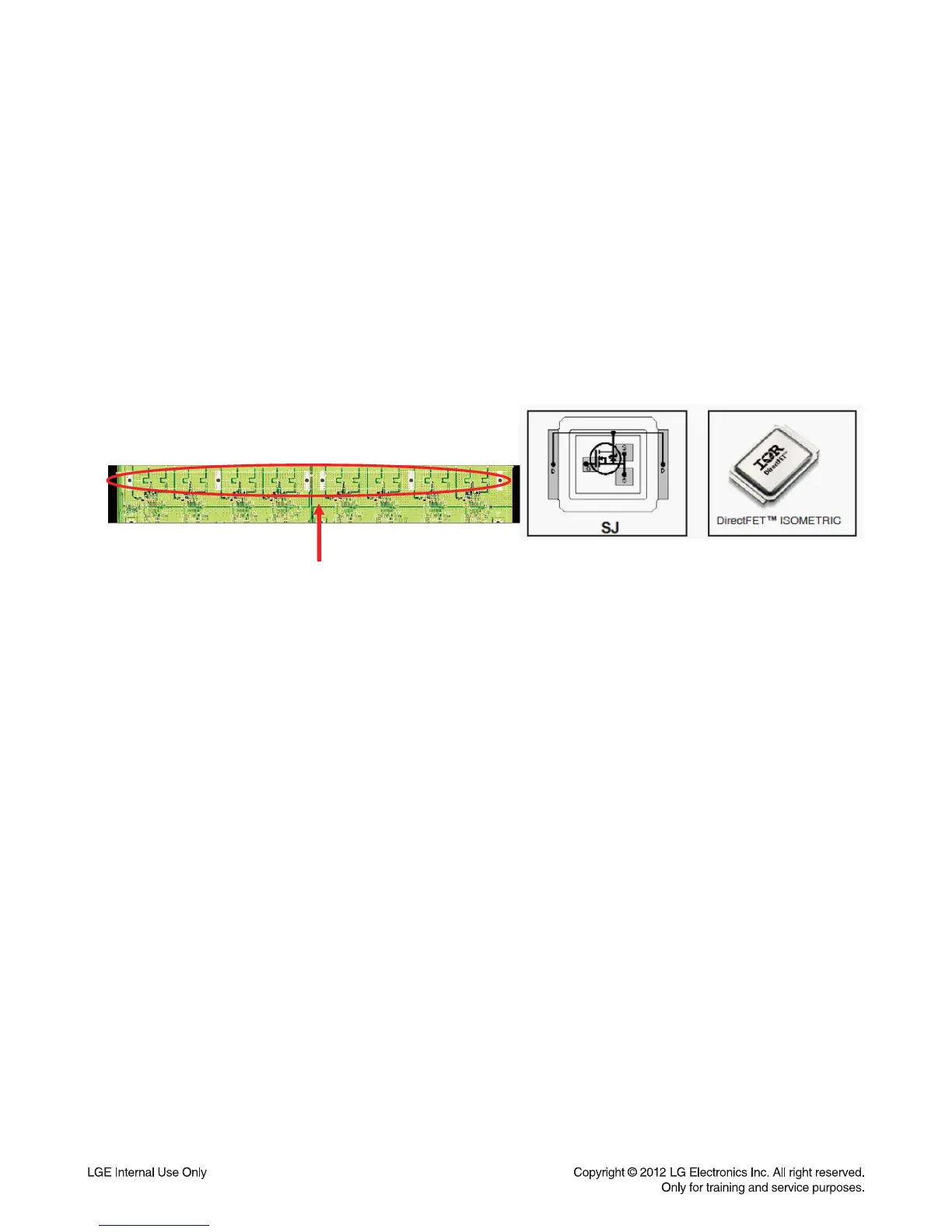

8-1-3. Service hint (Any picture / Remark)

AMP FET : IRF6775

Notice for FET service

- In case of RF6775, Metal case, FET Drain,

has electric potential. So be careful when you

deal with it.

* You can see FET after removing heatsink.

* Notice for Service

Before repair Main Assy, you need to discharge SMPS.

After then, open the connector.

You should try to change both of +/- FET and Driver IC as a pair.
