ONE POINT REPAIR GUIDE

NO OPERATION OF MD

When no sound output in the CD function, you can not listen to music reading data

from a CD disc if the servo motors in MD don’t work. This step is for checking the

SLED MOTOR among them.

5-2. SLED MOTOR

5-2-1. Solution

Please check and replace IC407, IC408 on MAIN board.

5-2-2. How to troubleshoot (Countermeasure)

1) Check the SLDO signal from Pin15 of IC407.

 If no signal, check 3.3 V(RF) and X402.

2) Check the SLED+ & SLED- from IC408 to CN405 for driving SPINDLE motor. It is about 2.9 Vp-p.

 If no signal, check +1.8 V and +5 V for IC408.

3) Check if the FFC cable is solidly connected between CN405 and MD.

4) Check the MD.

 If the sled motor is sort-circuit or has any trouble, it can not move the pick-up module.

Please check the function after changing another MD.

5-2-3. Service hint (Any picture / Remark)

pj[W_G

zsT

`GGju[W\

zsR

^GGju[W\

zsR

zsT

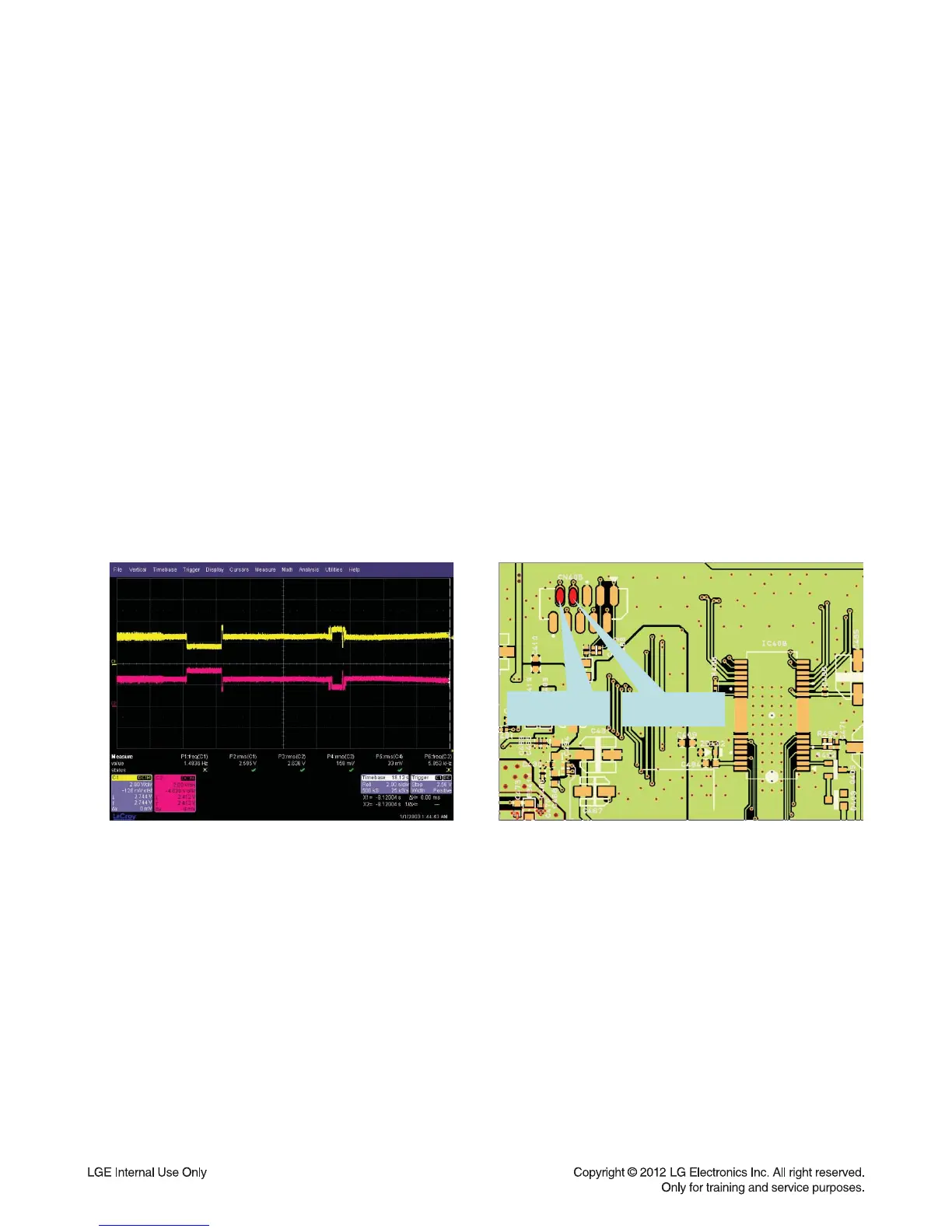

< Waveform of SLED- & SLED+

for driving SLED motor >

< Signal check point >
