INTRODUCTION
11

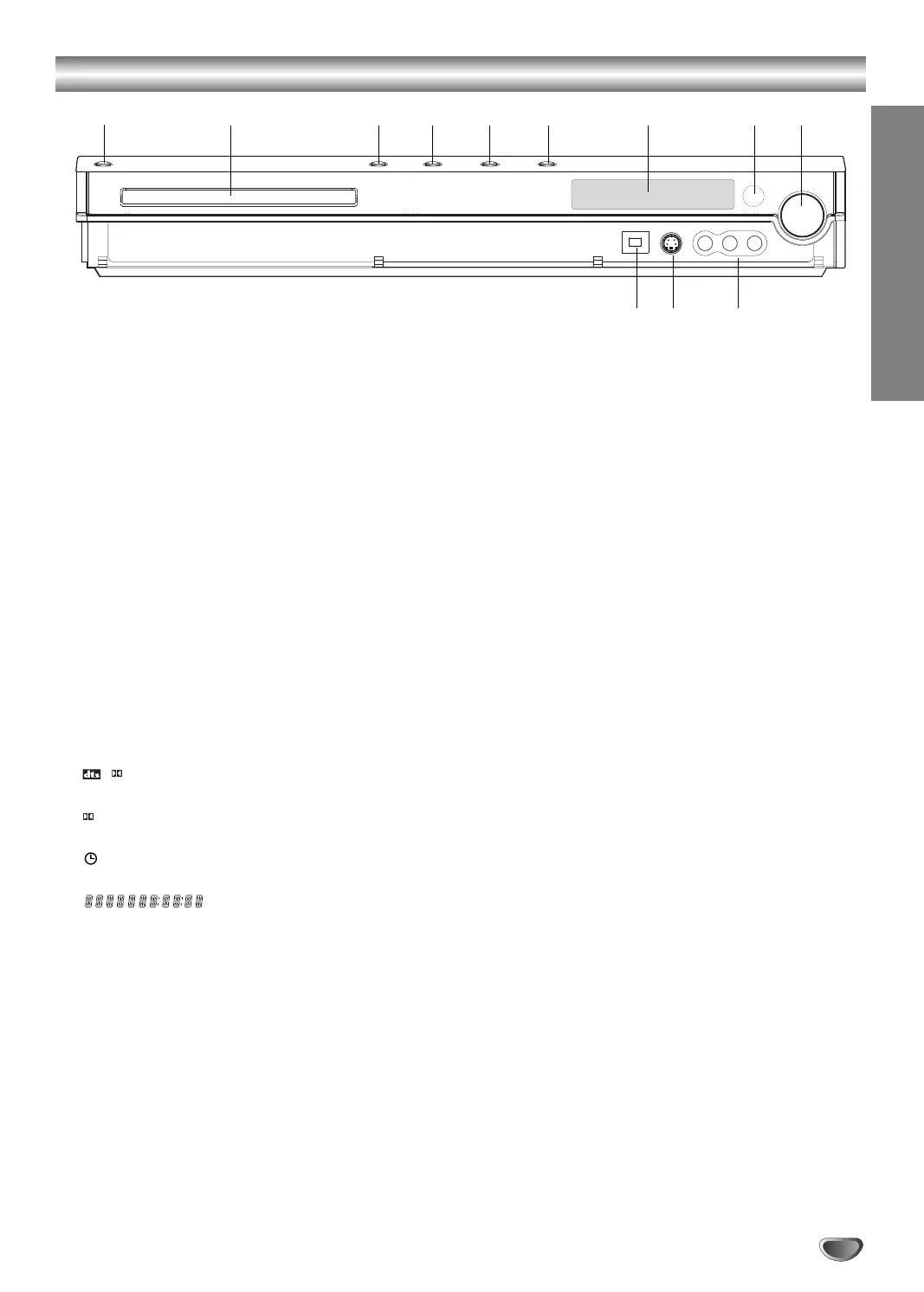

Front Panel
a POWER
Switches the DVD Recorder Receiver ON or OFF.
b Disc Tray
Insert a disc here.
c OPEN/CLOSE (Z)
Opens or closes the disc tray.
d B (PLAY)
Starts playback.
e x (STOP)
Stops playback or recording.
f z (REC)
Starts recording. Press repeatedly to set the record-
ing time.
g Display window
Shows the current status of the recorder.
REC: The recorder is recording.
RDS: RDS Data type indicators
MUTE: The speaker sound is muted.
,
: Indicates encoding format of the current
disc.
: Indicates sound mode is DOLBY PRO LOGIC
or DOLBY PRO LOGIC II.
: Indicates when the recorder is in timer recording
or a timer recording is programmed.
: Indicates clock, total playing
time, elapsed time, title number, radio frequency,
volume, Surround, chapter/track number, channel,
etc.
h Remote Sensor
Point the recorder remote control here.
i VOLUME CONTROL
Turn the knob clockwise to increase sound level,
counterclockwise to decrease sound level.
j DV IN
Connect the DV output of a digital camcorder.
k S-VIDEO IN
Connect the S-Video output of an external source
(TV/ Monitor, VCR, Camcorder, etc.).
l INPUT 4 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/ Monitor, VCR,
Camcorder, etc.).
PLII
a b i
jk l
gehfdc
