Connections (Continued)
About Ferrite Core
Be sure to attach the ferrite core to the speaker
cables (for connecting to this unit).
This ferrite core can reduce noises.

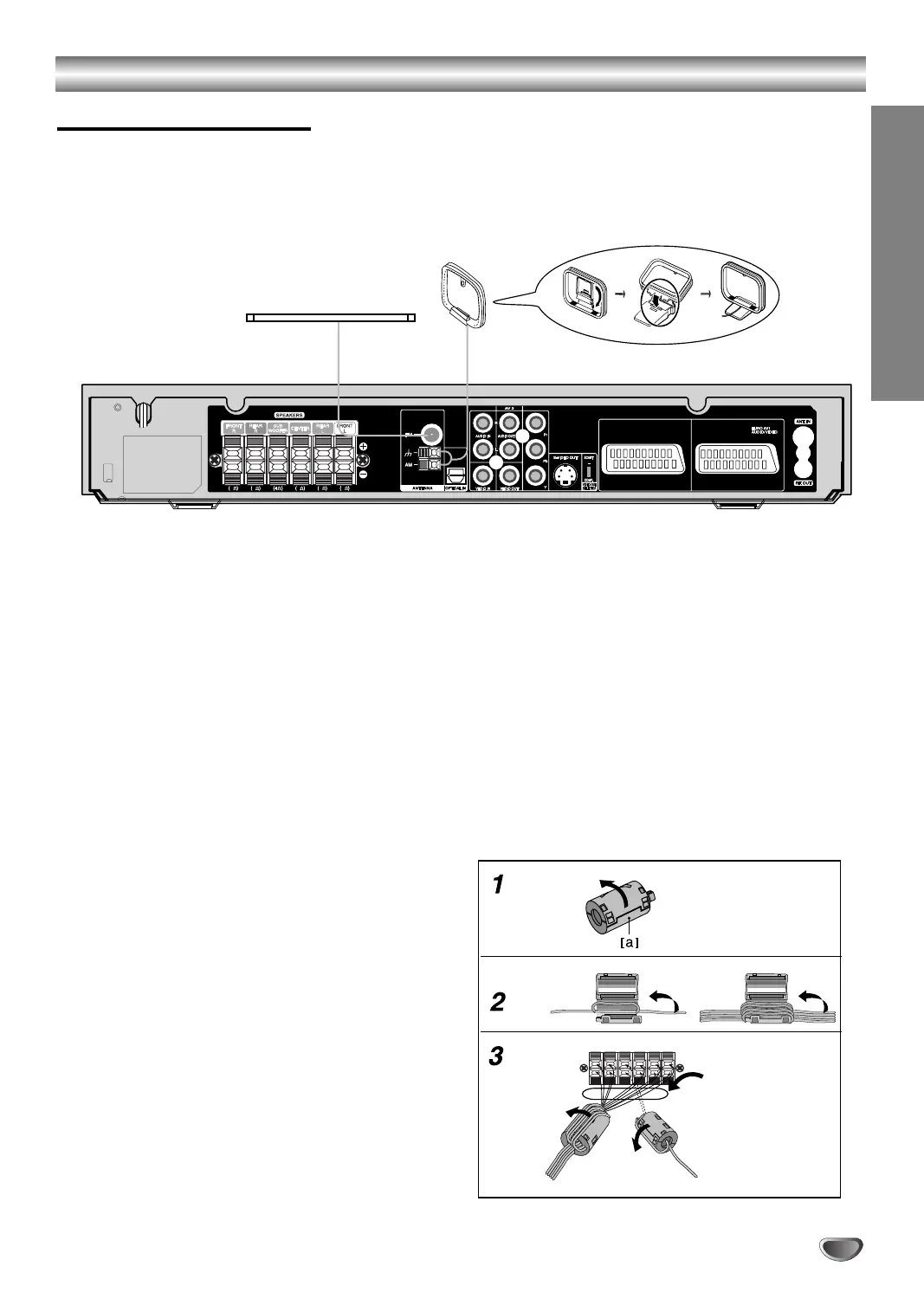

How to attach the ferrite core
1 Press the stopper [a] of the ferrite core to
open.
2 Wind the cable once on the ferrite core.
3 Close the ferrite core unitl it clicks.
Note:
Attach the ferrite core near the unit (Refer to the fig.3
and comment.).
(Subewoofer)
The length here is
short as much as
possible.
FM Wire aerial (supplied)
AM Loop aerial (supplied)
8
88
8
8
EURO AV2
DECODER
Radio Aerial Connections
Connect the supplied FM/AM aerial for listening to the radio.
Connect the AM Loop aerial to the AM aerial connector.
Connect the FM Wire aerial to the FM aerial connector.
Notes:
To prevent noise pickup, keep the AM loop aerial away from the DVD Recorder Receiver and other components
Be sure to fully extend the FM wire aerial.
After connecting the FM Wire aerial, keep it as horizontal as possible.
To Next Page
