Prior to disassembly the unit,make sure that the POWER is OFF and the power cord is
unplugged from the wall receptacle.
CAUTION:
Fig1-1
Fig1-2
Fig1-4 Fig1-5
Fig1-6
Fig1-3
Fig1

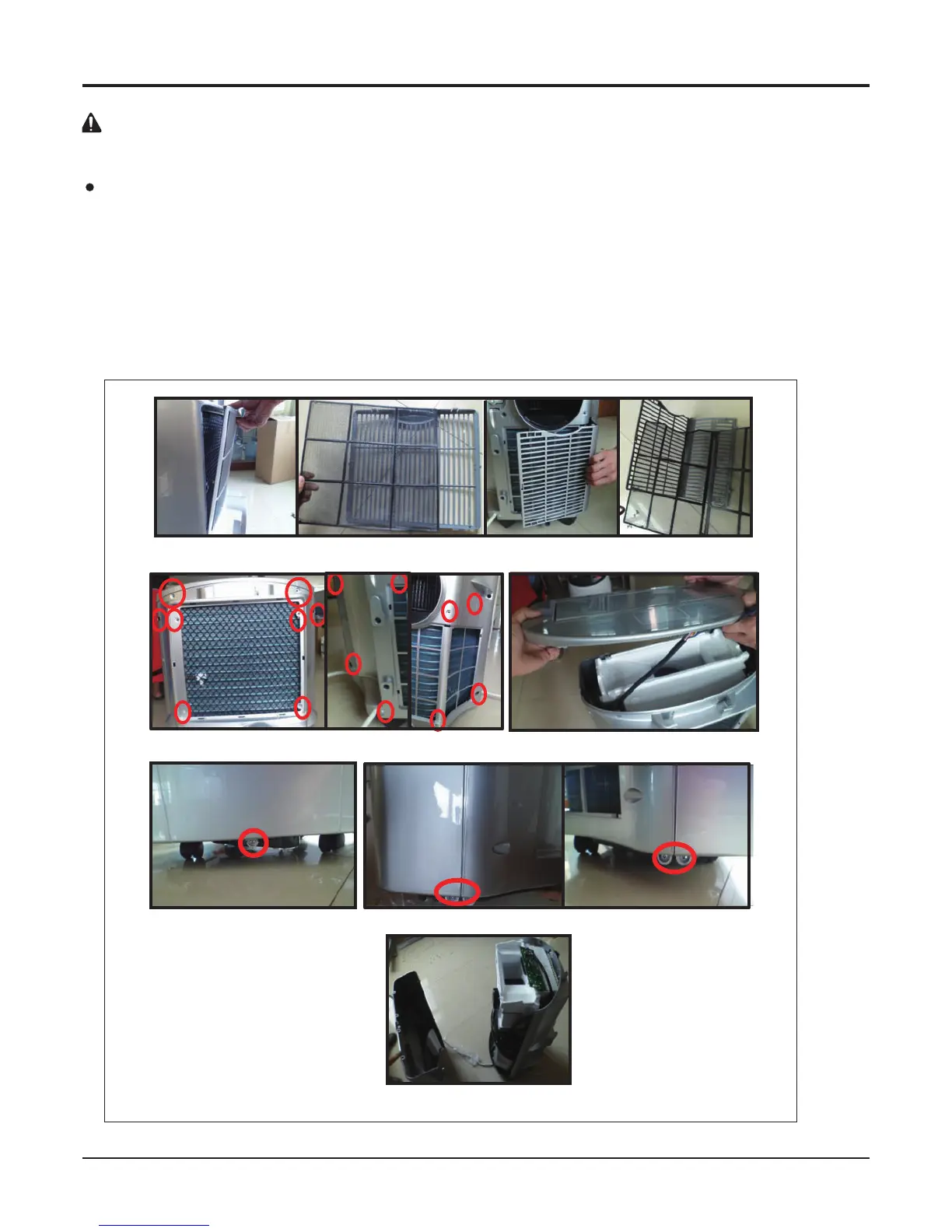

1-1 Remove the 2 back inlet with the filter. (Fig1-1)
1-2 Screw the16 screws in back panel. (Fig1-2)
1-3 Rise up the top panel and ligtly put it on the machine for it'connecting the display PCB. (Fig1-3)
1-4 Remove the screw fixed of base pan and front panel.(Fig1-4)
1-5 Remove the 4 side screw.(Fig1-5)
1-6 Remove the front panel and rear panel. (Fig1-6)
1 Top Front and Real panel (Fig1)
