LG LP1415GXR Service Manual

- 50 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request.
Please check the correct parts in View RPL(Replacement Part List) on GCSC.
(GCSC Website http://biz.Lgservice.com,)
249950
130410
554030
267110
354210
346811A
349011
346811B
435313
152302B
346811C
552113
137214
137210
152302A
158580
264110
422100A
422100B
567502
550140
554160
237901
267120
235512
146811
268711A
147590
238310
237203
731270A
2 Type A Screws 1 Type B Screw 1 Type C Screw
2 Type A Foam Seals
(Adhesive)
Security Bracket
1 Type B Foam Seal
(Non-adhesive)
2 Type C Foam Seals
(Adhesive type-Shorter)
Window Installation Kit (includes 1 Window
Vent Panel and 3 Extension Panels)
1 Window Vent Panel
Panel A (18’’)
3 Extension Panels
Panel C (17’’)
Panel D (17’’)
Panel B (9’’)
352390
W50060A
144410
35211A
352113
268711B
352111
731270B
W0CZZA
W0CZZB
567480
W0CZZC

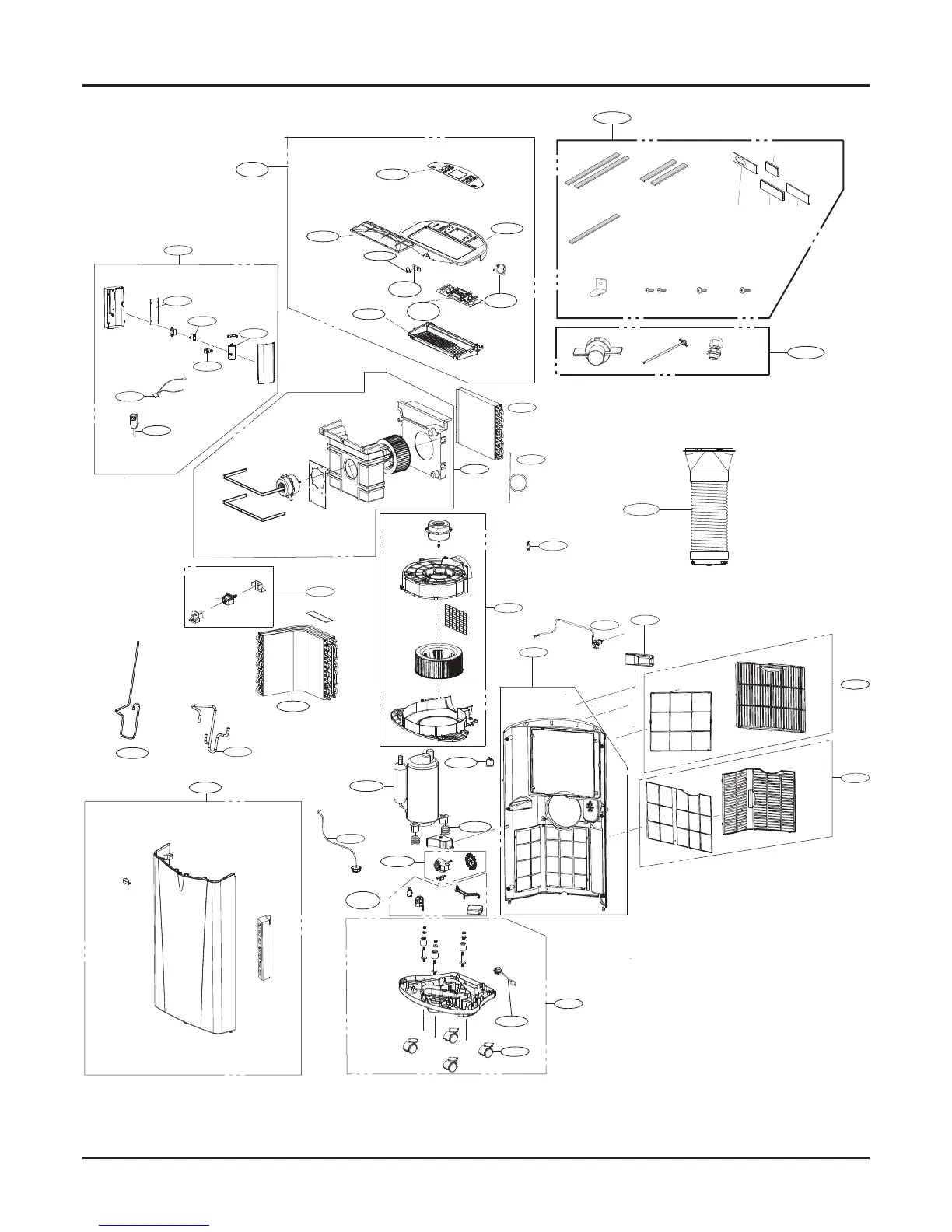

11. EXPLODED VIEW
