ONE POINT REPAIR GUIDE
1. NO POWER
If the unit doesn’t work by no power problem, repair the set according to the following guide.
1-1. FUSE/ THERMISTOR/ BRIDGE DIODE
1-1-1. Solution
Please check and replace F901, TH901 or TH903, BD901 on SMPS board.
1-1-2. How to troubleshoot (Countermeasure)
1) Check if the fuse F901 is open or short-circuit.
2) Check if the NTC thermistor TH900 or TH903 is normal or open.
3) Check if the bridge diode BD901 is short-circuit by over current with a digital multi-meter.

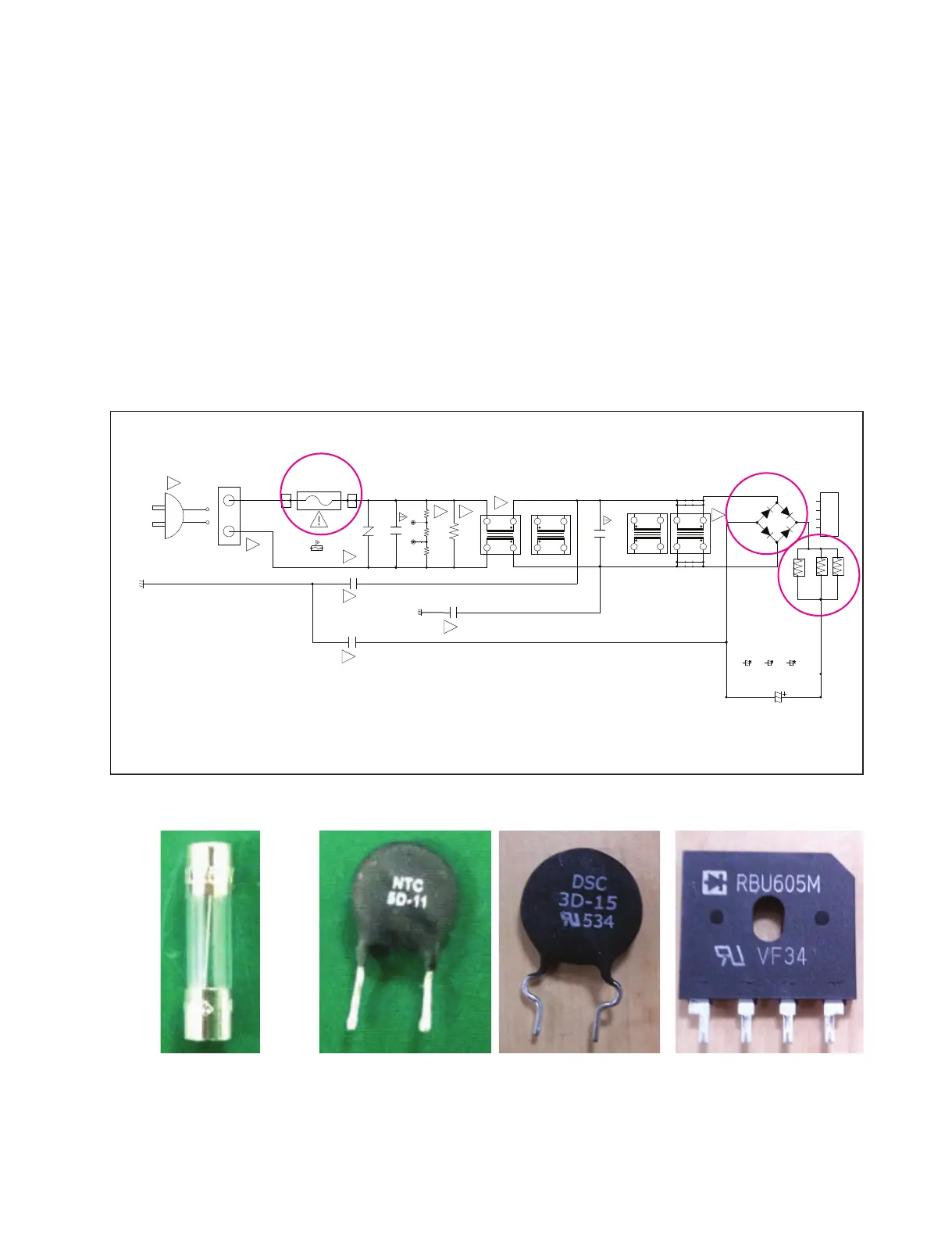

1-1-3. Service hint (Any picture/ Remark)
< F901 >
If F901 is not short-circuit,
replace it with a same
specifi cations one.
< BD901 >
If BD901 is short-circuit,
replace it with a new one.
<TH901 or TH903 >
If TH901 or TH903 is open,
replace it with a new one.
L2L1
L2L1
L2L1
L2L1
(5A 250V)
T5AL/250V
CY900
VR901
SVC681-14
109HF
12
FH902
12
CY901
GND
PN901
GP390-02P-TS
CM901
100nF/275VAC
R900 1.5M
CM902
100nF/275VAC
LF901-*1
1
2
3
4
TH903
TH901
DSC 3D-15 MSFC
CY902
TH902
HS900
1
2
3
4
OTW1
1
2
OTW2
1
2
OTW3
1
2
OTW4
1
2
BD901
RBU605M
1
2
3
4
C903-*2
180uF
C903-*3
270uF
C903-*1
330uF
LF901
1
2
3
4
LF902
1
2
3
4
LF902-*1
1
2
3
4
F901
C903
330uF 450V
R901
470K
R902
470K
R903
470K
Y_GND
TP901
TP902
F901-*1
!
!!
!
!
!
!
!
T8AL/250V
!
NUTRAL
(WH/BL)
LIVE
(BK/BN)
!
To Next Page
