LG OK75 - Printed Circuit Board Diagrams: SMPS Top View

LG OK75
87 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
3-53 3-54
PRINTED CIRCUIT BOARD DIAGRAMS

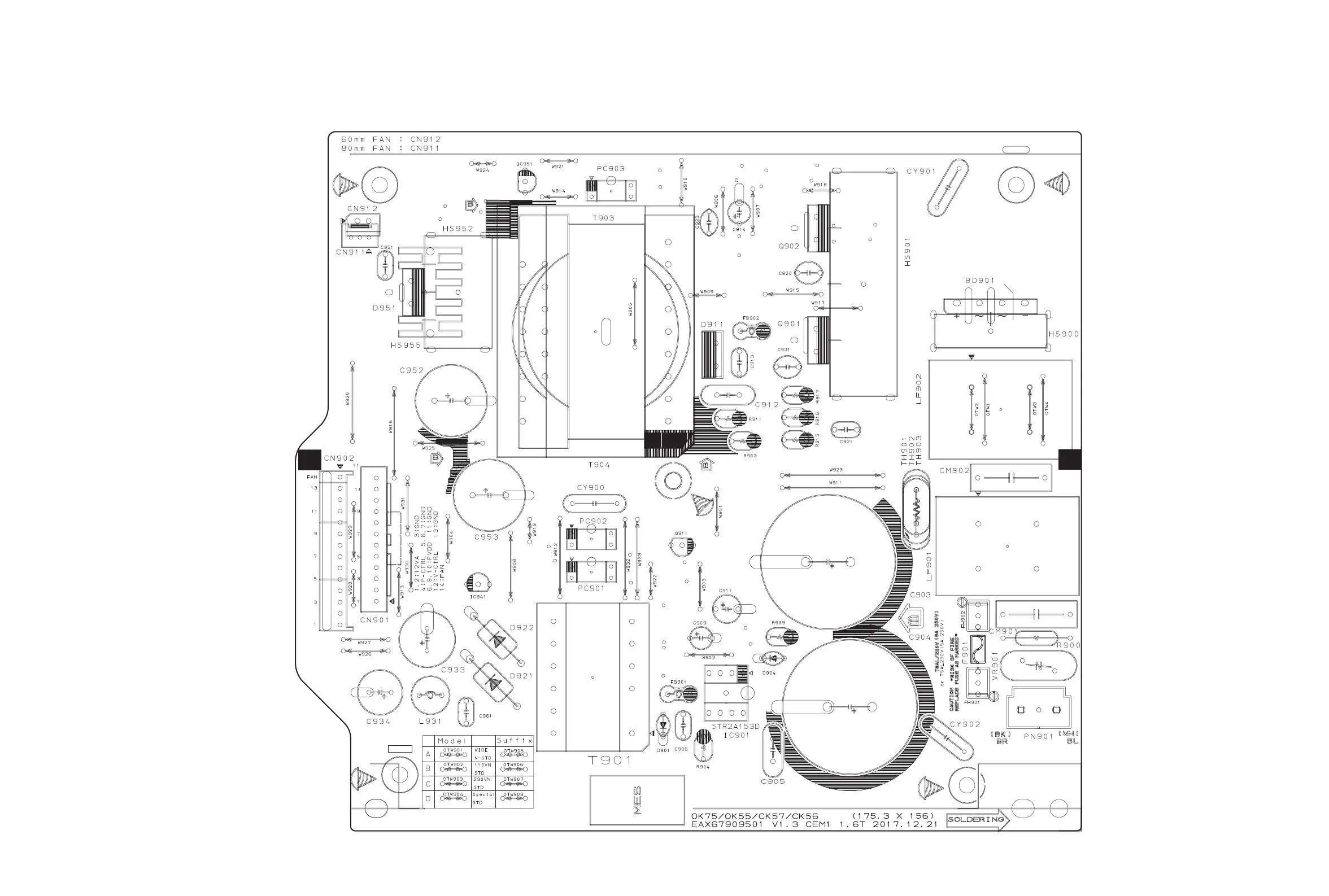

1. SMPS P.C.BOARD DIAGRAM
(TOP VIEW)
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
