DECK MECHANISM DISASSEMBLY
3) Grasp the both sides of the Tray Disc and lift
it up as Figure D, and then pull the Tray Disc
until it is separated from the MD Sub Assembly
completely.
Note
• When reassembling place the Guide as Figure E.
MD Sub
Assembly

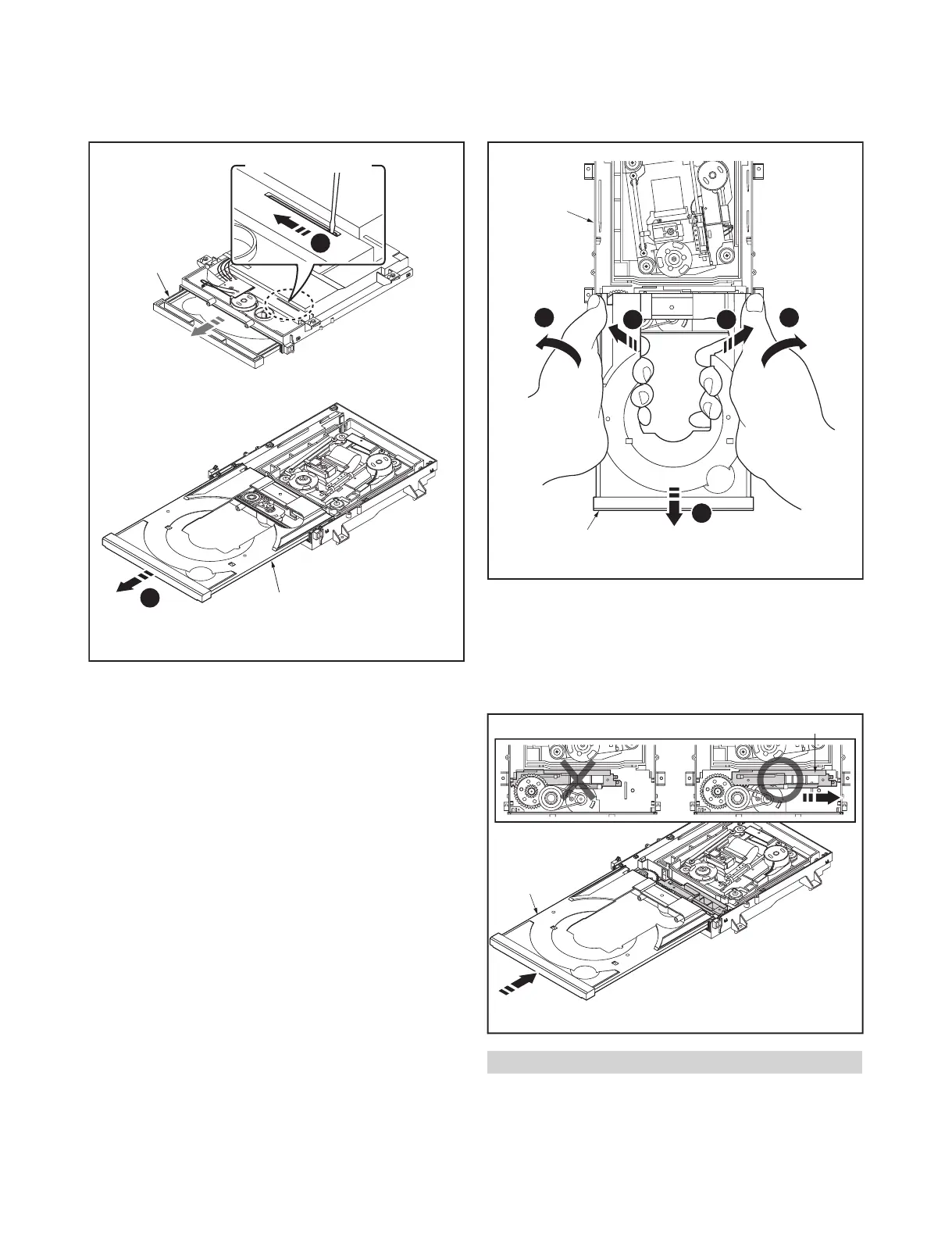

< Figure D >
3
1 1
22
Tray Disc
Tray Disc
< Figure E >
Guide
3. Tray Disc
1) Insert and push a flat-head screwdriver in the
Emergency eject hole (H1) at the right side, so
that the Tray Disc is ejected about 15 ~ 20 mm.
2) Pull the Tray Disc until it is locked.
< Bottom side view >
Tray Disc
Tray Disc
< Figure C >
2
1
(H1)
Emergency eject hole
