3-36
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

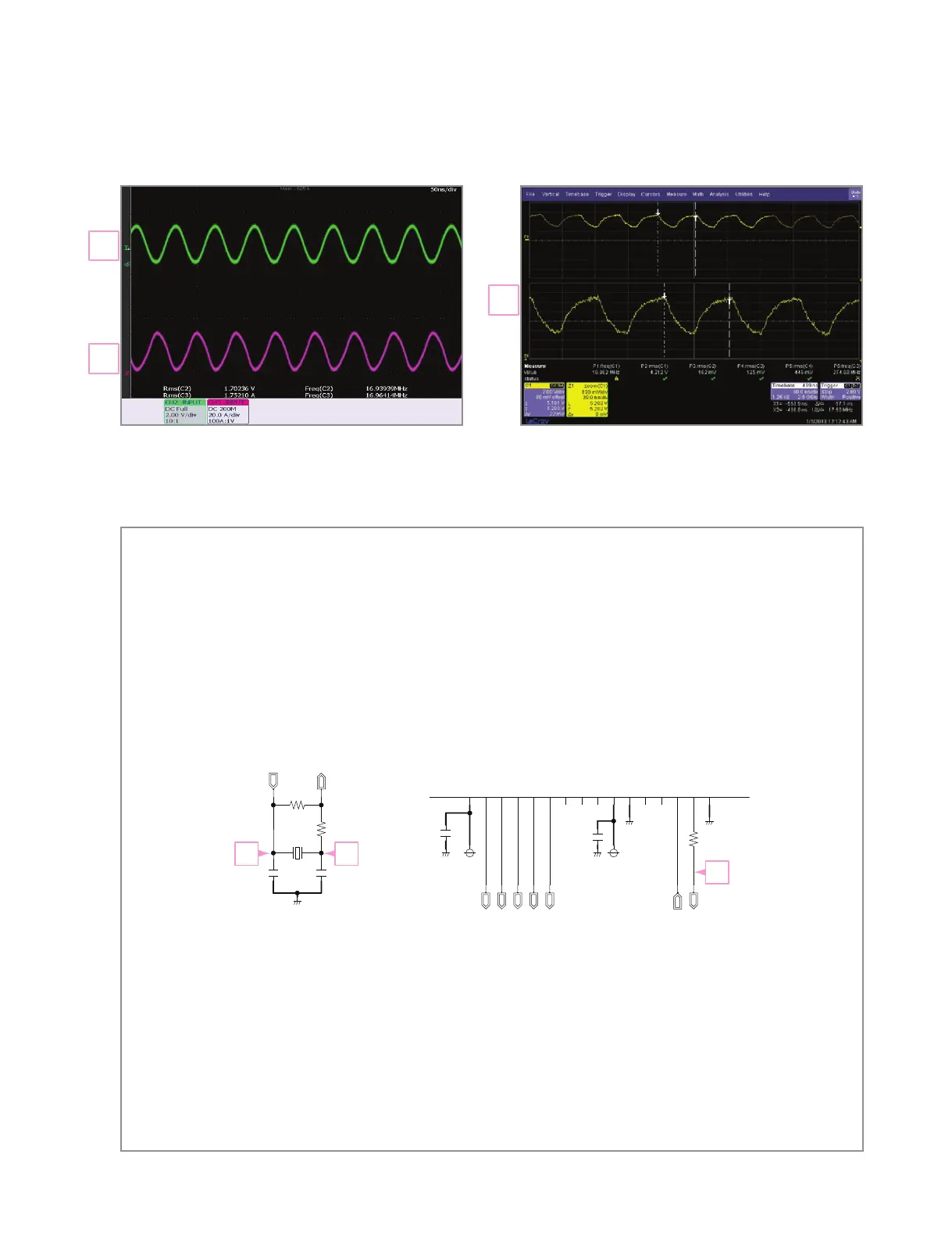

3. SERVO (IC401)
X
XI
XO
Fig 3-2. CD-16M
(IC401 pin31)
Fig 3-1. X400: Crystal 16.9344 MHz
10
9
11
109
C445
15pF
C444
15pF
RFGND
R422
220
R423
1M
X400
16.9344MHz
RXI
RXO
11
C424
100nF
C431
100nF
RFGND
RFGND
RFGND
RFGND
IC401
17
DVDD
18
MCK
19
DIN/DOUT
20
R/W
21
BUSY
22
SUBSYQ
23
SUBDATA
24
SUBCK
25
WFCK
26
VDD_CORE
27
DGND
28
CLK
29
CLK88
30
RESETB
31
XBUFO
32
DGND
R419
33
VDD_CORE
DVCC3.3V
CD_RESB
CD_DIN_OUT
CD_SUBSYQ
CD_RW
CD_BUSY
CD_16M
CD_MCK
