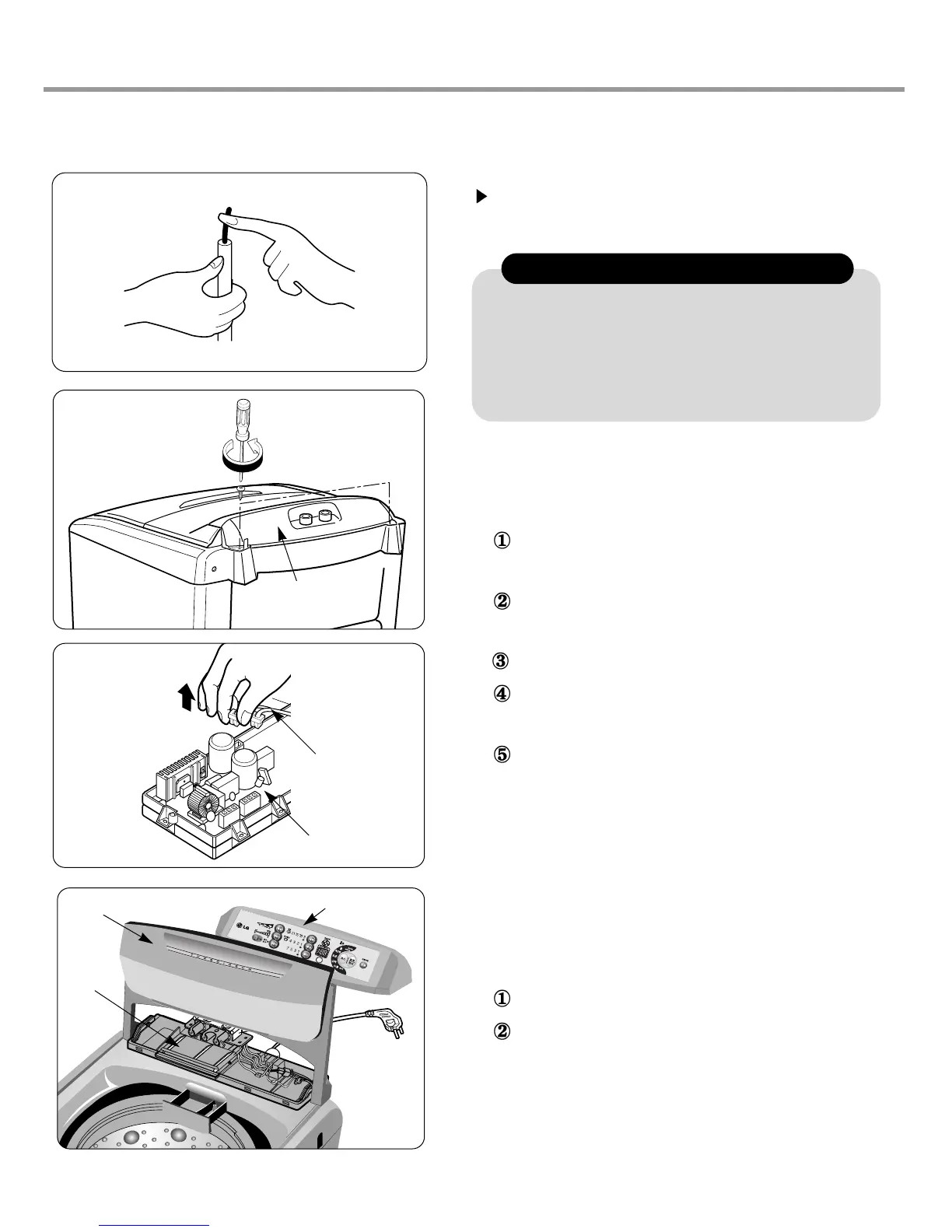

4-4. DISASSEMBLY INSTRUCTION
Be sure to unplug the power to repair and replace
electric parts.
1) Disassembly of Back panel (joined
control panel) & PCB Assembly
Remove two back panel fixing screws on the back
side.
Pull the back panel (joined control panel) to the
upside.
Disconnect the leads from the controller
Remove 6 screw from the back panel (joined
control panel)
Remove the PCB Assembly.
2) Disassembly of Power Cord, Inlet Valve
ASM, D.T Housing ASM and Pressure
Switch
Open lid assembly and disassemble detergent box.
Disassemble back panel (joined control panel) from
top cover.
Be sure to make earth connection for trouble
diagnosis and parts replacement. If impossible,
touch earth wire on the body to remove electric
deviation between the body and product before
work.
CAUTION FOR ELECTROSTATICS
Back panel
Leads
PCB Assembly
Back panel
Lid ASM
Detergent
Box

LG WT-R10(~3)3(7)1(3,5)TP(H) Specifications

General

Power Sourse	Refer to rating label on the back of Washer
Input	Refer to rating label on the back of Washer
Rating of Fuse	250V, 8A for 220~240V/50Hz 125V, 12A for100~127V/60Hz
Auto Power Off	Applied
Capacity	Refer to rating label on the back of Washer
Spin Speed	710 50
Lint Filter	Double
Softener Dispenser	Applied
Detergent Dispenser	Applied
Bleach Inlet	Applied
Inner Tub	Stainless
Inlet Water Pressure	0.3kgf/cm2~ 8kgf/cm2
Water Level	7 Stages
Reservation	Available for 3 ~ 24 Hr
Program	DELICATE, WOOL, NORMAL, SPEEDY, JEAN
Lid Interlock Switch	Magnet Sensor
Child Lock	Applied

Weight and Dimensions

Dim.	Refer to rating label on the back of Washer
Weight	Refer to rating label on the back of Washer
