LG WT-R10(~3)3(7)1(3,5)TP(H) User Manual

9

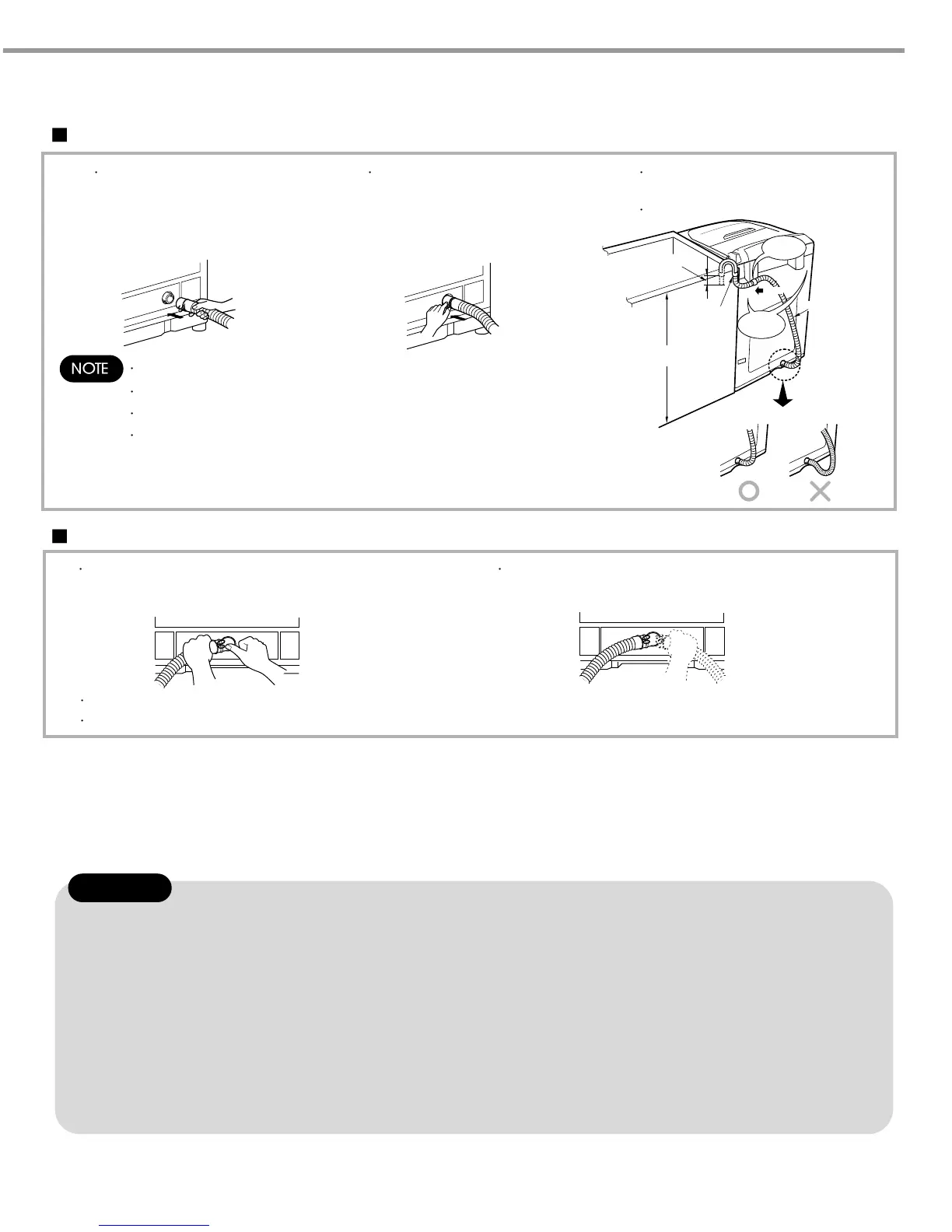

2-3. CONNECT THE DRAIN HOSE
2-4. FLOODING DRAINAGE
For pump model
For non - pump model
Connect the drain hose to
the outlet of the drain pump
located at the rear of the
washing machine.
Attach the clip to the drain
hose. And then push it toward
the body of the washing
machine as indicated by the
arrow.
Check that the drain hose is hung
up over the edge of the laundry tub.
Do not use an extension hose.
Hose
Guide
Within 50mm
0.9~
1.2m
Drain Hose
Holder
Holes for the Holder
Push
Holes
For Holder
Never lay down the drain hose, as water will be discharged.
Be sure the drain hose is properly routed so it will not kink or lift from the sink.
The discharge height should be approximately 0.9~1.2m from the floor.
Connect the drain hose adjusting the length of it not to be dropped. If drain hose
is dropped the drainage could be poor because of blockage in the hose.
Connect the drain hose to the outlet of the
drain located at the back side of the
washing machine.
Fix the drain hose with the clip.
And then push it toward the body as in the
figure.
Keep it downward while the washing machine is working.
Ensure the hose is free from kinking.
● You machine requires a floor drainage slope (or hole) that will SAFELY DISPOSE of the FULL FLOW of any water that may leak
out should the machine malfunction.
It is therefore the OWNER'S RESPONSIBILITY to make sure this machine is installed in an area with a drain hole (or slope) that
will prevent any possibility of water damage to floor coverings or property.
● Do not install the washer where it is directly exposed to sunlight, wind, rain, etc.
● Plug the power cord of this washer into a properly installed standard power outlet that is grounded.
● Your machine requires a floor drainage slope (or hole) that will SAFELY DISPOSE of the FULL FLOW of any water that may leak
out should the machine malfunction. It is therefore the OWNER’S RESPONSIBILITY to make sure this machine is installed in an
area with a drain hole (or slope) that will prevent any possibility of water damage to floor coverings or property.
● Permissible water temperature : Max 70˚C (160˚F)
● Permissible water pressure : Max 116psi (800 kpa, 8 kg/cm
2
), Min 4 psi (30 kpa, 0.3 kg/cm
2
)
● If water temperature and pressure are greater than above, it may cause damage to the machine. If you have uncontrolled water
temperature and pressure you should fit a temperature and pressure relief valve to ensure that water temperature and water
pressure remain within the safe limits. Consult a plumber or electrician if you are unable to adjust water temperature and pressure.
● Do not over tighten the coupling nuts with a tool. Inlets are plastic : Do not strip or crossthread.
CAUTION

LG WT-R10(~3)3(7)1(3,5)TP(H) Specifications

General

Power Sourse	Refer to rating label on the back of Washer
Input	Refer to rating label on the back of Washer
Rating of Fuse	250V, 8A for 220~240V/50Hz 125V, 12A for100~127V/60Hz
Auto Power Off	Applied
Capacity	Refer to rating label on the back of Washer
Spin Speed	710 50
Lint Filter	Double
Softener Dispenser	Applied
Detergent Dispenser	Applied
Bleach Inlet	Applied
Inner Tub	Stainless
Inlet Water Pressure	0.3kgf/cm2~ 8kgf/cm2
Water Level	7 Stages
Reservation	Available for 3 ~ 24 Hr
Program	DELICATE, WOOL, NORMAL, SPEEDY, JEAN
Lid Interlock Switch	Magnet Sensor
Child Lock	Applied

Weight and Dimensions

Dim.	Refer to rating label on the back of Washer
Weight	Refer to rating label on the back of Washer
