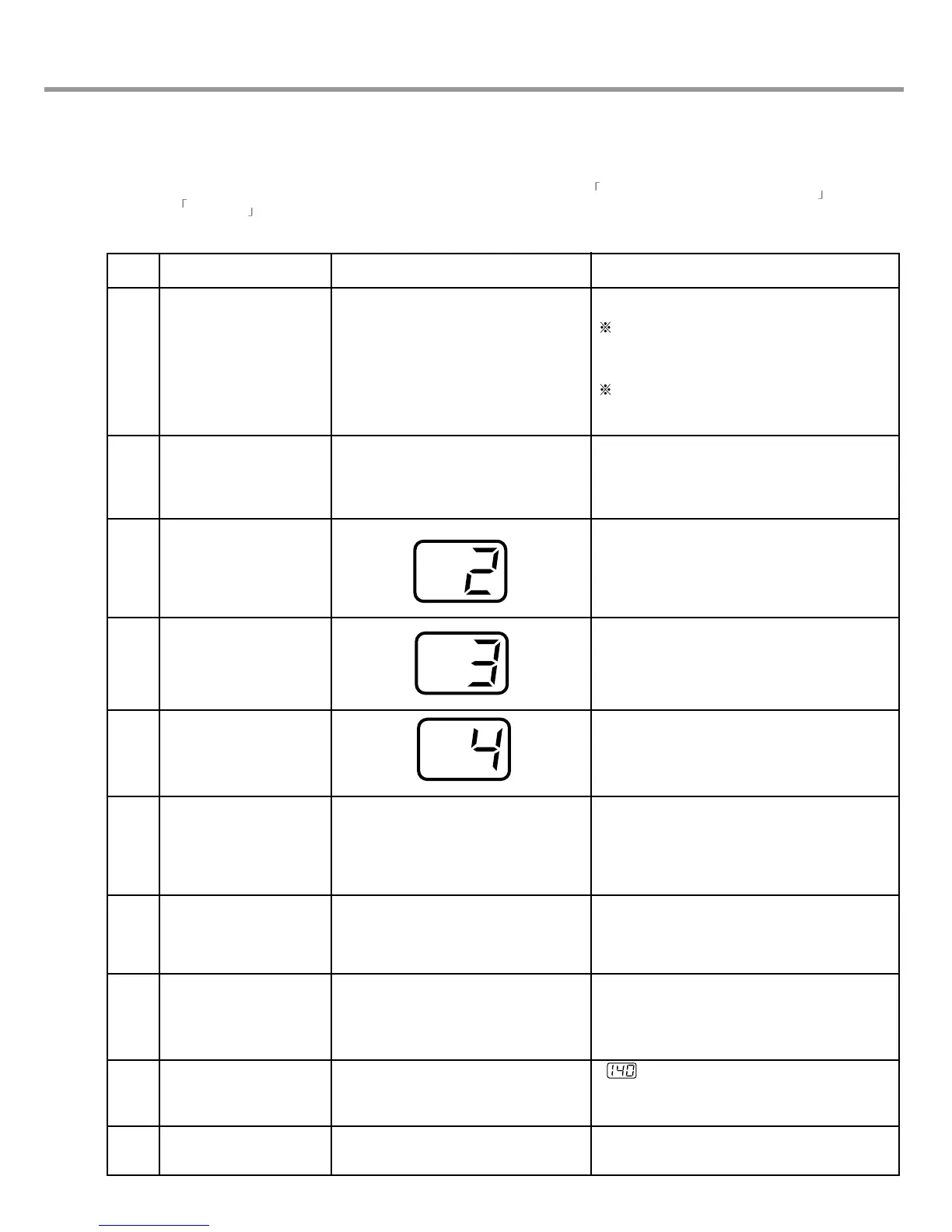

4-5. TEST RUNNING WITHOUT WATER
1) METHOD TO USE QC TEST MODE
• To use the CHECK PROGRAM (QC TEST MODE),while pressing the WATER LEVEL&WATER TEMP. buttons,
press the
POWER button.Do not deposit any laundry in the wash tub while in this mode.
• In QC TEST MODE all LEDs are on and press START(PAUSE) button to check over the following items.
NO CHECK METHOD DISPLAY CHECK ITEM
1
2
3
4
5
6
7
8
9
10
Initial state
Press once
Press twice
Press 3 times
Press 4 times
Press 5 times
Press 6 times
Press 7 times
Press 8 time
Press 9 time
• Water level frequency is on
DISPLAY in the condition of no
water in TUB.
• After detecting laundry amount
the number of pulse is on the
DISPLAY.
• After detecting atmosphere
temperature the number is on the
display
• After detecting IPM’s heat sink
temperature is the number is on the
DISPLAY.
• The AC power supply voltage is
the DISPLAY
• Auto OFF
• All LEDS ON.
64~70 DISPLAY.
(The meaning of 64~70 number is
26.4~27.0kHz really)
The display differ from function.
• Laundry amount test.
• COLD water ON.
• HOT water ON.
• SOFTENER INLET water ON.
• If the LID is opened, [DOOR OPEN]
is on the DISPLAY. In that case, close the
LID.
• DRAIN PUMP on.
• this means 240V
• The display voltage twice rating voltage
(110~127V only)
• All LEDs off.

LG WT-R10(~3)3(7)1(3,5)TP(H) Specifications

General

Power Sourse	Refer to rating label on the back of Washer
Input	Refer to rating label on the back of Washer
Rating of Fuse	250V, 8A for 220~240V/50Hz 125V, 12A for100~127V/60Hz
Auto Power Off	Applied
Capacity	Refer to rating label on the back of Washer
Spin Speed	710 50
Lint Filter	Double
Softener Dispenser	Applied
Detergent Dispenser	Applied
Bleach Inlet	Applied
Inner Tub	Stainless
Inlet Water Pressure	0.3kgf/cm2~ 8kgf/cm2
Water Level	7 Stages
Reservation	Available for 3 ~ 24 Hr
Program	DELICATE, WOOL, NORMAL, SPEEDY, JEAN
Lid Interlock Switch	Magnet Sensor
Child Lock	Applied

Weight and Dimensions

Dim.	Refer to rating label on the back of Washer
Weight	Refer to rating label on the back of Washer
