64
64
■
1050 HDD
Ch5.
Removi
ng and
repl
acin
g a part

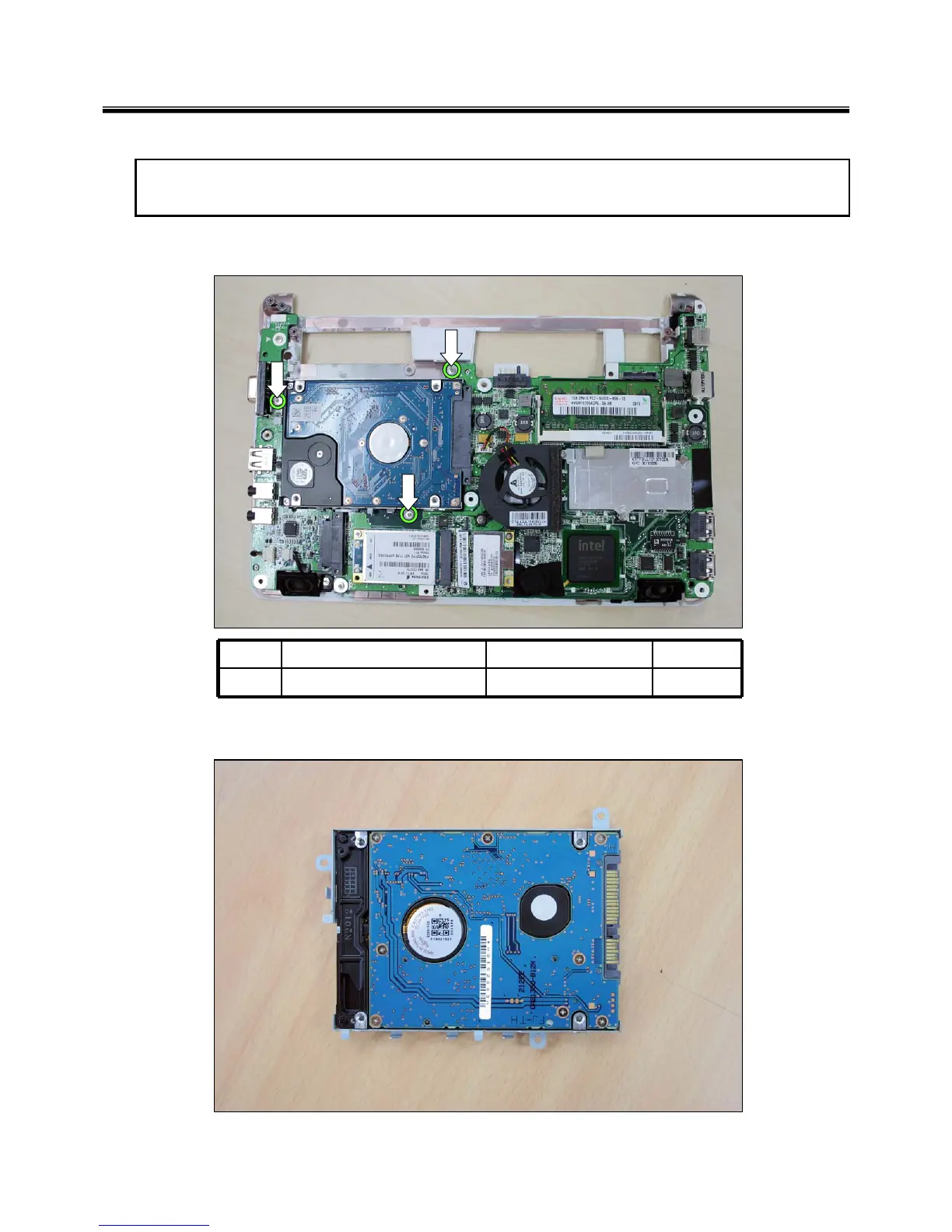

1. Remove the 3 screw.
No.
FRU No.
Specification
Qty
1
FAB30208501
( M2.0*3.0) White
3EA
2. Remove the HDD
※
Remove the f
ollowing p
arts in or
der befor
e replaci
ng this par
t
a. Battery Pack(1010), b. Hi
nge
/ Keyb
oard(1020) , c. Bottom Ca
se(1030)
63
65
Table of Contents
Table of Contents
2
Strategy for Replacing Parts (FRU-Field Replaceable Units)
3
Strategy for Replacing a Hard-Disk Drive
3
Ch1. Service Information
3
Safety Notices
4
Safety Information
5
General Safety
5
Electrical Safety
6
Safety Inspection Guide
8
Handling Devices that Are Sensitive to Electrostatic Discharg
9
Grounding Requirements
9
When Handling ESD-Sensitive Parts
9
Backup (Standby) RTC Battery Safety Information
10
Laser Compliance Statement
10
Before You Go to the Checkout Guide
11
Left View
13
Right View
13
Ch2. Locations
13
Front View
14
Product View
14
Ch3. System Information
15
Specification
15
System Block Diagram
17
Fn Key Combinations
18
Status Indicators
19
Wireless Lan/Bluetooth Lamp
20
BIOS Flash
21
BIOS Release Process and Making Bootable CD
24
BIOS/EC Flash Process
28
BIOS Setup
31
Using the Keys
32
Main Menu
33
Advanced Menu
34
Security Menu
35
Boot Menu
36
Info Menu
37
Exit Menu
38
Backup and Restore Security Platform Data
39
Backup Scope
39
Personal Secure Drive
40
Restoration Cases
40
How to Backup and Restore
41
Infineon Platform Security Backup
42
Power System Checkout
43
Checking the AC Adapter
43
Ch4. Symptom-To-Part Index
43
Checking Operational Charging
45
Checking the Battery Pack
45
If the Voltage Is Acceptable
45
Characteristics of the Battery Pack
46
To Check the Battery Pack
47
Numeric Error Codes
48
Error Message
51
LCD-Related Symptoms
52
Indeterminate Problems
53
Ch 5. Removing and Replacing a Part (FRU)
54
1010 Battery Pack
55
1020 Hinge / Keyboard
56
1030 Bottom Case
59
1040 LCD Assembly
62
1050 Hdd
64
1060 Mainboard
66
1070 Bluetooth Module
68
1080 Speaker
69
1090 CPU Fan Assembly
70
1100 HSDPA Module
71
1110 WLAN Module
72
1120 DIMM
73
1130 LCD Front Case
74
1140 LCD Panel
75
1150 LCD Cable
77
1160 Web Cam Module
78
Ch 6. Part List
79
LCD Diagram
83
LCD Parts List
84
Key Deck Diagram
86
Key Deck Parts List
87
Main Diagram
88
Main Parts List
89
Other Parts
91
5
Based on 1 rating
