1. Introduction MMX4x2 series – User's Manual 9
Description
one HDBaseT
TM
compatible TPS input port. It has two independent HDMI outputs. The HDMI model has four
HDMI inputs and two independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a
served by the USB, RS-232, IR (in and out) and Ethernet ports.
MMX4x2-HDMI-USB20-L Model
The model has four HDMI inputs and two independent HDMI outputs, as well as a USB 2.0 layer that provides
the switching of four external USB peripherals (USB devices such as webcamera, speakerphone, multitouch
display, etc.) to four independent host computers or laptops.
as set in the Event Manager. For example, the last connected USB laptop can be
supply for USB peripherals ON or OFF.
HDMI connectors are 4K capable, HDCP compliant, and additional control options are served by the USB,
RS-232, IR (in and out), Ethernet and GPIO ports.
Model Denomination
About the Serial Number
following:
MMX4x2-HDMI-USB20-L
4 inputs and 2 outputs With USB 2.0 interface
Large enclosure
Multimedia matrix HDMI: model with HDMI-type I/O ports
HT200: model with one TPS input
7A000941
7=2017
8=2018
A=2020
B=2021
D=2023
E=2024
6-digit running sequence number
Month of the manufacturing:
Year of the manufacturing:
(3-9, A-Y)
1: Jan
2: Feb
3: Mar
4: Apr
5: May
6: Jun
7: Jul
8: Aug
9: Sep
A: Oct
B: Nov
C: Dec
Compatible Devices
phased out TPS-90 extenders.
The MMX4x2-HT200 matrix is
compatible with any third-party
HDBaseT
TM
device.
HDBaseT
TM
and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

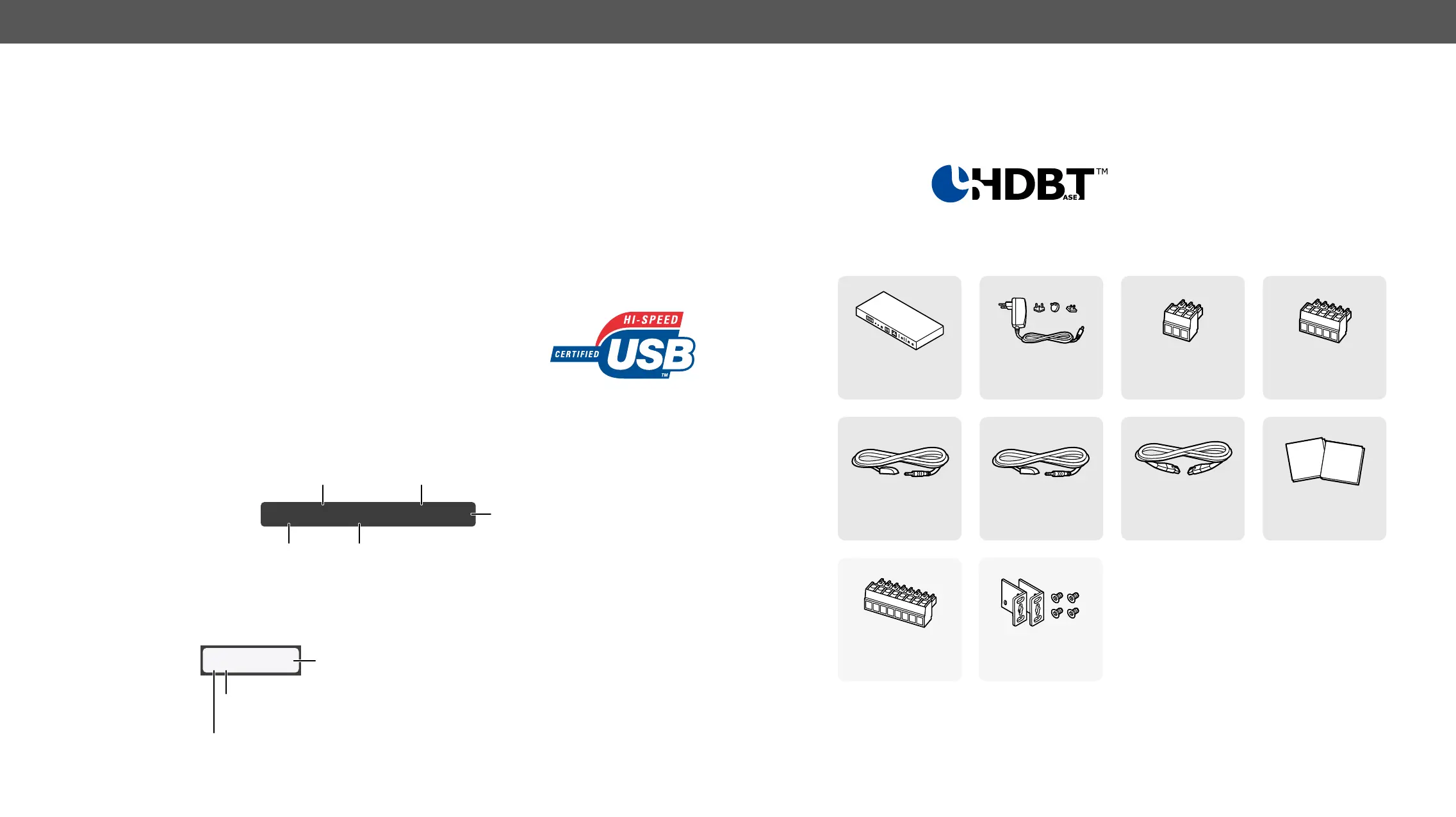

Box Contents
1
2
Phoenix
®
Combicon
3-pole connector
1
interchangeable plugs
MMX4x2 series
matrix
Infrared detector unit
Rack ears (2x) with
M4x8 screws (4x)
2
Infrared emitter unit
Phoenix
®
Combicon
8-pole connector
2
Phoenix
®
Combicon
UTP patch cable
(3 m)
Safety and
Warranty
Info
Quick
Start
Guide
