8. MOUNT SENSORS
SET SENSOR SWITCH
★ A switch on the bottom of the door/window
sensor selects instant or delayed response.
☞If the sensor is going to be used on your
primary entry/exit door make sure that the
switch is in the DELAYED position.
☞If the sensor is going to be used on a
window or a door that is not going to be
used to enter and exit the premises, slide the
sensor switch to INSTANT.
APPLY DOUBLE-STICK TAPE
☞Apply double-stick tape (supplied) to back of
sensors and magnets.
★ Screws are also provided to mount sensors
and magnets.
★ Screws are preferred over the double-stick
tape in permanent installations.
✍ NOTE: Double-stick tape is not allowed in
UL installations.
14 OF 40

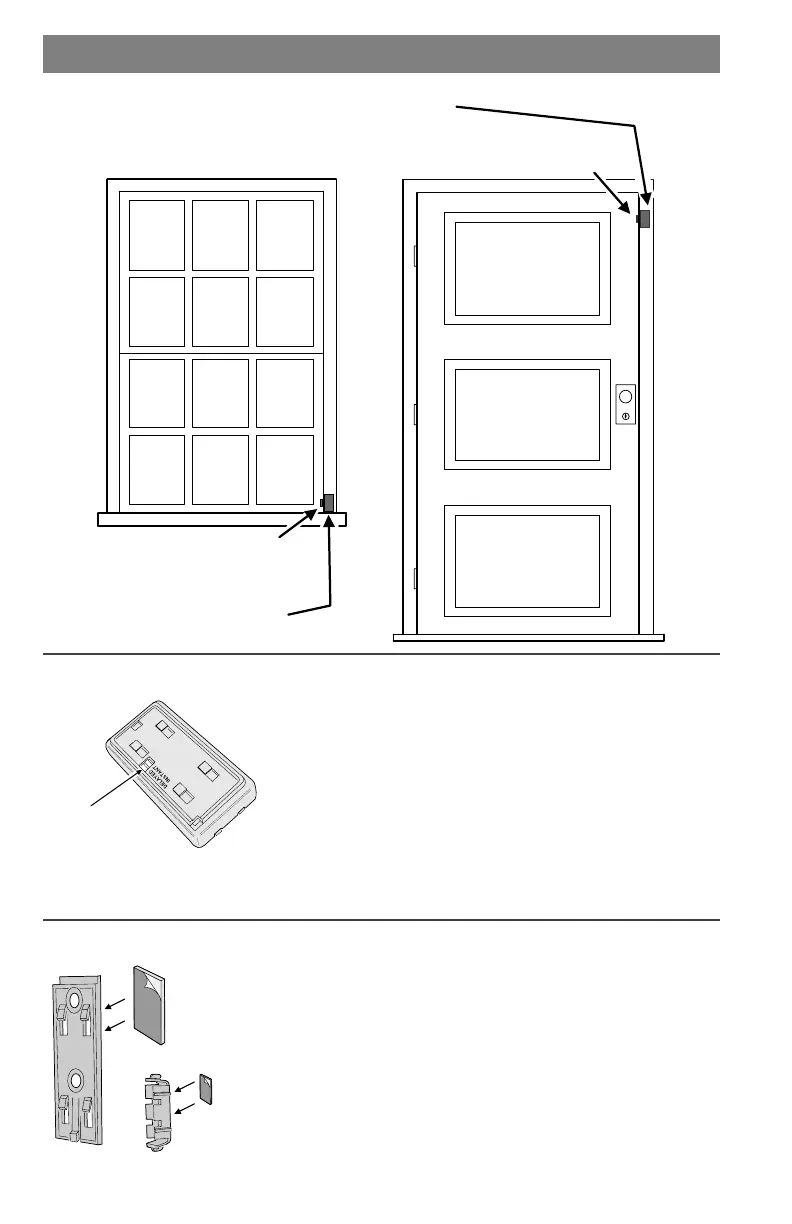

SLIDE SWITCH
TO THE INSTANT
OR DELAYED
POSITION
MAGNET
ON WINDOW
SENSOR
ON FRAME
SENSOR
ON FRAME
MAGNET
ON DOOR
APPLY
DOUBLE-STICK
TAPE TO BACK
OF SENSOR
AND MAGNET
MOUNTING
PLATES
