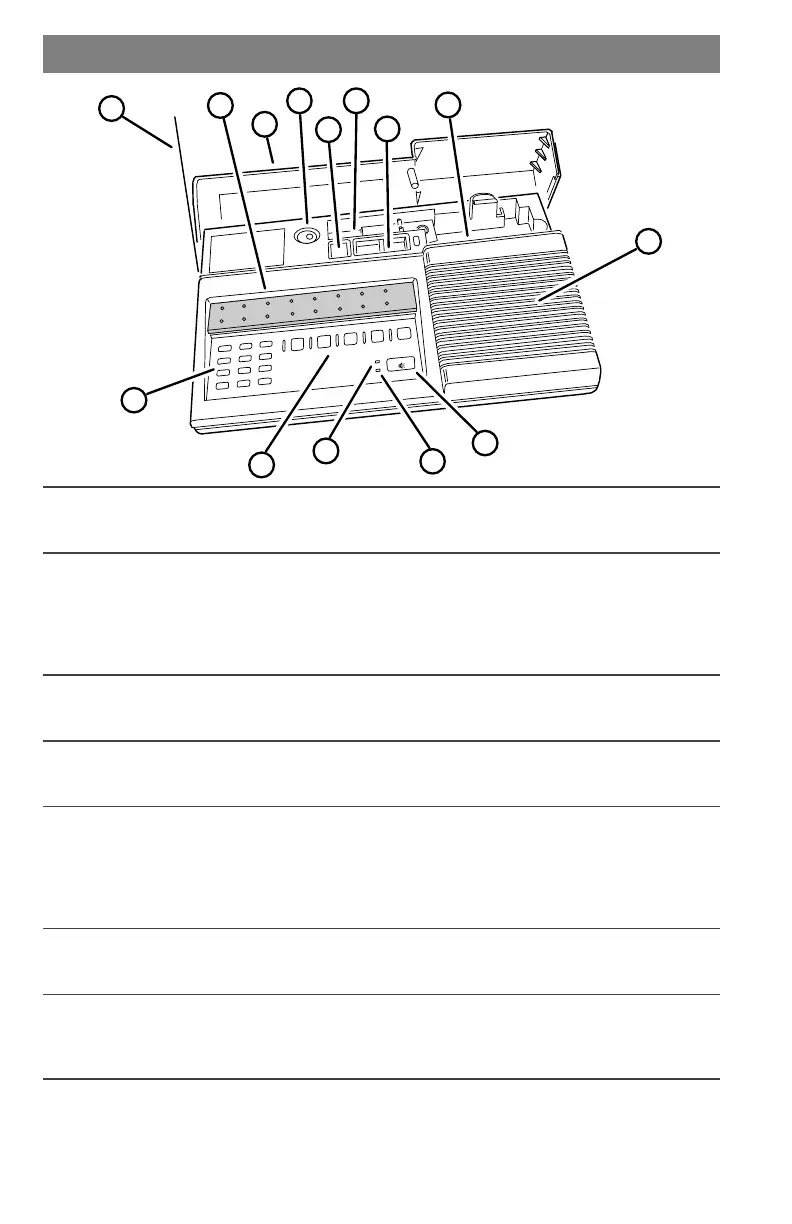

4. CONSOLE FEATURES
1ANTENNA
★
Receives signals from the system’s sensors.
★
Can be rotated towards the top of the Console case for wall mounting.
2 STATUS INDICATORS
★
Indicates the status of each of the system’s sensors.
★
Lights show which doors and windows are open.
★
Lights flash to display sensors that have caused an alarm.
★
Lights blink to show any sensors that have a low battery.
★
Stick-on labels are provided to identify your custom sensor locations.
3 HINGED TOP COVER
★
Flips open to access special system features.
★
Can be locked closed for system security.
4 VOLUME CONTROL
★
Varies the volume of the advisory tones that come from the speaker.
★
Does
not
affect internal or accessory sirens (they are always full volume).
5 LEARN BUTTON
★
Used to place the Console into the Learn Mode.
★
Learn Mode is used to add additional sensors to the system (up to 16 total).
★
Your secret code can be changed using Learn Mode.
★
Various advanced system programming options can be made in Learn
Mode.
6 TERMINAL BLOCK
★
Terminals for connection to an optional external siren speaker.
★
Home Automation Output to connect to a Home Automation controller.
7 FUSE HOLDER
★
Holds fuse for the backup battery.
★
If the POWER light is flashing and the optional backup battery is
installed and charged, check this fuse. (Pull fuse holder straight up.)
8 BACKUP BATTERY LOCATION
★
Space for optional backup battery. (Highly recommended.)
★
Backup battery is automatically charged and monitored by the Console.
★
Backup battery can power the Console for up to 6 hours.
8 OF 40
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Defiant SSD DF-16 Owner’s Manual
Linear P/N: 208968 C
Material: 20# White Mead Bond with 60# White Coated Cover
Ink: PMS 548 (Blue/Gray)
Size: 8 1/2" x 5 1/2"
6
