ATTACH SENSORS AND MAGNETS
✍ On doors, mount sensor to door frame and
magnet to door.
✍ NOTE: Magnet must line up with mark on
sensor case both horizontally & vertically.
☞Allow a maximum of 1/2" between magnet
and sensor when door/window is closed.
☞Snap sensor onto mounting plate.
☞On windows, mount sensor to window frame
and magnet to window.
☞Snap sensor onto mounting plate.
☞Use optional magnet spacer when surfaces
are uneven.
TEST SENSORS
☞Open door or window.
◗ Verify that light on the sensor glows
momentarily when door/window is opened.
◗ Console in Chime Mode should “ding-dong”
when the sensor sends signal.
◗ Status indicator on Console should remain
lit for each door/window sensor that is left
open.
✍ NOTE: The two door/window sensors
supplied with the Console are
pre-programmed into the Console’s memory
as sensors #1 and #2.
15 OF 40

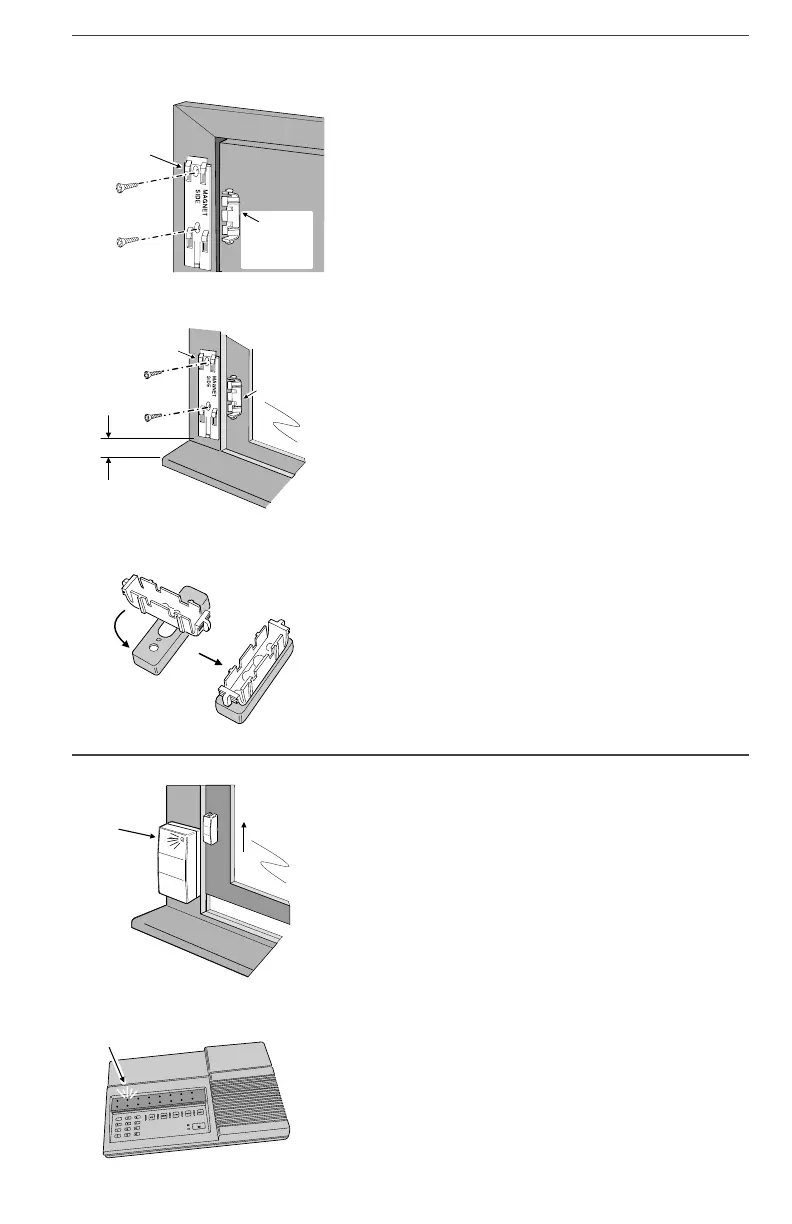

MOUNT SENSOR
PLATE TO FRAME
ALIGN MAGNET
PLATE NEXT TO
SENSOR PLATE
AND ATTACH TO
DOOR
1/2" MAXIMUM
SPACE BETWEEN
SENSOR AND
MAGNET PLATES
SNAP SENSOR ONTO
MOUNTING PLATE
1/2" MINIMUM
MOUNT SENSOR
PLATE TO FRAME
ALIGN MAGNET
PLATE NEXT TO
SENSOR PLATE
AND ATTACH TO
WINDOW
SPACE BELOW
PLATE IS REQUIRED
TO SNAP SENSOR
ONTO PLATE
SNAP SENSOR ONTO
MOUNTING PLATE
SENSOR LIGHT
SHOULD
GLOW FOR
TWO SECONDS
OPEN DOOR
OR WINDOW
CONSOLE IN
CHIME MODE
SHOULD DING-DONG
E
M
E
R
G
E
N
C
Y
1
STATUS INDICATOR
SHOULD LIGHT
WHEN SENSOR IS OPEN
USE SPACER WHEN
SURFACES ARE
UNEVEN
HOOK SPACER TO
MAGNET PLATE
AND ROTATE TO
LOCK IN PLACE
