15. HOME AUTOMATION OUTPUT
HOME AUTOMATION INTERFACE
★ The Console provides a Home Automation
Output to control lights, devices and
appliances.
★ Home Automation Output can connect to
most popular home automation devices and
other simple electronic devices.
☞Press [AUTO] to turn the Home Automation
Output on, press [AUTO] again to turn it off.
PROGRAMMABLE OPTIONS
★ There are many programmable options for
the Home Automation Output. See the
Advanced Programming Section of this
manual for details.
24 OF 40
X-10
BURGLAR ALARM
INTERFACE
(CAN CONTROL
HOUSE LIGHTS
THROUGH X-10
SYSTEM)
X-10
DF-18
RELAY MODULE
YOUR
LOAD
POWER
SOURCE
LIGHT
EMITTING
DIODE
(L.E.D.)
LEARN
HOME AUTOMATION
OUTPUT TERMINALS
(INSIDE CONSOLE)
MINUS TERMINAL WILL SWITCH
TO GROUND WHEN HOME
AUTOMATION OUTPUT
IS ACTIVATED
POSITIVE TERMINAL PROVIDES
+12 VOLTS DC AND IS CURRENT
LIMITED AT 30 MILLIAMPS MAXIMUM

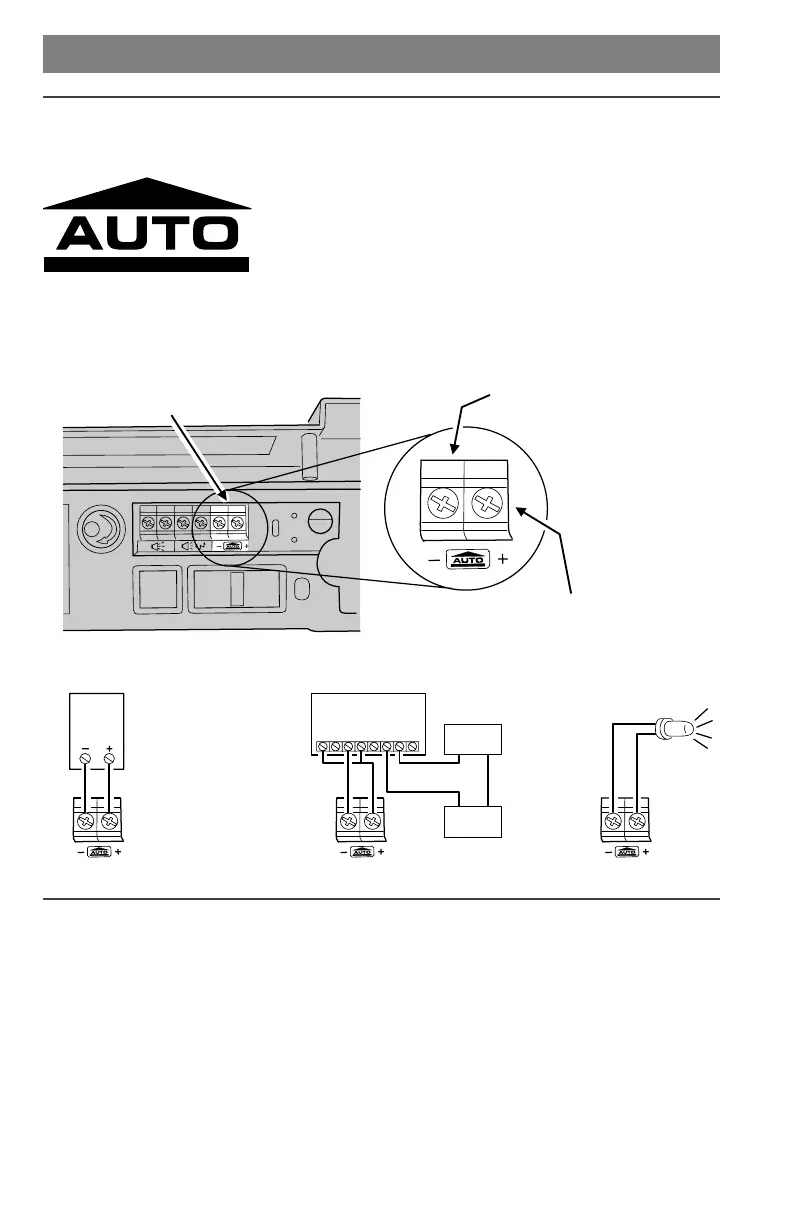

EXAMPLE HOME AUTOMATION HOOK-UPS
