62
Chapter 6: Set Up and Configure the Router
Wizard Tab
10/100 4-Port VPN Router
5. The next screen to appear is Figure 6-65. Select the log from the drop-down menu, Log packet match this
rule or Not log. Click Next to continue. Click Previous if you want to return to the previous screen. Click Exit
if you want to exit the wizard.
6. The next screen to appear is shown in Figure 6-66. Select the Source from the Ethernet drop-down menu.
Then, select the users from the drop-down menu, Any, single, or Range. Click Next to continue. Click
Previous if you want to return to the previous screen. Click Exit if you want to exit the wizard.
7. The next screen to appear is Figure 6-67. Select the destination, either Any, Single, or Range, from the
drop-down menu. Click Next to continue. Click Previous if you want to return to the previous screen. Click
Exit if you want to exit the wizard.

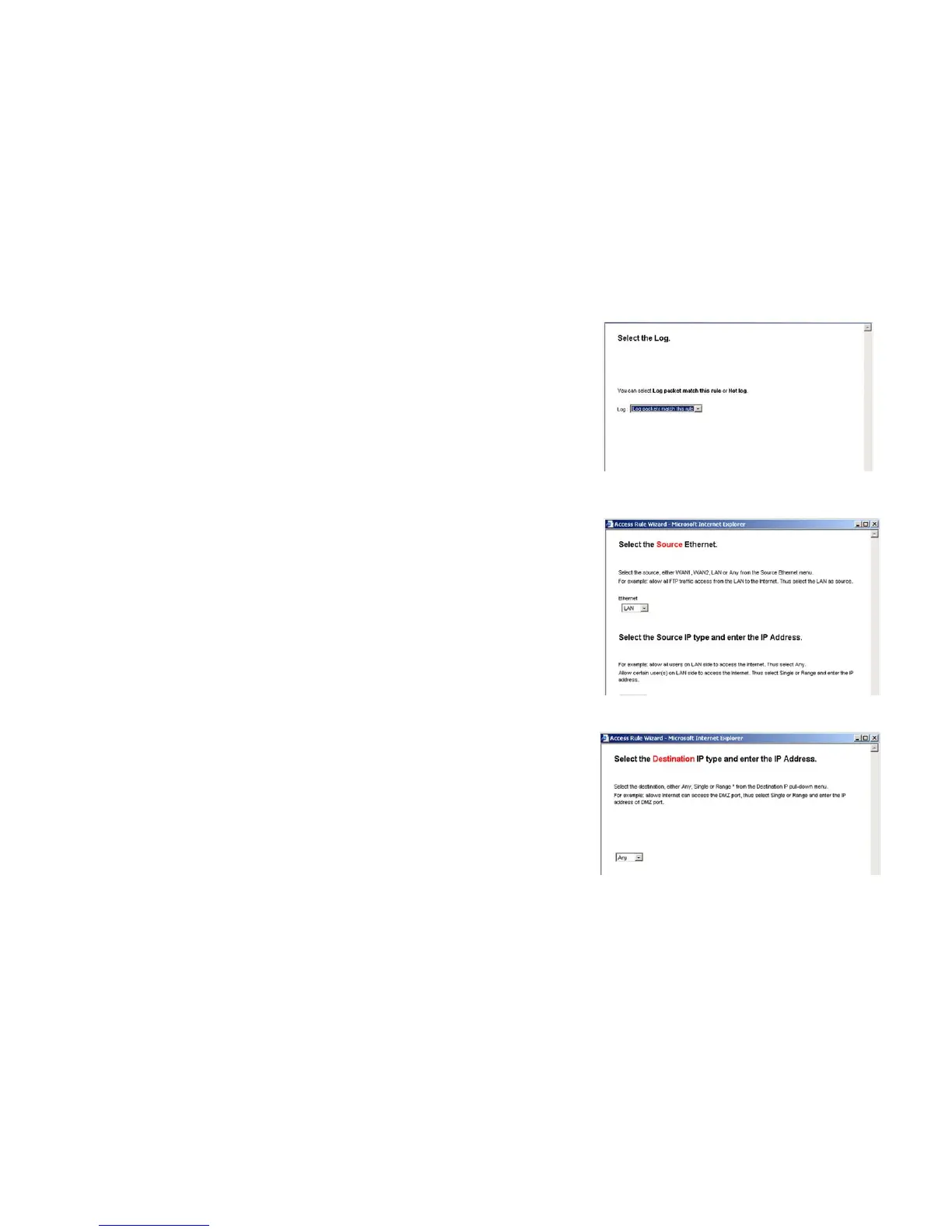

Figure 6-65: Select the Log
Figure 6-66: Select the Source
Figure 6-67: Select the Destination
