5
lci1.com 574 - 537- 890 0 Rev: 11.16.18
Solera
®
Classic Awning
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001254
NOTE: All screws supporting the awning assembly MUST
have a backer within the structure of the wall of the unit. Refer
to unit’s manufacturer for proper backer location.
5. Repeat step 3 for the other end of the awning.
Installing the Awning
1. Measure the distance from the awning rail channel to the lower
mounting bracket fastening point.
2. Compare the distance from the center of the roll tube and the
support arm assembly foot to the measurement in step 1 and
adjust the support arm assembly to make both distances equal.

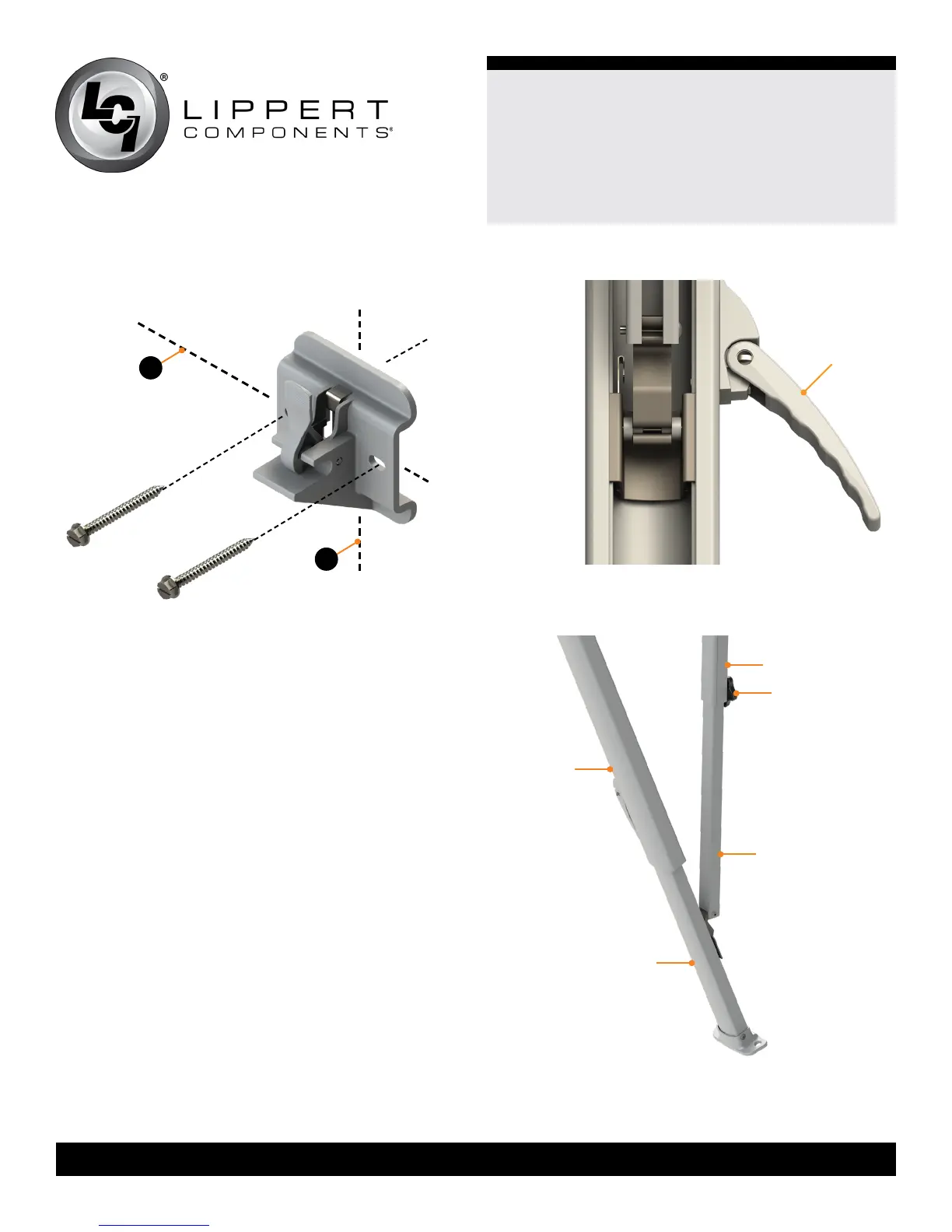

A. Open the support arm assembly handle (Fig.5) and slide the
outer arm lower channel (Fig. 6, Channel #2) up or down to
desired height.
B. Close the handle and slide the outer arm lower channel
(Fig. 6, Channel #2) until the locking pin clicks into the nearest
positioning hole.
Fig.5
Fig.6
Channel #1
Channel #2
Channel #3
Channel #4
Locking Knob
Support Arm
Assembly
Handle
Fig.4
A
B
