5 -23

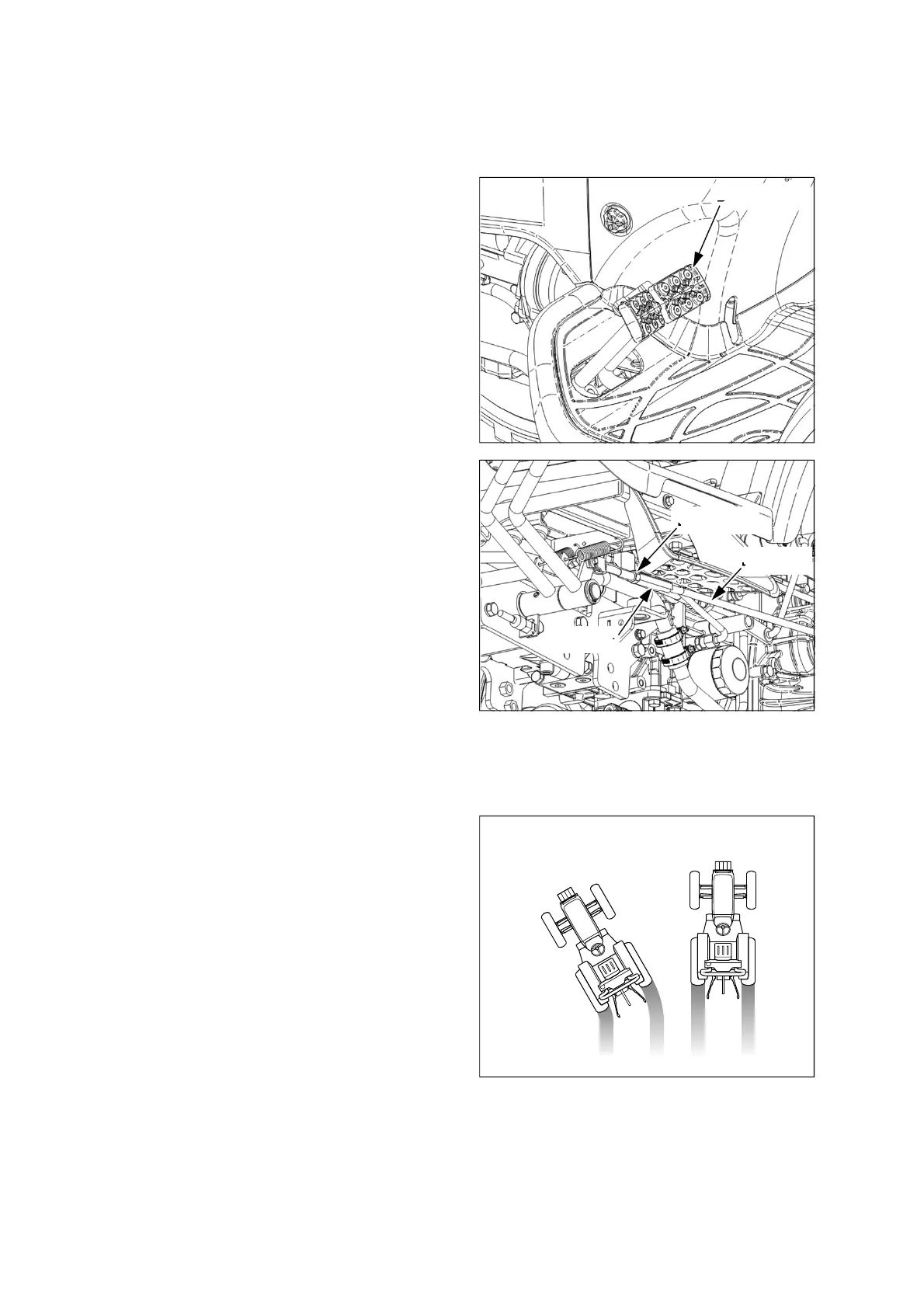

(10) Adjustment of Brake pedal play
Left/ Right brake distance
is different.
Normal
Checking the brake distance.
1. Check the skid marks of the tires or stability of
the tractor while driving at a suitable speed.
2. If the braking distances of the left and right
wheels are different each other as shown in the
right figure, adjust the brake rod again.
3. If the vehicle is turned to the left-hand side when
checking the braking distance, loosen the left-
hand brake rod or tighten the right-hand brake
rod with checking the brake pedal play distance.
Brake rod
Locking nut
Adjuster
Check the distance of the brake pedal play.
If the brake pedal play is larger than normal
distance, the performance of the brake and
parking brake system can be decreased. If it is
smaller than normal distance, the transmission
oil temperature is increased abnormally because
of the operation with the brake disks are
engaged, and it may cause damage to the
packing in the transmission.
Normal distance: 35~50mm (1.4~2.0 in)
If the brake pedal play distance is more or less
than normal distance, adjust it as below.
1. Loosen locking nuts of the left-hand brake rod
and turn adjuster to the left/right-hand direction.
2. If the brake rod is tightened, the pedal play will
be decreased, and if loosened, it will be
increased.
3. After adjusting the pedal play, tighten the locking
nuts.
4. Adjust the right-hand brake rod in the same way.
5. Check if the brake distances of the left and right
brakes are same as below.
Brake pedals
