3 -23
Loader up
Loader down
Bucket up
Bucket dump
Bucket floating
<Meaning of symbols>
Locking lever
(safety device)
Lock
▶To prevent an accident, push and lock the locking lever when you do not use the
joystick lever.
Warning
Warning
▶Before removing hydraulic pipes or hoses and other parts, make sure to check that
hydraulic pressure is relieved completely. The leaks of pressurized oil can cause a
fatal physical injury.
▶Use proper protection equipment, before servicing the hydraulic system.
▶Before connecting or disconnecting the hydraulic quick couplers, lower the
implements to the ground, and check that the hydraulic pressure is relieved.

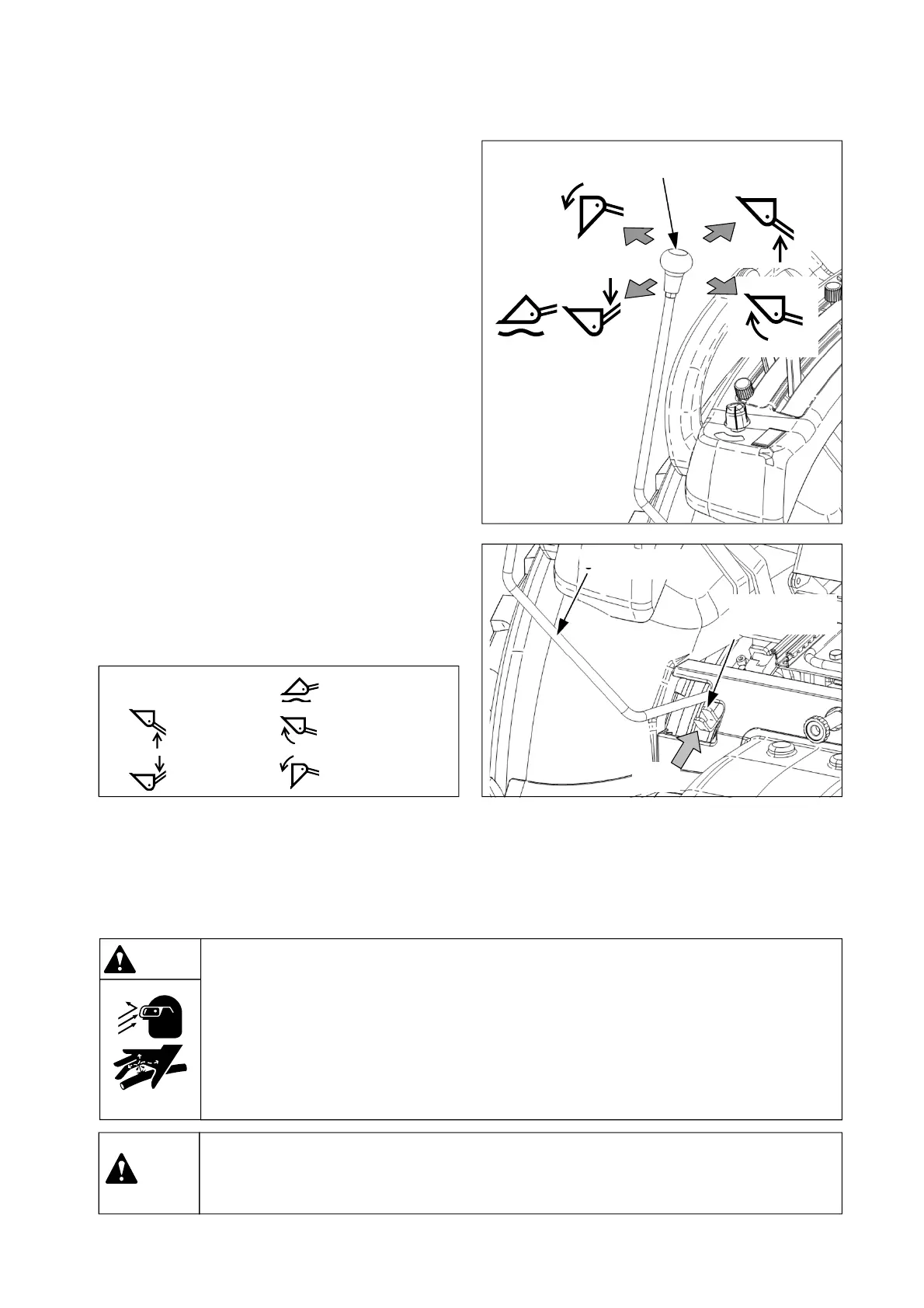

(5) Joystick lever
Multi-functional joystick lever helps to operate
the front loader comfortably.
The joystick lever can be operated basically in
four directions as shown in the right figure.
If you move the joystick lever diagonally, loader
and bucket shall be operated at the same time.
In this case, the light loaded cylinder may be
moved first.
If you want to float the bucket along the ground,
lower the front-end loader and push forward the
joystick lever to the floating position.
After finishing work, pull the lever and place it in
neutral position.
Locking lever as shown in the right figure is used
to lock the joystick lever.
- Pull from the joystick : Unlock
- Push to the joystick : Lock
For further information, See chapter 4-5 –(7),
“Using Front-end loader” in this manual.
Joystick lever
Joystick lever
