3 -17
Middle PTO lever

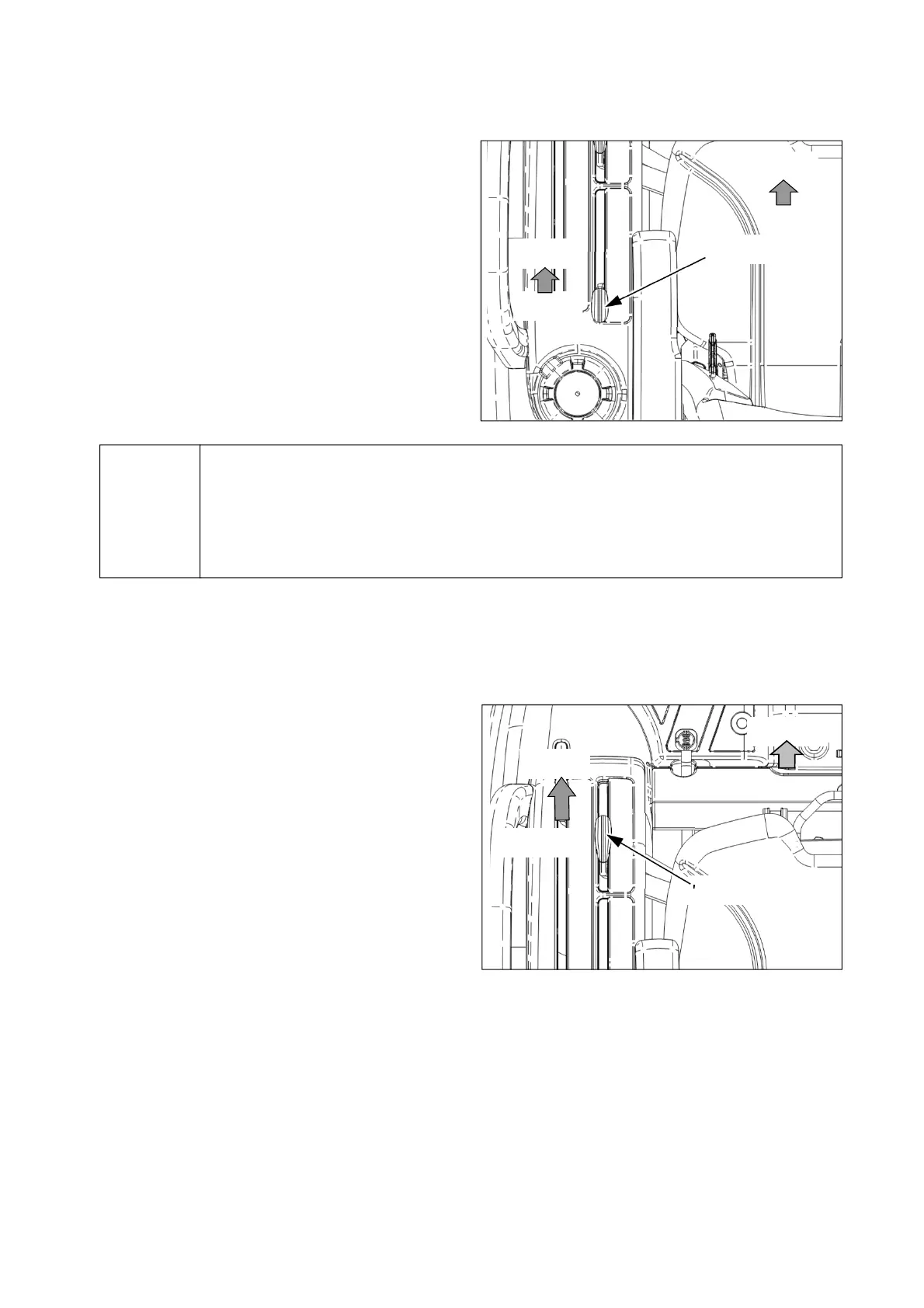

(6) Rear PTO lever
It is used to engage/disengage the rear PTO
gear. 540 RPM gear and neutral position is
available.
Before operating the rear PTO lever, depress the
clutch pedal and put PTO switch to “OFF”
position, and stop the PTO shaft completely.
Push the rear PTO lever forward to engage the
540 RPM gear, and pull the lever rearward to
disengage the rear PTO.
For further information about the PTO shaft, see
chapter 4-5-(2) in this manual.
540rpm
Neutral
Notice
▶ Operate the PTO gear lever by correct “I” pattern. If operated diagonally, it may
cause a failure.
▶If the PTO gear lever is not engaged smoothly, shift the lever again after lifting up
the implement from the ground to align the drive shaft.
Forward
(7) Middle PTO lever
It is used to engage/disengage the middle PTO
gear.
Before operating the middle PTO lever, put PTO
switch to “OFF” position and stop the PTO shaft
completely.
Push the middle PTO lever forward to engage
the middle PTO gear, and pull the lever rearward
to disengage the middle PTO gear.
For further information about the PTO shaft, see
chapter 4-5-(2) in this manual.
Engage
Forward
Rear PTO lever
Disengage
