MAAX Utile User Manual

13
3

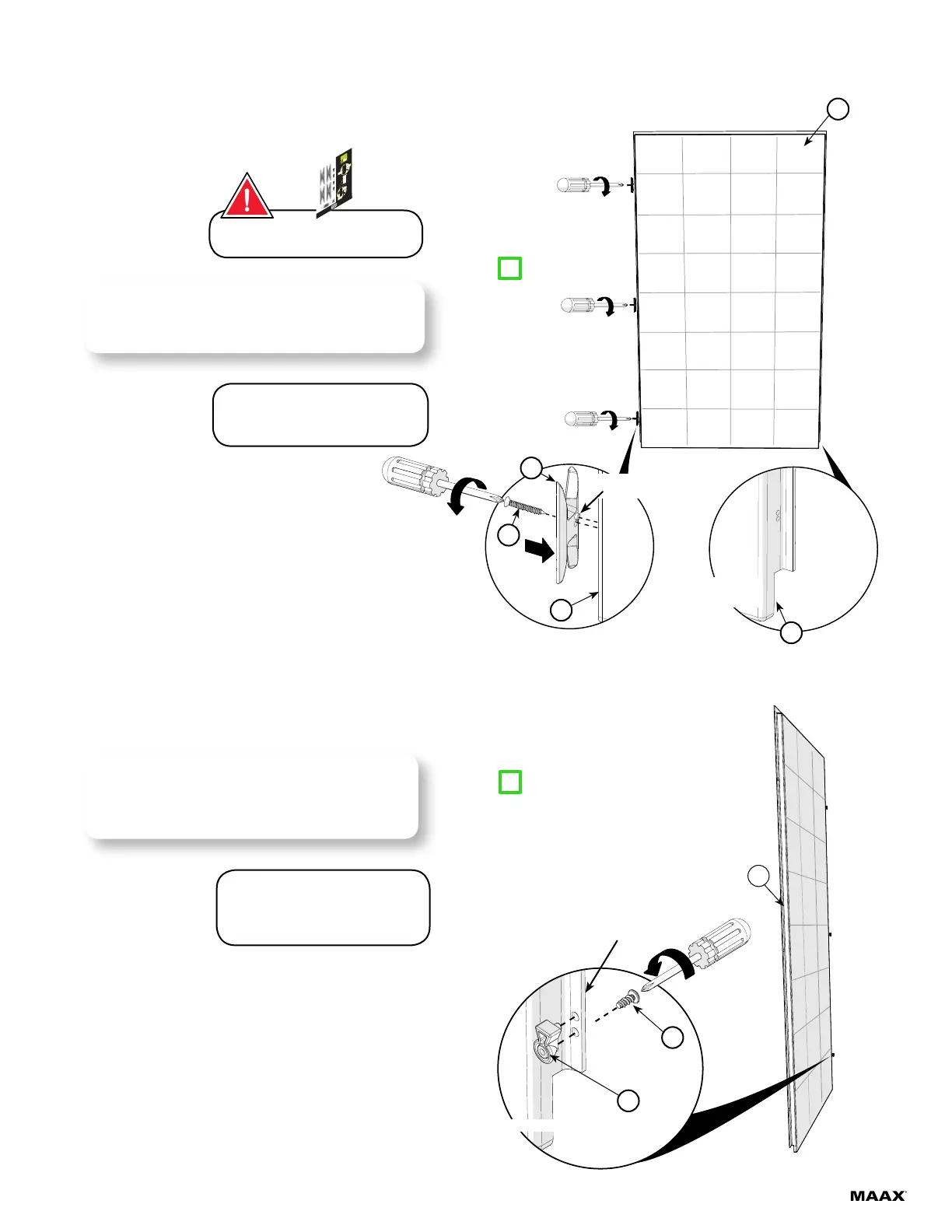

STEP Installing Ulok system
on the walls
Install three X fasteners (1) on the side of the back wall
(14) that will be assembled with the side wall, in the pre
drilled holes using the screws provided (2).
Quick tip 
14
Back wall
1
14
2
14
This side
down
4
3
The side wall is interchangeable.
For wall to the left, install the pins
on the right side, for wall to the right
install the pins on the left side.
Quick tip 
Side wall
15
Fastening ange
3.1
Check me!
3.2
Check me!
This side down
There is a positioning pin on X
fastener so they can only be
installed one way.
Positioning
pin
Fasten 3 retraction pins per side wall in the pre drilled
holes with the screws provided (4) to the left-hand or right-
hand fastening ange of the side walls (15) depending on
which side the wall will be installed on.
The Ulok system parts are in the
side wall boxes. (1 pack per box)
www.maax.com
10060303 – ULOK Skin pack for Utile - 1 junction
3
1
2
4
1
2
BACK WALL
MUR ARRIÈRE
MURO POSTERIOR
INSIDE VIEW
VUE INTÉRIEURE
VISTA INTERIOR
SIDE WALL
MUR DE CÔTÉ
MURO LATERAL
3
4
INSIDE VIEW
VUE INTÉRIEURE
VISTA INTERIOR
by/par
MAAX
* Extra parts are included in this pack in case of loss or damage
* Des pièces supplémentaires sont incluses en cas de perte ou bris
* Piezas extras están incluidas en este empaque en caso de perdida o daño
