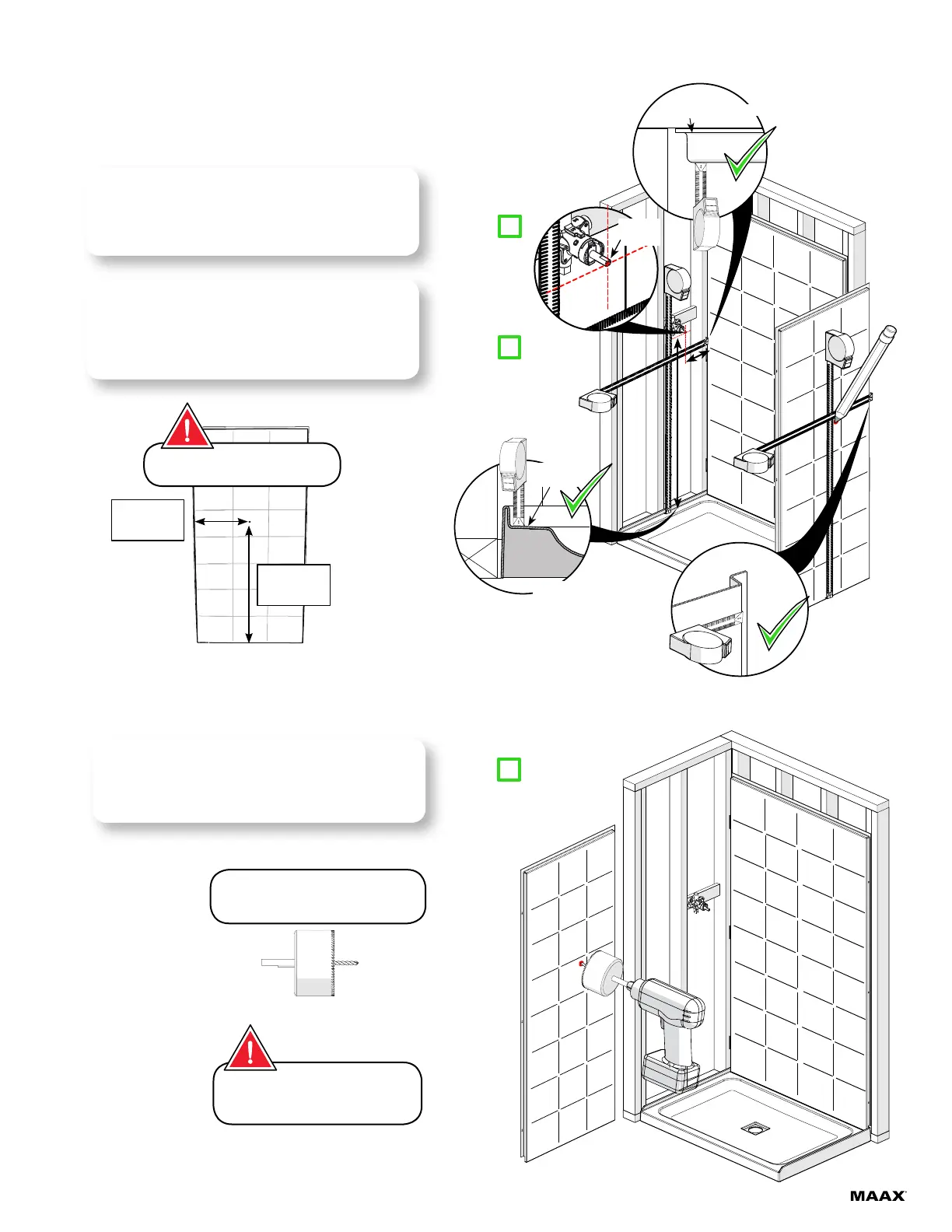

Measure the distance between the front face of the back
wall (14) and the center of the faucet. Then measure the
distance from the top of the base threshold to the center
of the faucet.
Quick tip
Hole saws can be rented at your
local hardware store or any tool
rental location.
Faucet
center
Using those two measurements mark the position of the
faucet hole on the remaining side wall. Measure from the
side and bottom of the side wall.
Repeat this process for all required faucet holes.
5.2
Check me!
5.1
Check me!
5.3
Check me!
Base
threshold
Front cut
view
Back
wall
Top view
5
STEP Temporary installation of the side wall
For safe hole saw usage always
pre-drill a hole and wear safety
glasses when drilling.
Drill a hole from front for the faucets at the previously
marked positions. Pre-drill the hole with the ⅛'' drill bit.
The hole saw size is determined by the faucet type; refer
to the faucet installation manual for hole saw size.
Measure twice, drill once !
Record measures below.
