Shims and cement
Cales et ciment
Cuñas y cemento
9
If needed use wooden shims between the studs and
the fastening ange to maintain the position of the
base.
FOR B3 BASES YOU MAY USE SHIMS UNDER
THE BASE TO LEVEL (UNDER THE BASE LEGS
IDEALLY)
With a 1/8" bit, drill holes in the fastening ange then
secure the base to all the wall studs with #8 x 1¾ "
screws (not included). Only pre-drill the flange not
the studs.
HAND TIGHTEN ONLY !
THE BOTTOM OF ALL HOLES IN THE FLANGE
HAVE TO BE AT LEAST 8MM (3/8") ABOVE THE
BASE THRESHOLD! HOLES MUST BE FILLED WITH
SILICONE BEFORE SCREWING
CUT THE EXCESS PART OF SHIMS
2

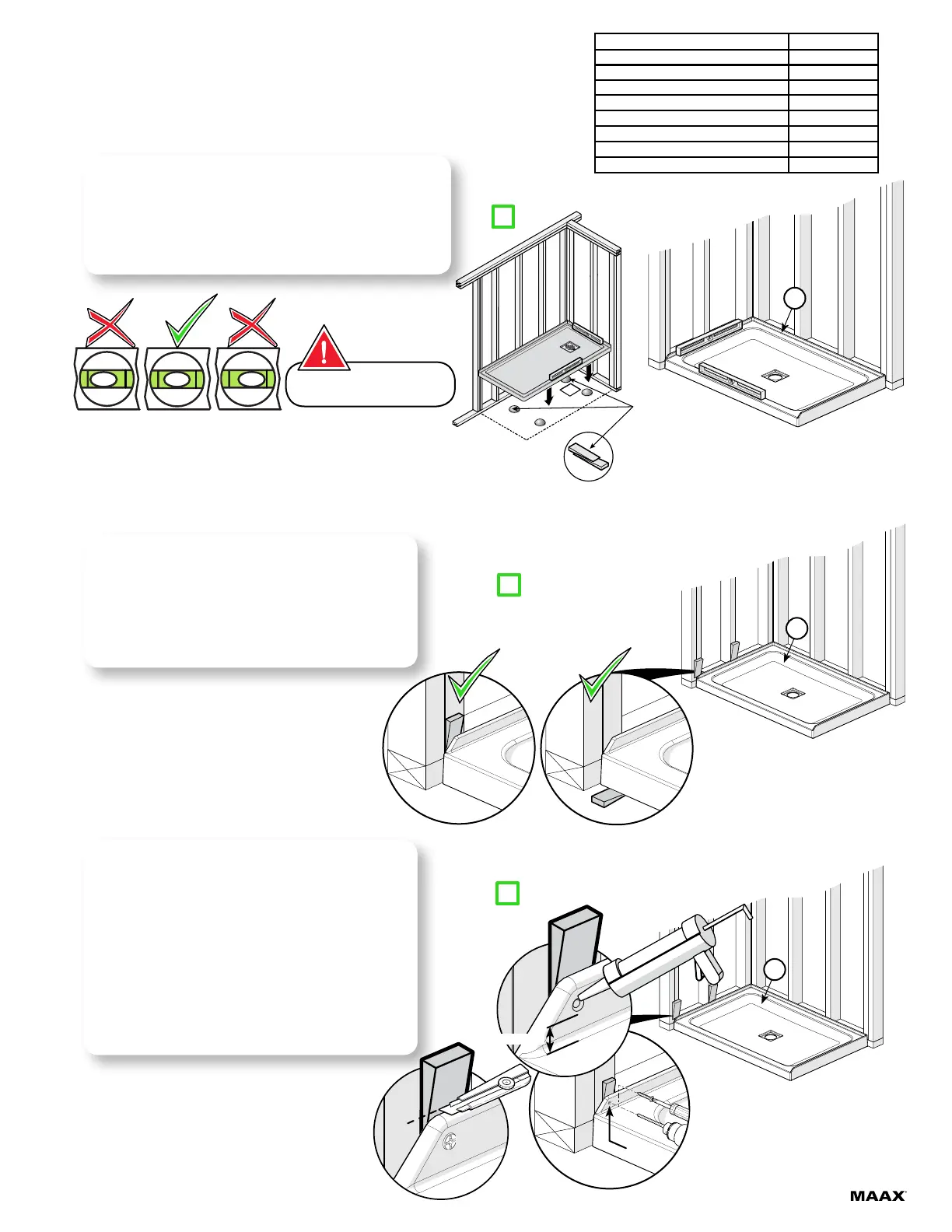

STEP Installing the base (cont'd)
B3
2.4
Check me!
2.5
Check me!
Ø 1/8"
3/8" (8 mm)
13
13
13
Lift the base. Place cement or wood shims under all legs to
support the shower base oor. Lower the shower base and
validate leveling and stability of the base on the oor. If needed,
use additional wood shims or cement.
We recommend that a plumber completes the drain pipe
connection.
2.3
Check me!
Leveling the base is critical
for wall alignment
COMPATIBLE BASES No.
B3 Square 4832 420001-5XX
B3 Round 4832 410001-5XX
B3 Square 4836 420003-5XX
B3 Round 4836 410003-5XX
B3 Square 6032 410005-5XX
B3 Round 6032 410005-5XX
B3 Square 6036 410006-5XX
B3 Round 6036 410006-5XX
Shims and
cement under
to level B3
bases
