AUDIO EQUALIZER CONTROLS MENU
Adjusting Equalizer Controls
The Equalizer adjustment screen allows the user to easily adjust the audio system to meet the
acoustical characteristics of the vehicle. The acoustical characteristics vary depending on the type
of vehicle and measurements.
For example: proper setting of the audio controls can improve the speakers frequency response to
compensate for cabin.
The Balance/Fade levels and Loudness ON/OFF option of a selected audio/video source (Disc,
Radio, USB/iPod®, AV-IN1, AV-IN2, BT) is also adjusted through the Equalizer adjustment screen.
Equalizer (EQ) (10 Band)
1. Touch the Equalizer (EQ) icon to view and select a desired preset setting (Optimal, Classic,
Rock, Jazz, Techno or Pop) or Flat setting.
Note: The equalizer will automatically change to “USER” when individual audio
functions are adjusted.

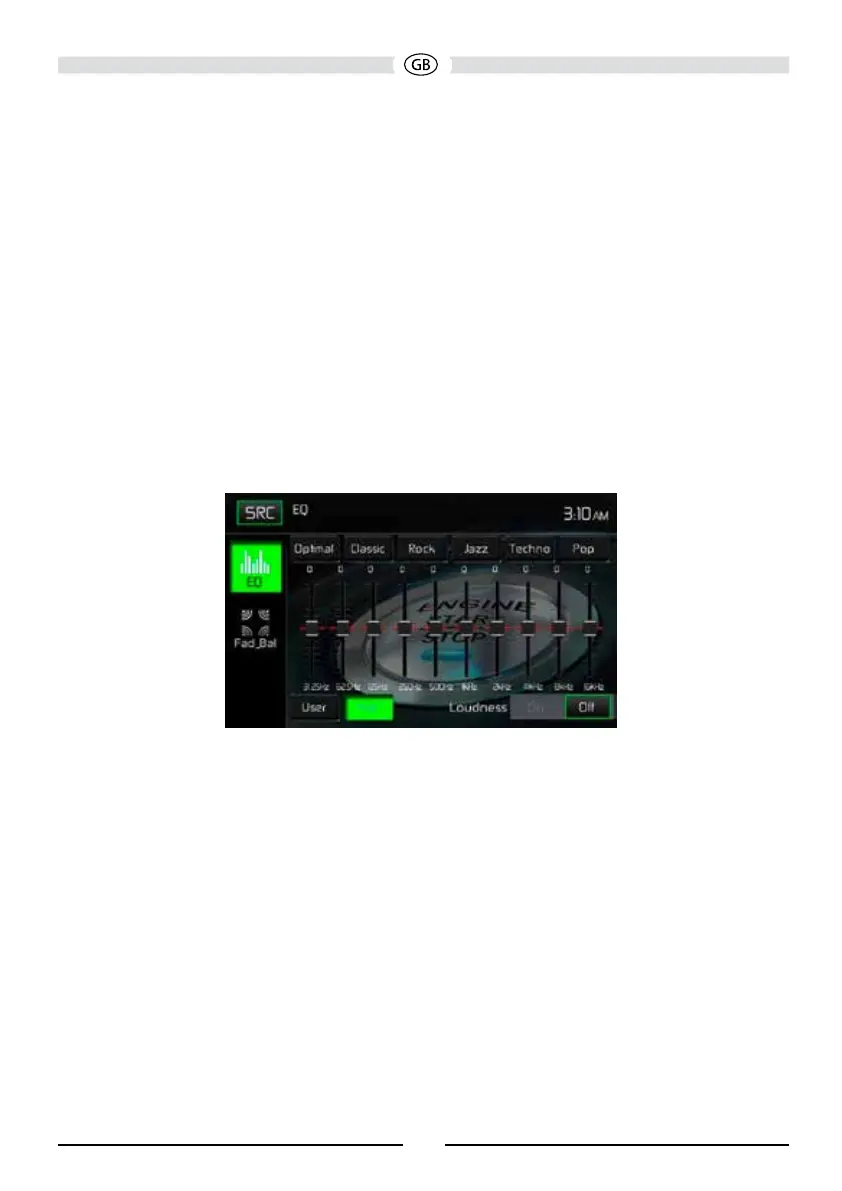

Equalizer Adjustment Screen
2. Select a desired frequency range slide bar to be adjusted (31.5, 62.5, 125, 250, 500, 1K, 2K,
4K, 8K or 16K).
3. Touch and move the slide bar Up or Down to adjust the frequency sound level settings from -10
to +10.
User Setting
Touch the User icon to customize each of equalizers 10 frequency bands.
Flat Setting
Touch the Flat icon to set the equalizers 10 band frequencies to the midpoint.
82
