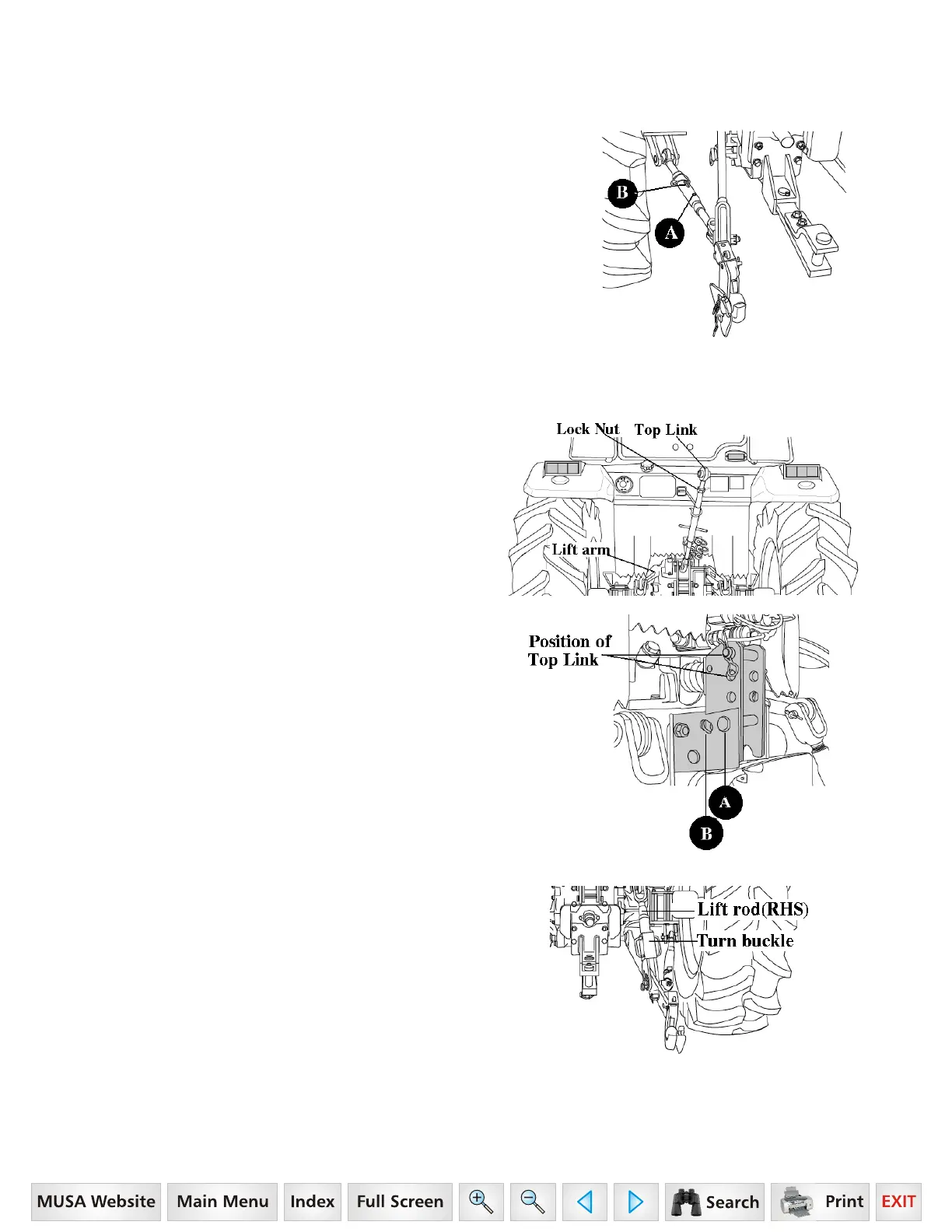

▶ADJUSTMENT OF LOWER LINK
The adjustment is done with the adjusting handle on the
Right hand yoke rod
To shorten it wind the handle clockwise and to lengthen
it wind it anti-clockwise.
When adjusted correctly hold the turn buckle with the
stopper provided.
▶Telescopic stabilizers adjustment
The stabilizers are intended for limiting or preventing
implement side movement.
There should be no clearance(Position A) during implement
transport and when working with grades,rollers
mowers,seeders,drills and similar implements.However,a slight
play is necessary(Position B) when working with
ploughs,Harrows,ditchers,cultivators and the like:that is when
working with “draft control”.The length of stabilizers is
adjusted by removing the pin and rotating the turn buckle barrel
by which the threaded ends are interconnected.
▶ADJUSTMENT OF THE TOP LINK
Lengthening or shortening the top link will
change the angle of the implement.
The locating hole of the top link varies with
the type of implement used.
The most common locations are the 1st and
2nd hole from the top
44
1) For general implement :Use the Pin to “A: point
2) For Draft control :Use the Pin to “B”point
