SYSTEM CONFIGULATION
1.The heating system consist of two units:
1-Electric heater and blower unit installed behind roof console.
2-Power supplying set, consisting of an auxiliary alternator located front of the engine
and driven by a belt directly linked to the engine pulley.
If the air does not come out from the diffusers right away as soon as the system is started, turn
off immediately and identify the fault.
N.B-Never turn on the heating system when working in dusty environments.
81
Compressor belt adjustment
Check the compressor belt tension regularly and
adjust If required.
The correct tension is if the center of the belt is
Pushed With a finger it moves in approx. 10 mm
(0.39 in)as shown in the picture.

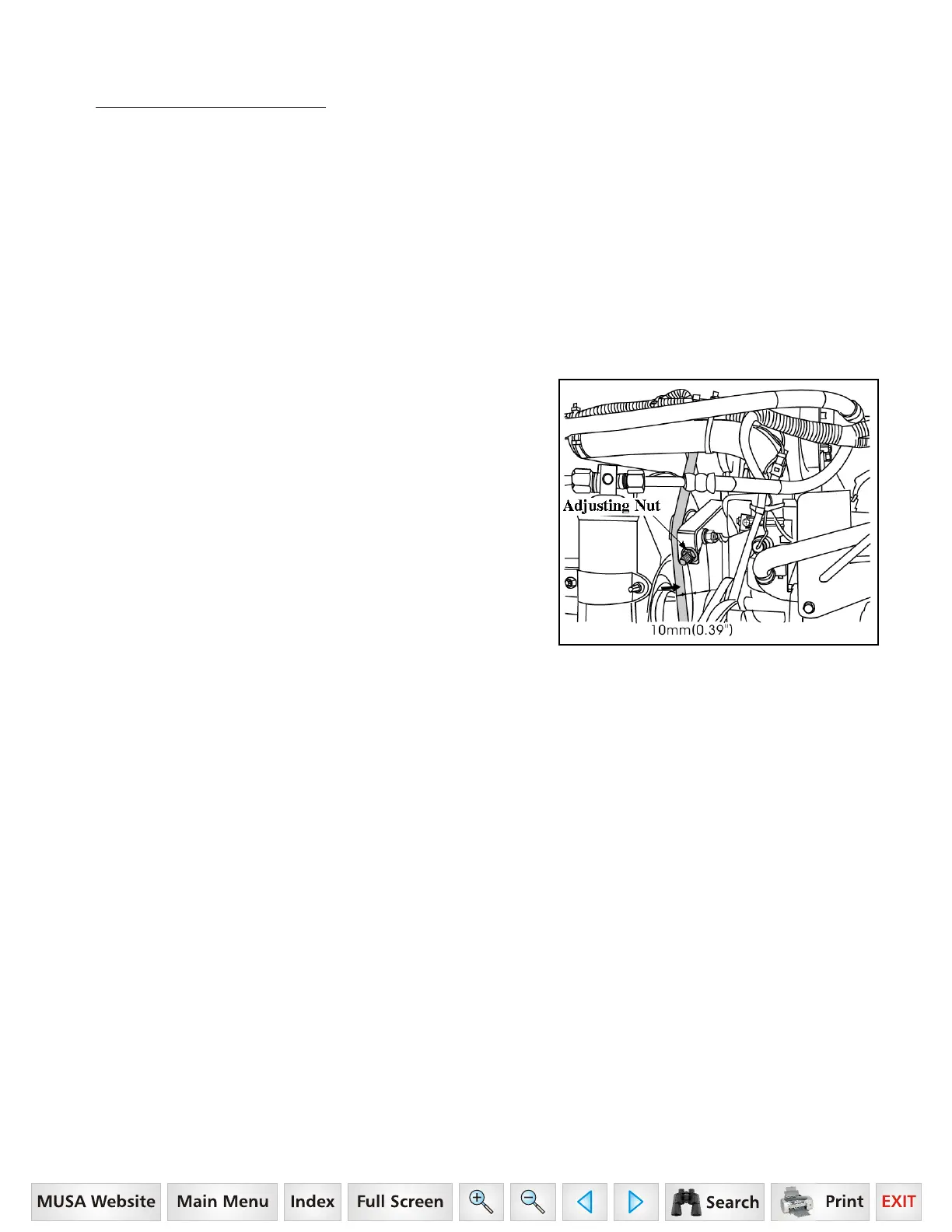

To adjust the belt, loosen or tighten the nut as shown
in the picture.
