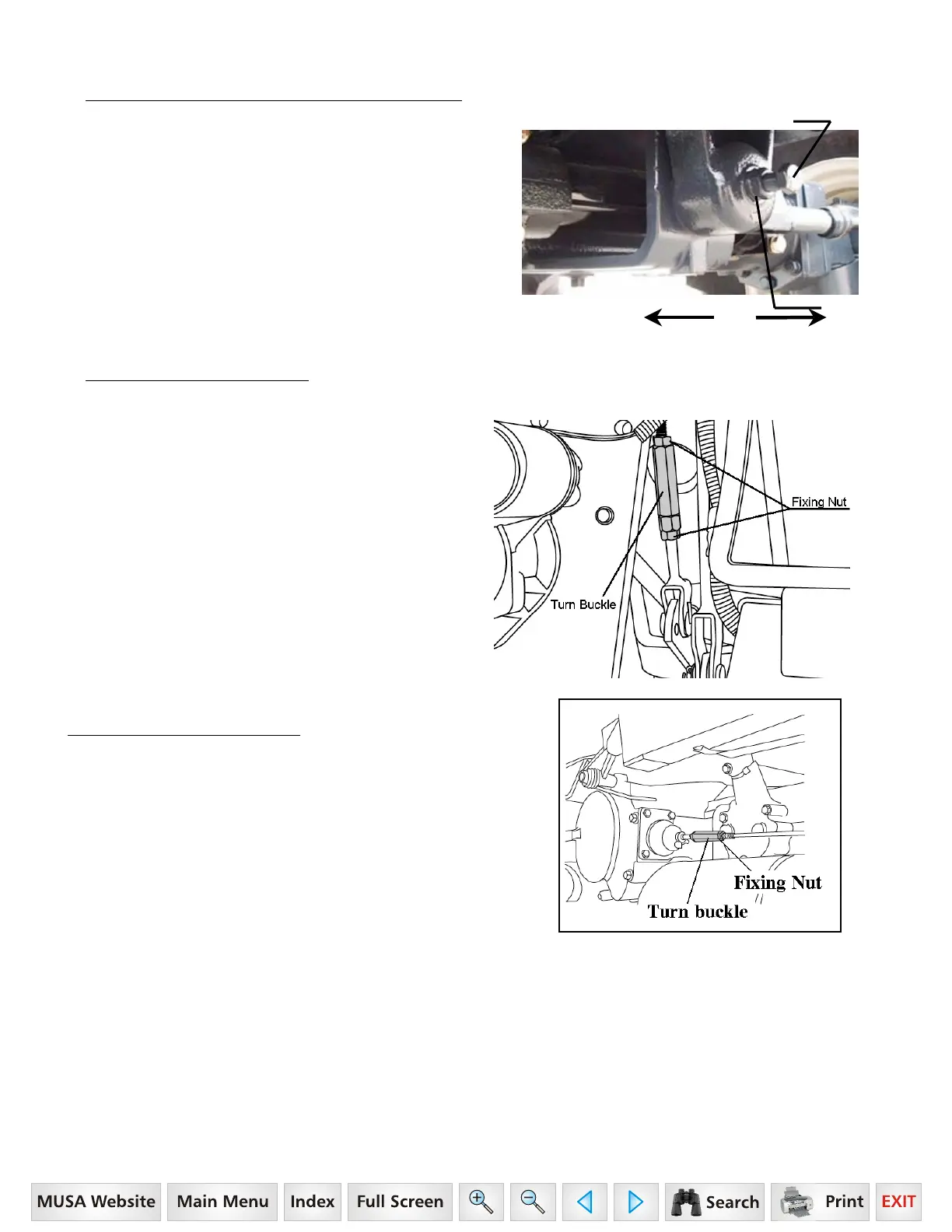

GAP ADJUSTMENT ON THE FRONT AXLE
Lift the front with a hydraulic jack to get the wheels of
the ground.
Then loosen the nut and tighten the bolt fully and turn
the bolt ½ to loosen again in order to roll the center
pivot metal freely and tighten the nut again.
While the wheels arte still off the ground, move the
axle on the center pivot as a final check that the gap is
set correctly on the top of the pivot metal
Front axle
Backward Forward
Nut
Bolt
ADJUSTING THE CLUTCH
Using the clutch over a period of time will increase the
free play.
The correct free play of the pedal is 0.78~1.18 in
To adjust, loosen the locknut on the turnbuckle and
adjust.
Check the adjustment and tighten the locknut if the
free play is correct.
ADJUSTING THE BRAKES
As is the case with the clutch, use of the brakes will
change the pedal free play and the balance between
the right and left pedal.
The correct pedal free play is 1.18~ 1.57 in
▶Adjustment method.
Loosen the locknuts at each end and turn the rod to adjust the brake.
Turning it anticlockwise increases the free play, clockwise decreases it.
Tighten the locknuts.
Check that the free play is correct and the same on both pedals to ensure even braking
