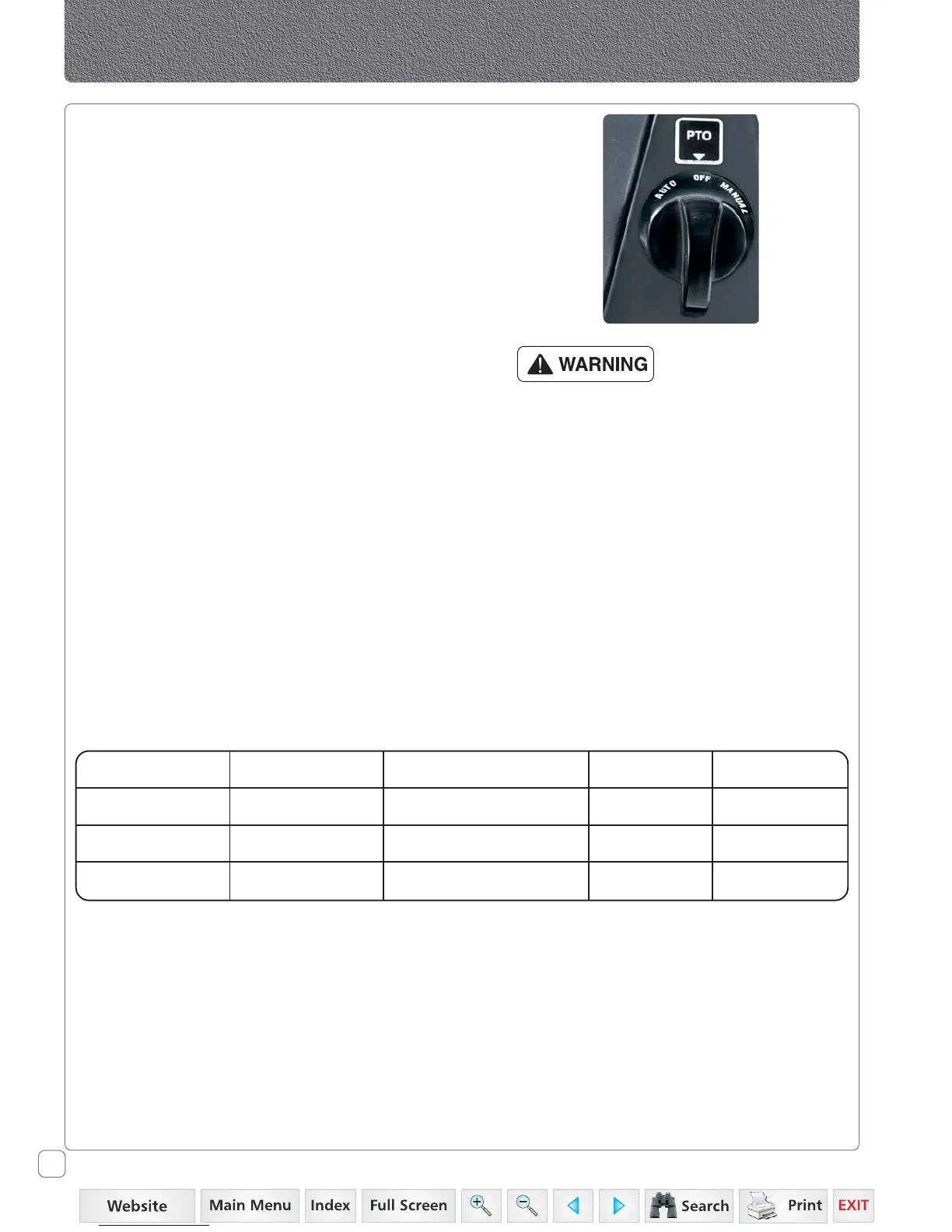

Switches
3. Alignment of Manual-mark with pointer - Operates
Manual mode
This switch can be used when the “PTO Engage - Disengage
Switch” is in ON position.
Keeping this switch in MANUAL-POSITION, will FORCE the
PTO shaft rotation in RAISED as well as LOWERED position
of implement. The “PTO Engage - Disengage Switch” will be
CONTINUOUSLY-GLOWING when this switch is in MANUAL
mode.
While the PTO is in MANUAL-MODE, some
inadvertent movement of personnel near the
PTO shaft can prove fatal.
POWER TAKE OFF
PTO is operated electrically. PTO can be operated by using
a combination of “PTO Engage - Disengage Switch” and
“PTO Mode Switch”.
After switching ON the “PTO Engage - Disengage Switch”
the operator has a CHOICE to select AUTO or MANUAL
MODE through “PTO Mode Switch”.
The PTO will turn-Off if the “PTO Engage - Disengage
Switch” or “PTO Mode Switch” is in OFF position.
Refer table shown for combinations of PTO Operations.
PTO
ON / OFF Switch
PTO
Control Switch
PC Lever PTO Switch PTO Shaft
ON Manual Mode Either raised or lowered Glows Rotates
ON Auto Mode Raised Blinks Stationary
ON Auto Mode Lowered Glows Rotates
