Controls
Loader

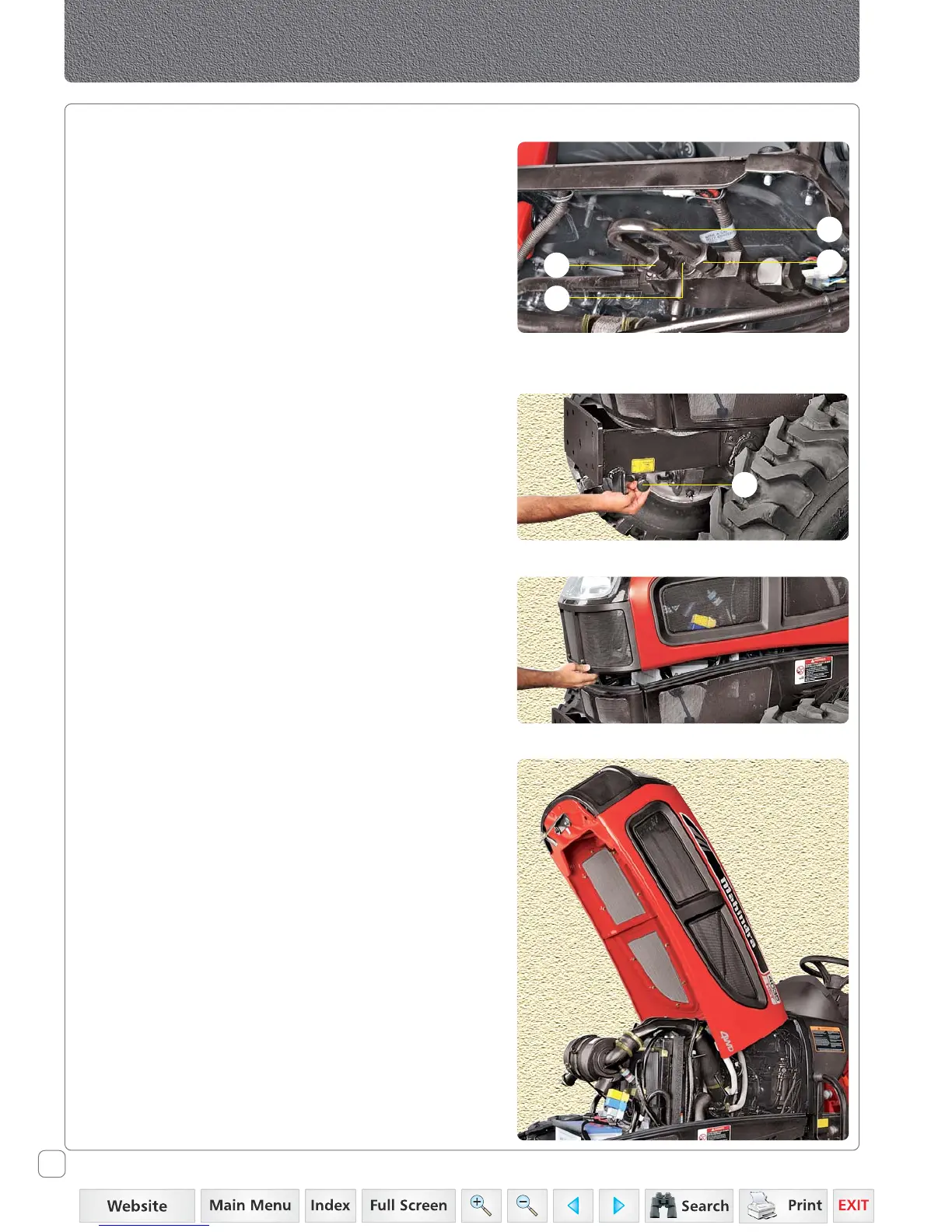

An easy option of connecting the loader valve is provided
and the same can be connected as follows :
1. Remove the U-Tube (A) from elbows (B) and (C).
2. Connect pressure line of Loader valve to elbow (B).
3. Connect High Pressure Carry-Over line (HPCO) of Loader
valve to elbow (C).
4. Remove the plug from adapter (D).
Connect tank line of Loader valve to adapter (D).
Opening the Hood
Hood is hinged at rear side, near the fire wall (at junction
of bonnet and firewall) and opens towards operator as
follows:
1. Pull the knob (E). The hood will unlock.
2. Lift the hood upwards by hand. A gas spring provided
inside will assist in minimising the effort for lifting.
Closing the Hood
1. Ensure that side panels are properly locked.
2. Press the hood downwards till it gets locked.
