35 Series-HST, Model - 3535, 4035, 4535 & 5035
77
Toe-in Setting

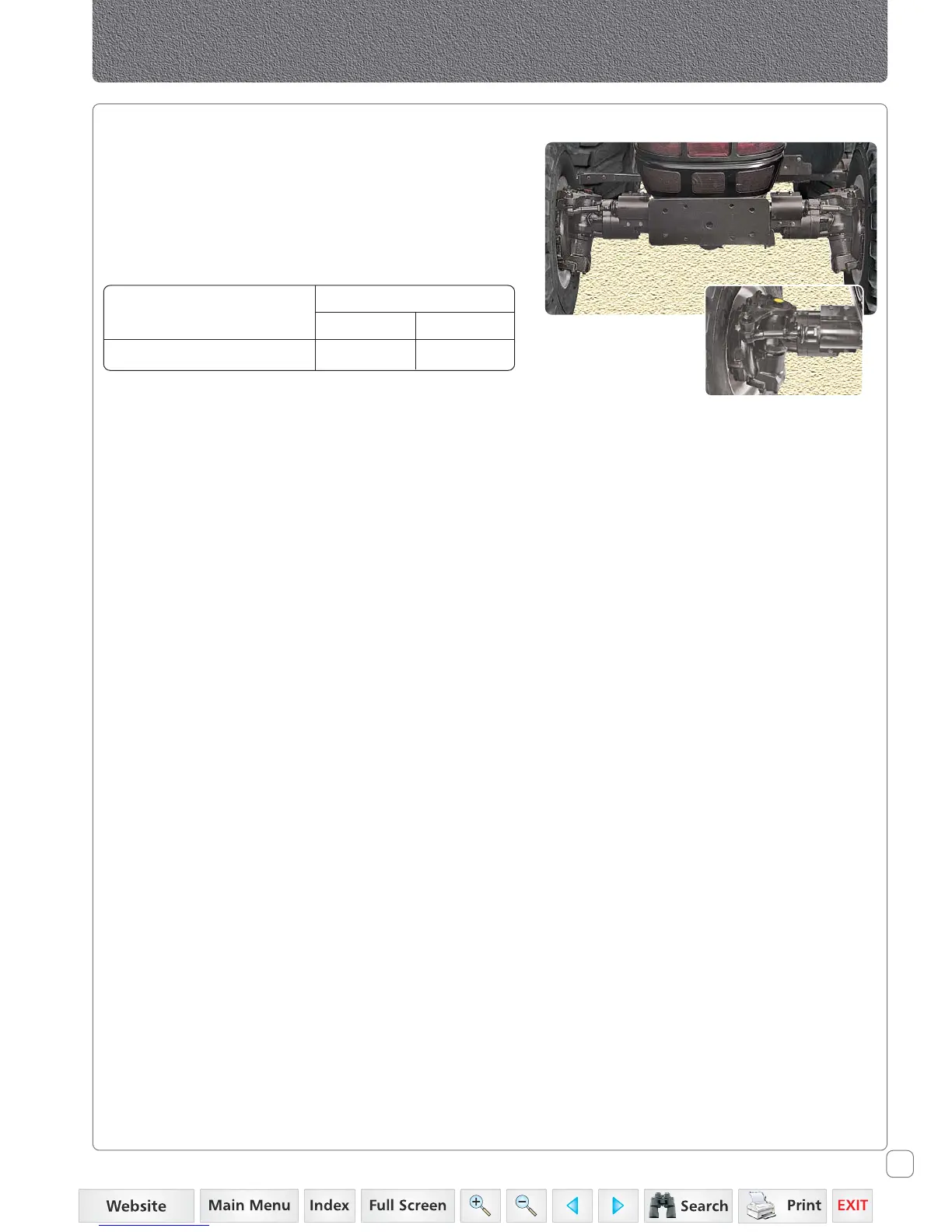

Front Axle - Front Wheel “Toe-in” Check
In the event of the tie rod setting being interfered with,
it is necessary to adjust the TOE-IN. Before measuring and
adjusting the TOE-IN, ensure the front wheels are in the
straight ahead position and the front axle is not tilted.
After adjusting the front wheel tread and with all
connections secured, the front wheel Toe-in shall be as
follows,
Measure the distance between the outer edges of the
wheel rims at the same height as the hub caps. Mark the
point measured and turn the wheels half revolution so that
the marked points are at the rear. Measure again the
distance between these two points and this distance must
be the same as measured before without variance. To adjust
the TOE-IN shorten or extend the tie rod clockwise or
anti-clockwise.
Toe-in Value
inch. mm.
3535 / 4035 / 4535 / 5035 0 - 0.23 0 - 6
MODEL
