35 Series-HST, Model - 3535, 4035, 4535 & 5035

Position Control - Operation

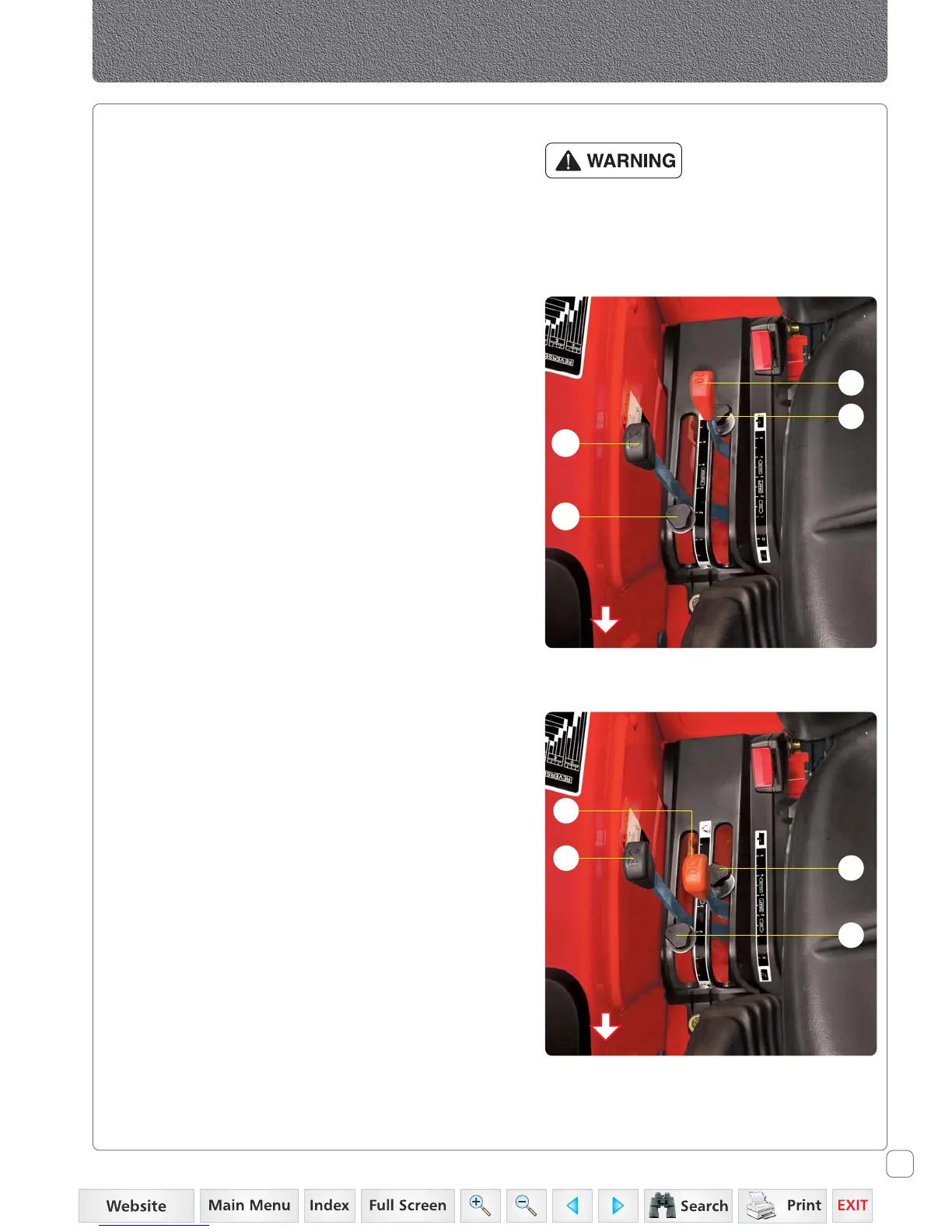

Quadrant Assembly

This system incorporates a Position control and a Draft

control. Both these controls are within easy reach of the

operator.

Position Control

This lever (D) controls the lifting and lowering of all

implements used on the three point linkage.

1. Moving the lever Forward will lower the implement.

2. Moving the lever Rearward will raise the implement.

The control can also be set by PC stop screw (C) to govern

the height of out-of-ground implements such as mowers,

rakes etc., so that the implement can be lowered to exactly

the same height at the commencement of each turn.

PC lever (D) should be used for the following applications:

1. TRANSPORT of implements and turn around at the end

of the field.

2. CONSTANT DEPTH of implements on level terrain and

for non-ground engaging implements such as spreaders

or sprayers. Place the PC lever at desired depth.

Setting of Position Control

1. Move the DC lever (A) to its forward most position.

2. Move the PC lever (D) back to the upper limit and allow

the implement to lift fully.

3. Move the PC lever (D) forward until the implement has

reached the desired working height.

4. Set the position control stop screw (C) against the PC

lever and tighten the knob.

Whenever the PC lever is returned to the front position till

the stopper, the implement will return to the same preset

height.

The operator must be thoroughly acquainted

with the location and use of all controls

regardless of experience, must read this section

carefully before attempting to operate the

tractor.
