Makita DTR180 Original Instructions

14 ENGLISH

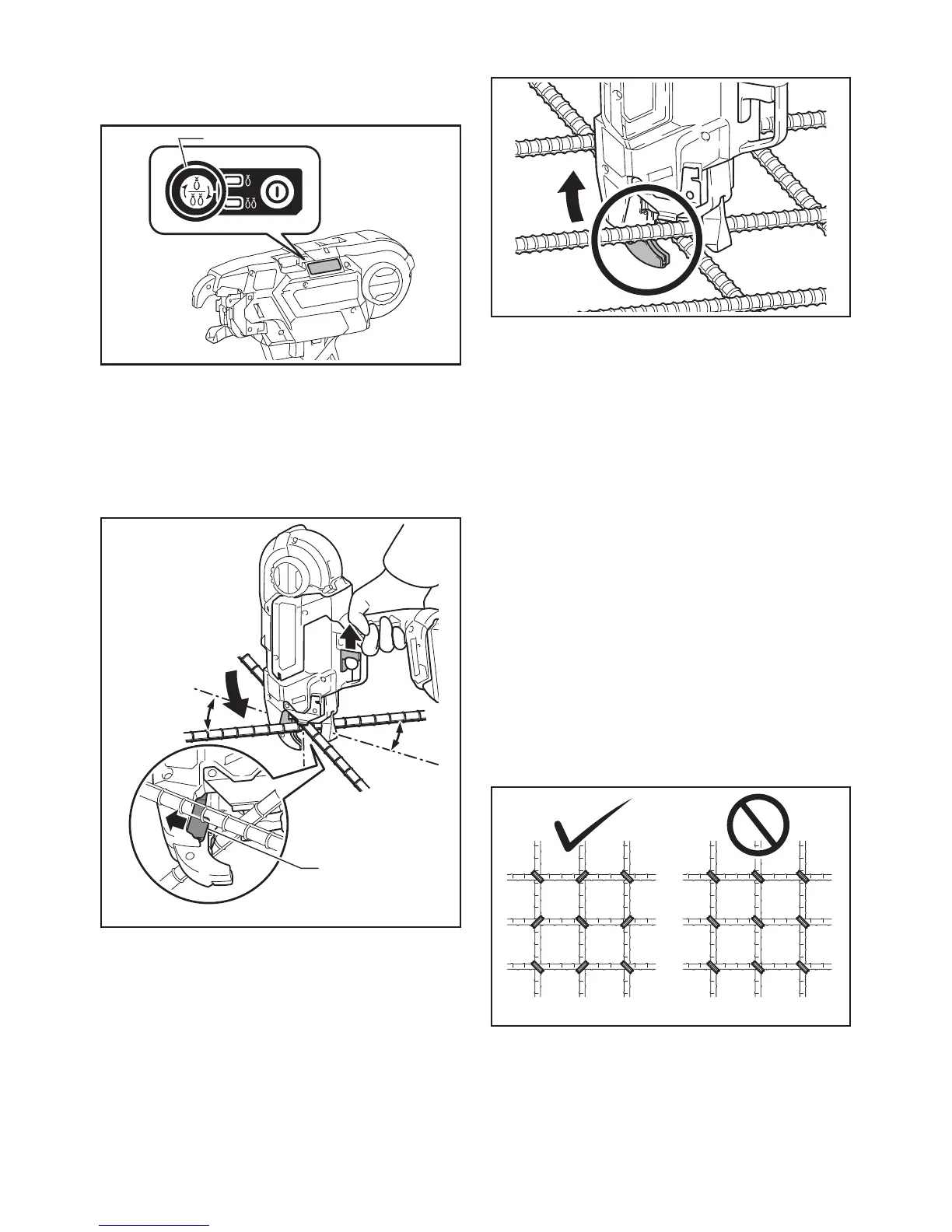

Continuous actuation mode
1. Switch the tool mode from the single actuation
mode to the continuous actuation mode using the mode
switching button.
1
►1. Mode switching button
2. Release the trigger lock.
3. While pulling the switch trigger, push the tool
vertically against the rebars, and press the arm against
the point where the rebars cross at a 45-degree angle.
Pressthecontactplatermlyagainstthetyingpoint.
The wire will be tied.
1
45°
45°
►1. Contact plate
4. After tying, exercise care not to hook the arm on
the rebars and pull the tool up.
Cautions on working
• If you move the arm from the tying position during
the wire tying process, the wire will get stuck on
the hook, which may lead to incorrect tying.
• Keep pressing the tool against the rebars until the
wire tying process is completed.
• Do not move to the next tying point until the cur-
rent wire tying process is completed.
• The tool tip rotating part (hook) twists the wire
duringthewiretyingprocess.Holdthegriprmly
so that your body is not pulled by the tool.
• Do not touch the wires during the wire tying
process.
• If you are repeating the wire tying processes in
thesingleactuationmode,fullyreleaseyournger
from the switch trigger. Then, continue to operate
the switch trigger.
• If you pull the switch trigger when there is no tie
wire left, an error is displayed. Replace with a new
tie wire and restart the tool.
Tying tips
• Tilt the tool at a 45° angle to the crossed rebars,
andtiealternatelyasshowninthegure.

Makita DTR180 Specifications

General

Type	Rebar Tying Tool
Battery Type	18V LXT Lithium-Ion
Voltage	18V
Vibration	2.5 m/s²
Wire Tie Speed	0.8 seconds per tie
Ties per Charge	Up to 5, 300 ties
Net weight	2.6 kg
Tie wraps per coil	120 ties
Number of ties per coil	100
Tool Length	320 mm
