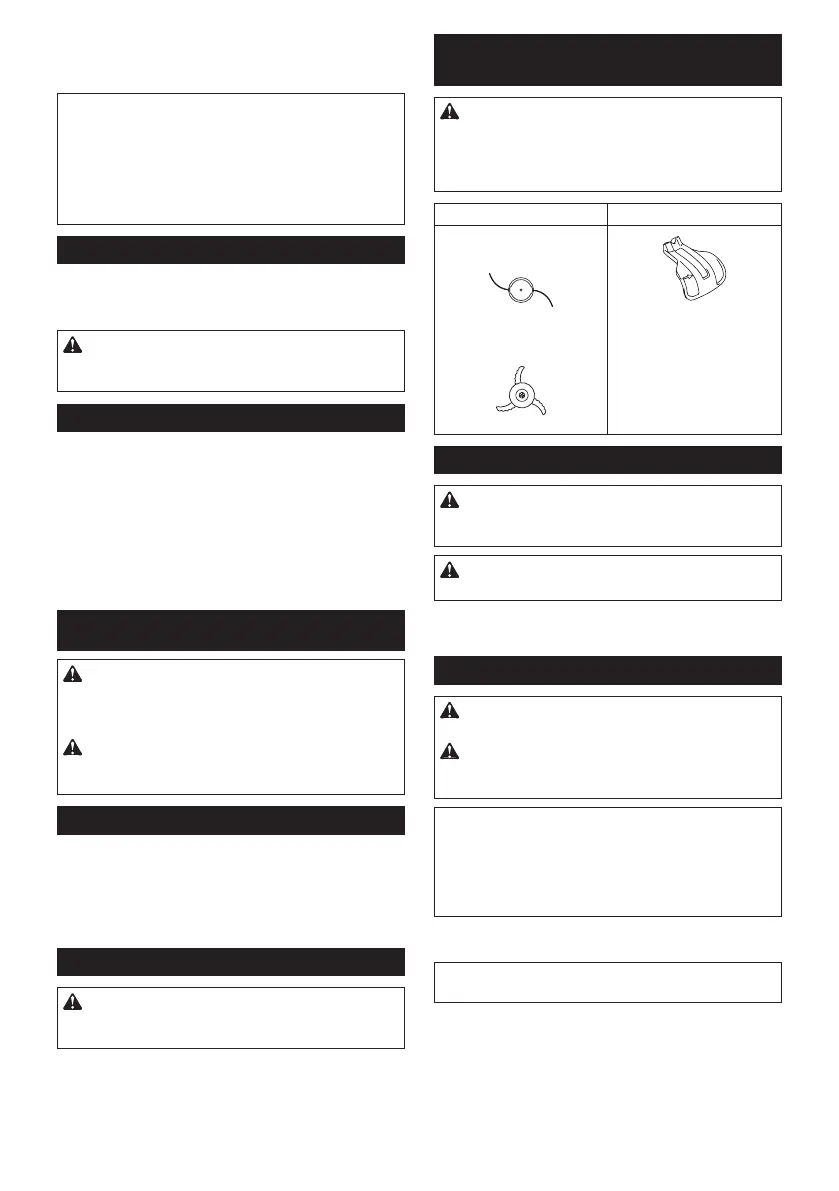

16 ENGLISH
To return to regular rotation, release the trigger and wait
until the cutting tool stops.
Fig.9:
1. Speed indicator 2. ADT indicator 3. Reverse button
NOTE:
During the reverse rotation, the tool operates only
for a short period of time and then automatically stops.
NOTE: Once the tool is stopped, the rotation returns
to regular direction when you start the tool again.
NOTE: If you tap the reverse button while the cutting
tool is still rotating, the tool comes to stop and to be
ready for reverse rotation.
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after the switch trigger
is released, have the tool serviced at our service center.
CAUTION:
This brake system is not a substitute for
the protector. Never use the tool without the protector. An
Electronic function
Constant speed control
The speed control function provides the constant rota-
tion speed regardless of load conditions.
Soft start feature
Soft start because of suppressed starting shock.
ASSEMBLY
WARNING:
and battery cartridge is removed before carrying out any work
on the tool.
WARNING:
Never start the tool unless it is completely
assembled. Operation of the tool in a partially assembled state
Installing the handle
1. Attach the upper and lower clamps on the damper.
2.
hex socket head bolts as illustrated.
Fig.10: 1. Hex socket head bolt 2. Handle 3. Upper
clamp 4. Damper 5. Lower clamp
Hex wrench storage
CAUTION: Be careful not to leave the hex
wrench inserted in the tool head. It may cause
When not in use, store the hex wrench as illustrated to
keep it from being lost.
Fig.11: 1. Hex wrench
Fig.12: 1. Hex wrench
Correct combination of the cutting
tool and the protector
CAUTION: Always use the correct combi-
nation of cutting tool and the protector. A wrong
combination may not protect you from the cutting tool,
-
Cutting tool Protector
Nylon cutting head
Plastic blade
Installing the protector
WARNING: Never use the tool without the
guard illustrated in place. Failure to do so can
CAUTION: Take care not to injure yourself on
the cutter for cutting the nylon cord.
Attach the protector to the clamp using bolts.
Fig.13: 1. Clamp 2. Protector 3. Cutter
Installing the cutting tool
CAUTION: Always use the supplied wrenches
to remove or to install the cutting tool.
CAUTION: Be sure to remove the hex wrench
inserted into the tool head after installing the
cutting tool.
NOTE: The type of the cutting tool(s) supplied as
the standard accessory varies depending on the
countries. The cutting tool is not included in some
countries.
NOTE: Turn the tool upside down so that you can
replace the cutting tool easily.
Nylon cutting head
NOTICE: Be sure to use genuine Makita nylon
cutting head.
Fig.14: 1. Nylon cutting head 2. Spindle 3. Hex
wrench 4. Loosen 5. Tighten
1. Insert the hex wrench through the hole in the gear
case to lock the spindle. Rotate the spindle until the hex
wrench is fully inserted.
2. Place the nylon cutting head onto the spindle and
tighten it securely by hand.
