Makita EK7301 User Manual

12

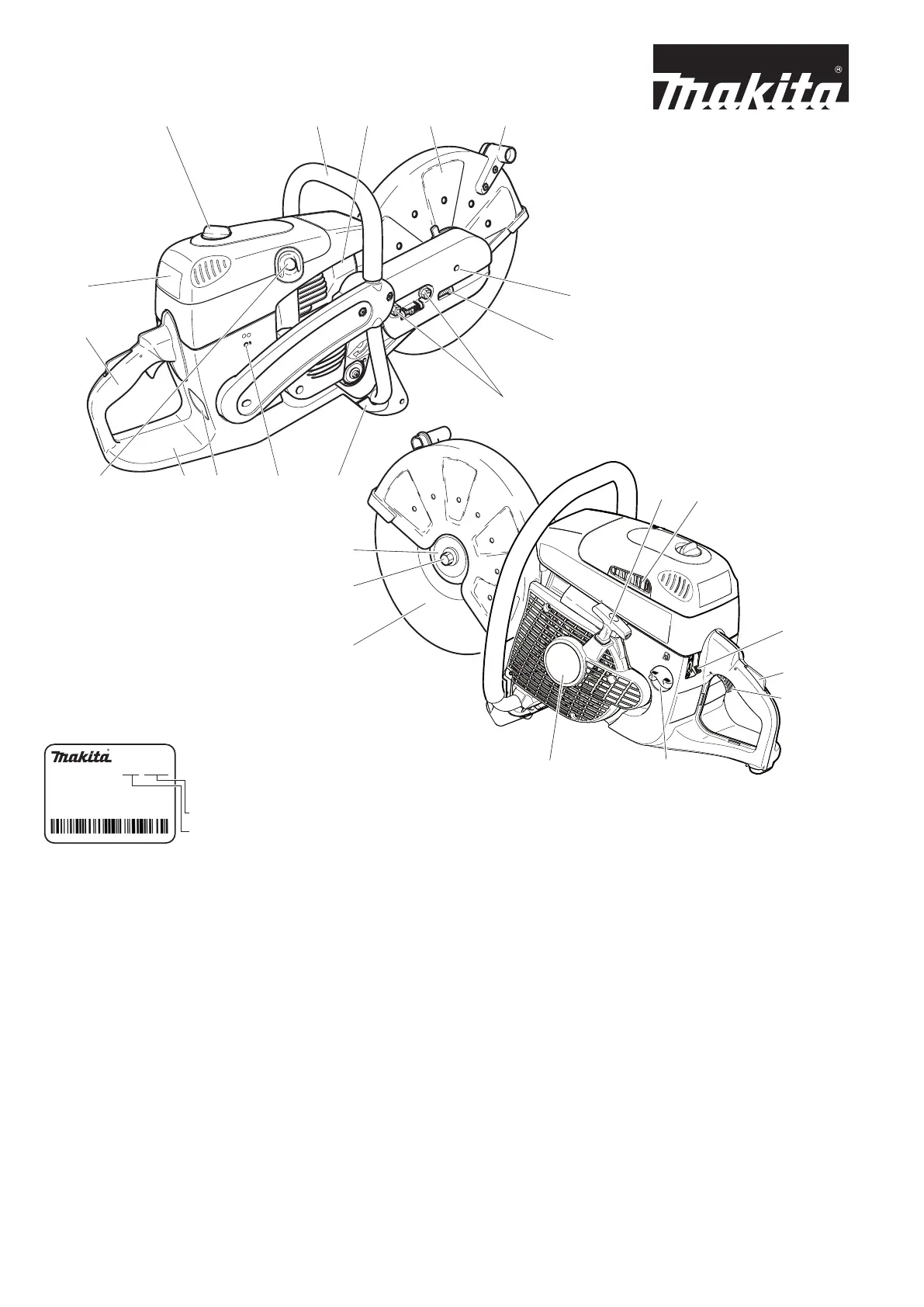

Denomination of components
1 Handle
2 Filtercoverforairlterandsparkplugcap
3 Cover lock
4 Tubular handle
5 Mufer
6 Protection hood
7 Grip
8 V-belt tension adjusting screw
9 Retaining nuts
10 Stand
11 Carburetor adjustment opening
12 Identicationplate
13 Fuel tank with handle
14 Decompression valve
15 Starter grip
16 Air intake
17 Combinationswitch„Choke,Start/Stop(I/O)”
18 Safety locking button
19 Throttle lever
20 Tank cap (fuel)
21 Starter housing with starter
22 Cutting disc
23 Disc bolt
24 Spring washer
25 Hold opening
Serial number
Year of manufacture
Identication plate (12)
Indicate when ordering spare parts
1
2
3 4 5 6 7
8
25
9
1012 111314
24
23
17
22
18
19
20
21
15
16
EK7301
2014 123456
XXX.XXX.XXX Typ XXX
Makita Corporation, Anjo, Aichi, Japan
Made in Germany

Makita EK7301 Specifications

General

Blade bore	25.4 mm
Blade diameter	350 mm
Idle speed (max)	4300 RPM
Sound power level	109 dB
Cutting depth (90º)	122 mm
Sound pressure level	99.6 dB
Engine type	2-stroke engine
Engine power	5.2 hp
Fuel tank capacity	1.1 L
Vibration emission	7 m/s²
Engine displacement	73 cm³
Motor power	5.1 hp
Power source	Gasoline
Motor rated power	3.8 kW
Torque (max)	4.3 N⋅m
Maximum speed	80 m/s
Product color	Black, Blue
Mix ratio (fuel:oil)	50:1
Anti-vibration system	Yes
Engine number of strokes	2
Air filtration stages quantity	5

Weight and Dimensions

Depth	770 mm
Width	290 mm
Height	370 mm
Weight	10000 g
