Makita EK7301 User Manual

27
Diamond cutting discs (1)
MAKITA diamond cutting discs meet the highest demands
in working safety, ease of operation, and economical cut-
ting performance. They can be used for cutting all materials
except metal.
The high durability of the diamond grains ensures low wear
and thereby a very long service life with almost no change in
disc diameter over the lifetime of the disc. This gives consistent
cutting performance and thus high economy. The outstanding
cutting qualities of the discs make cutting easier.
The metal disc plates give highly concentric running for minimal
vibration during use.
The use of diamond cutting discs reduces cutting time sig-
nicantly. This in turn leads to lower operating costs (fuel
consumption, wear on parts, repairs, and last but not least
environmental damage).
SPECIAL ACCESSORIES
Water tank (5)
The water tank is designed to be mounted on the guide trol-
ley. Its high capacity makes it especially suitable for situations
involvingfrequentsitechanges.Forllingorforfastchanging
to reserve tanks, the tank can be simply lifted off the trolley.
The water tank comes with all necessary connections and
hoses. Mounting to the trolley and Power Cut are very fast
and simple.
Mains/pressure water system (6)
The mains/pressure water system is designed to be mounted
on the Power Cut. It can be used with or without the trolley,
but is especially suitable for applications involving hand-held,
stationary cutting. The water line has a fast-release connection,
and can be fed either from a mains supply or from a pressure
tank (7).
The water system comes with all necessary connections
and lines. It can be quickly and easily mounted on the Power
Cut.
See “Accessories” for order number.

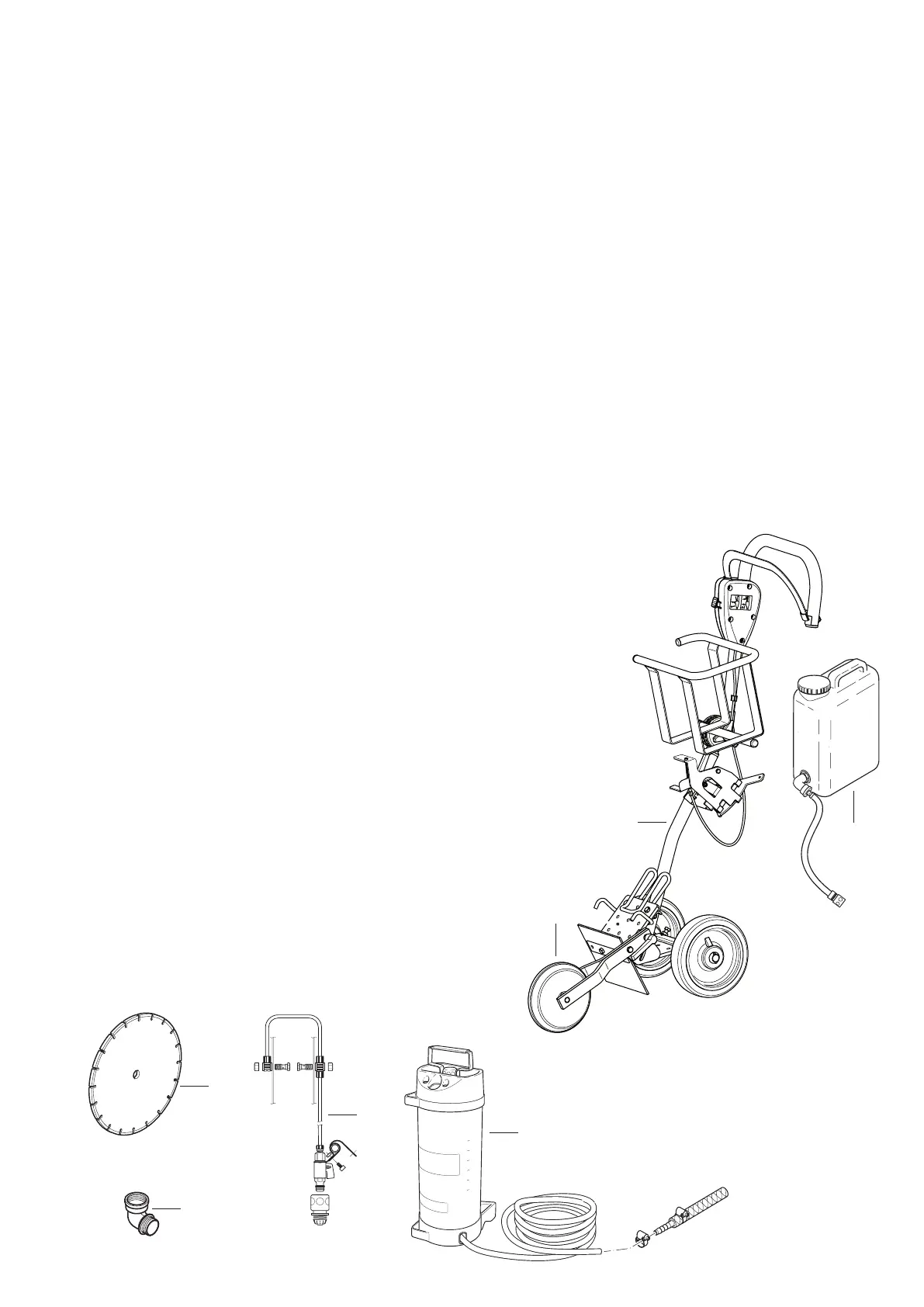

Guide trolley (2)
The MAKITA guide trolley makes it much easier to do straight
cuts, while simultaneously enabling almost untiring working. It can
be adjusted for the operator´s height, and can be operated with
the cutting attachment mounted in the middle or on the side.
NOTE: Before mounting the Power Cut on the guide trolley, it
will be necessary to remove the stand (see illustration (*) in the
chapter “Extract from the spare parts list”).
For easier refuelling when using the trolley, we recommend
addinganangledtankllerneck(3).
A depth limiter can be added for still easier and more accurate
cutting. It makes it possible to maintain a precise predetermined
cut depth (4).
To keep down dust and for better cutting-disc cooling, MAKITA
offers several options for wetting the disc during operation.
6
2
4
5
7
1
3

Makita EK7301 Specifications

General

Blade bore	25.4 mm
Blade diameter	350 mm
Idle speed (max)	4300 RPM
Sound power level	109 dB
Cutting depth (90º)	122 mm
Sound pressure level	99.6 dB
Engine type	2-stroke engine
Engine power	5.2 hp
Fuel tank capacity	1.1 L
Vibration emission	7 m/s²
Engine displacement	73 cm³
Motor power	5.1 hp
Power source	Gasoline
Motor rated power	3.8 kW
Torque (max)	4.3 N⋅m
Maximum speed	80 m/s
Product color	Black, Blue
Mix ratio (fuel:oil)	50:1
Anti-vibration system	Yes
Engine number of strokes	2
Air filtration stages quantity	5

Weight and Dimensions

Depth	770 mm
Width	290 mm
Height	370 mm
Weight	10000 g
